B230 camshafts for volvo b230 engine

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	NEWLAND GROUP;
Packing:	Neutral Packing;	SHIPPING:	DHL UPS EMS FEDEX;
Engine Code:	for volvo b230;	Car Model:	for volvo b230;
Port:	any port in China;	Material:	Chilled cast iron;1045/CF53 Billet steel/Nodular cast iron;
Quality:	Racing Performance;	Related product:	Engine Valve;
Hardness:	HRC45-60;	Place of Origin:	Sichuan China;
Warranty:	1year;	Usage:	Car Engine Parts;
Delivery:	3-15 Days;	Certification:	ISO/TS16949;
Item:	B230 Cam Shaft;

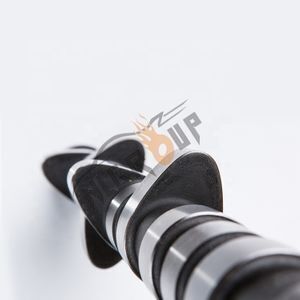

B230 cam camshaft for volvo b230 engine

1:The camshaft for B230 following size we made:
1) Max lift :14.8mm cam 1.2.3.4.5.6.7.8 base circle: 31.3mm+-0.03 cam:46.1mm+-0.03mm

2)Max lift: 11.0mm cam 1.2.3.4.5.6.7.8 base circle: 32.3mm+-0.03 cam:43.3mm+-0.03mm

3)Max lift: 11.7mm cam 1.2.3.4.5.6.7.8 base circle: 35.95 mm+-0.08 cam: 47.58mm+-0.08

4)Max lift: 12.7mm cam 1.2.3.4.5.6.7.8 base circle: 33.2 mm+-0.05 cam: 45.9mm+-0.05

5)Max lift:14.5 mm cam 1.2.3.4.5.6.7.8 base circle: 28.5mm+-0.03 cam:43mm+-0.03mm

6)Max lift :14.7mm cam 1.3.5.7 base circle:31.5mm+-0.03 cam:46.2mm+-0.03mm

cam 2.4.6.8 base circle:31.6mm+-0.03 cam:46.3mm+-0.03mm
7)Max lift:11.9mm cam 1.3.5.7 base circle: 35.5mm+-0.03 cam:47.3mm+-0.03mm

cam 2.4.6.8 base circle: 36.2mm+-0.03 cam:48.1mm+-0.03mm

Item	B230camshaft for volvo b230 engine
Material	Chilled Cast Iron / Billet
Quality	HRC 45-60
Stock Status	Please contact us
MOQ	100sets if not in stock ,5sets if in stock
