MSR Card Reader Card pos Swipe Machine

Supplier: Shenzhen Carav Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Vivien Carav
Price: $12.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Type:	SM Card;	Keywords:	card swipe machine;
Installation:	External;	Operating Life:	approx. 500,000 passes;
Interface:	USB;	Magnetic Track:	1,2,3 tracks;
Dimensions:	90mm(L) X 27mm(W) X 28mm(H);	Place of Origin:	Guangdong China;
Supply Ability:	5000 Piece/Pieces per Month;	Weight:	75g;
Model Number:	CCS-90;	Port:	Shenzhen/Hongkong;
Packaging Detail:	card swipe machine carton box;	Read type:	Magnetic;
Reference Standards:	ISO 7811,AMMVA,CADMV and other format;	Brand Name:	OEM;
Card Slots:	Single;	Interface:	USB2.0,really Plug and Play,can customize USB OTG or RS-2322;
Swipe speed:	3 ~ 60 inches per second;	Read error rate:	<0.5%;
Payment Terms:	L/C,T/T,Western Union;

MSR Card Reader Card Swipe Machine with Megtech Circuit

Product Description

Features:

Tracks of information: reads up to three
keyboard or USB HID: keyboard and USB HID optional(Customize USB OTG or RS-232)
Magnetic head: single-head(CCS90B,CCS90R,CCS90U) double-head(CCS-100B)

Reading: Bi-directional swipe
Confirmation by beep sounds: good read
Mounting: low power,consumption, power supplied by computer
Certificated: CE,ROHS, FCC
Reader: full programmable
Support: JPOS & OPOS(CCS-100D)
Systems: Windows XP, visa,Windows7,Linux,android,IOS5 and so on
Provide variety sdk: VB6.0,VC++,Activex and so on
Supports 3DES, DUKPT encryption

Name	MSR Card Reader Card Swipe Machine with Megtech Circuit
Model	CCS-90U/CCS-90R
Color	Black
Read Type	Magnetic
Interface	USB2.0,really Plug and Play,can customize USB OTG or RS-2322
Magnetic Track	1,2,3 tracks
Reference Standards	ISO 7811,AMMVA,CADMV and other format
Swipe Speed	3-60 inches per second
Operating Temperature	-20℃-60℃
Storage Temperature	-20℃-60℃
Relative Humidity	90% non-condensing
Operating Life approx.	500,000 passes
Dimensions	CCS90U/R 90mm(L) X 27mm(W) X 28mm(H) CCS100 100mm(L) X 34mm(W) X 30mm(H)
Weight	CCSS90U/R 75g(CCS-90U) 85g(CCS-90R) CCS100 85g(CCS9000B) 90g(CCS9000D)
Read error rate	<0.5%
Warranty	One-year

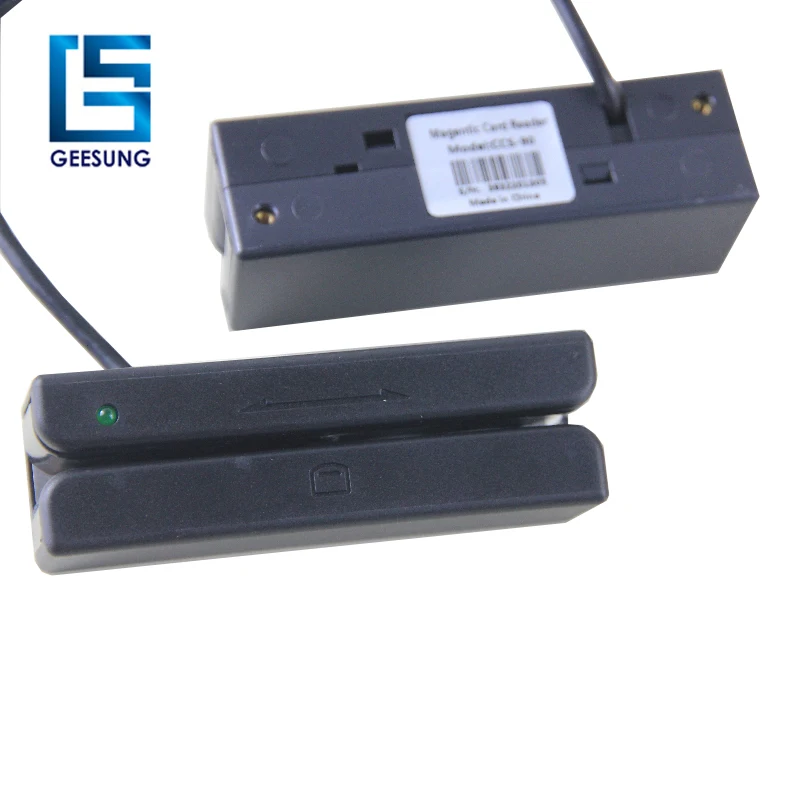

Detailed Images

Welcome to use Magnetic card reader, it is an intelligent, programmable Magnetic Stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90mm/ 100 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and LED indicator to signal a successful read.

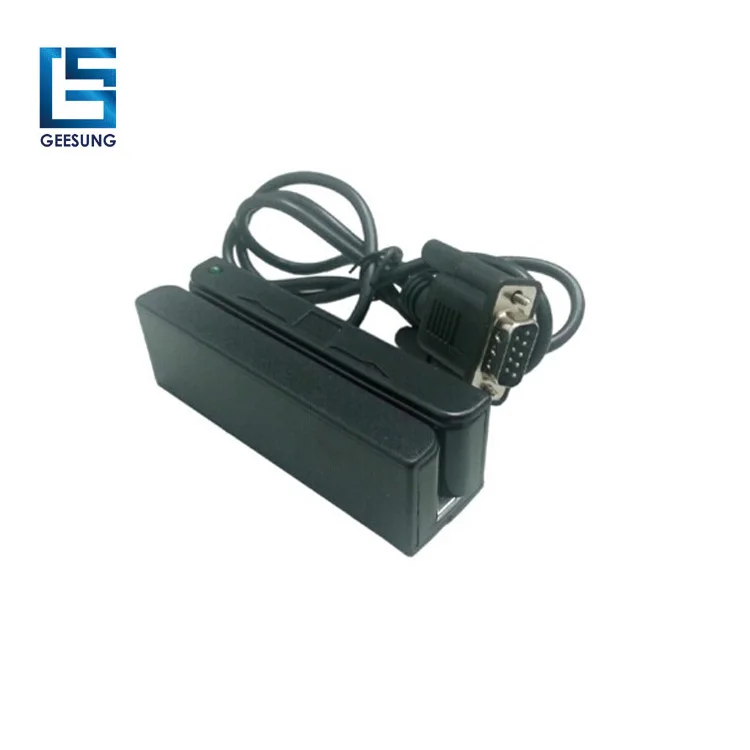

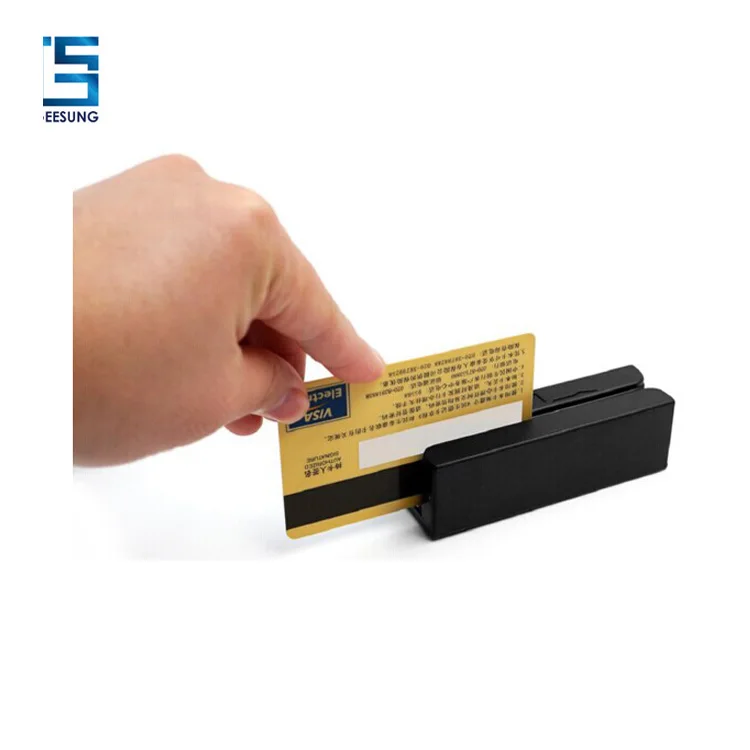

More pictures of magnetic card reader price:
