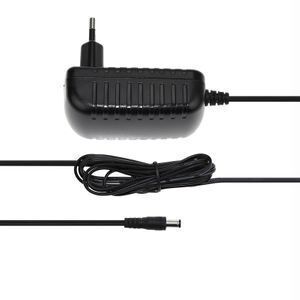

ROHS CE Certificate DVE Switching Adapter EU Plug 12V 1A AC Adapter

Click here to contact

Product details

Brand Name:	HYT or Customized;	Output Type:	DC;
Input:	AC 90~254V 47Hz~63Hz;	Output cable:	1.2M or 1.5M or Customized;
Connection:	Plug In;	Certificate:	FCC CE RoHS CCC PSE GS SAA CB KC;
Usage:	Game Player;	Keyword:	EU Plug 12V 1A AC Adapter;
Output power:	12W to 36W;	Color:	White or Black or Customized;
Output voltage:	9V to 36V;	Warranty:	3 Years;
Payment Terms:	T/T,Paypal;	Output current:	1A to 2A;
Packaging Detail:	EU Plug 12V 1A AC Adapter 1.Normal package is PE bags . 2. We can offer customized retail packing box. 3. All cartons we use is high quality carton(k=k) 4. Normal carton size: 4540.524.5cm or 454015cm;	Plug type:	US AU UK EU KC JP CN plug;
Supply Ability:	30000 Piece/Pieces per Month;	Port:	Shenzhen;
Model Number:	HYT-1201000;	Place of Origin:	Guangdong China;

Product Description

ITEM	SPECIFICATION
Input Voltage Range	AC 90~240V
Input Frequency	47Hz~63Hz
Output voltage	9V to 36V±5%
Nominal output current	1A to 2A
Nominal power	12W~36W
Efficiency	≥79%
Certificates	FCC,CE,RoHS,CCC,PSE,GS,SAA,CB,KC
Warranty	3 years long-term cooperation and long-term warranty
Optional DC plug	*2.50.7/3.51.35/4.01.7/5.52.1/5.52.5/MicroUSB/Micro5Pin/others**
DC Cable	The DC line length1.2M,1.5M,customizable
Working life	>50000hour
The noise of the ripple	≤120mV
Start delay time	≤3S(AC110V)
Work temperature	0℃-40℃
Storage temperature	-20℃- 75℃
Humidity	5%-95%
Atmospheric pressure	70 — 106Mpa
High pressure test	AC 3000V (Min), 1Min, leakage current≤5mA(AC 3750V,3S)
Insulation resistance	≥10MΩ (la presión atmosférica normal, humedad 90%, DC500V)
Input current	≤300mA(AC100V)
Dash Current	≤50A(AC240V)
Power Factor	≥0.5(AC240V, Resistencia interna<0.1Ω)
