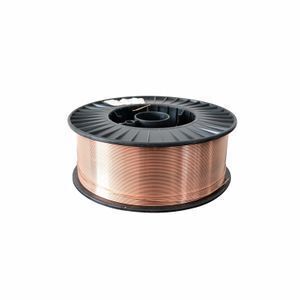

CO2 mig welding wire ER70S-6 1.2mm with high quality
-
Supplier: RHK TECH Welding Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Cathy Yu -
Price: $0.80 / >=2 pieces -
Min. Order: 2 pieces
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal for copper coated wire; | Flux Content: | International Standard; |
| Brand Name: | OEM; | Quality: | Class A for copper coated wire; |
| Place of Origin: | China; | Application: | building, pressure vessel; |
| Use type: | mig torch for copper coated wire; | Model Number: | ER70S-6; |
| Melting Point: | Standard Melting Point; | Port: | shanghai Qingdao ningbo tianjin port; |
| Dimensional tolerances: | 0.01-0.02mm; | Packaging Detail: | 15kg/spool , 72spool /pallet 22pallets/20ft container for copper coated steel welding wire ER70S-6; |
| Packing: | 1Kg /5Kg/10Kg/15Kg/20Kg; | Weight tolerances: | 0.05kg/spool; |
| Product name: | co2 mig welding wire scrap copper ER70S-6 1.2mm; | Expansion index: | ≥300mm; |
| Copper width: | 0.03micrometer; | Weight: | 1kg,5kg,15kg,17kg,18kg,20kg; |
| Supply Ability: | 5000 Ton/Tons per Month; | spool materials: | plastic/ metal for copper coated wire; |
| Raw materials: | Qingdao steel Bao steel Zhongtian steel; |
| Certificate | CE ISO9001, ABS,LR,CCS,DB ,TUV.etc |
| Packing Details | Packing Size: 275mm* 275mm* 105mm 300mm*300mm*105mm Outer Packing:1spool/ctn Every spool product is strongly packed by carton box with antirust paper inside. Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft |
| MOQ | 1 Pallet |
| Warranty | 1 year |
| Payment | T/T,L/C,D/P, Western Union |
Features:
ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.
Application:
Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.
Conform with:
GB/T ER50-6 DIN SG2 JIS YGW12
AWS ER70S-6 BS A18 EN G3Si1
| Package | ||
| Specificaton | Wire Tray | Weight |
| Φ1.0~1.6mm | D100mm D200mm D270mm D300mm K300mm | 1kg 5kg 20kg 250kg |
| Wire Chemical Composition(%) | |||||||
| C | Mn | Si | P | S | Cr | Ni | Cu |
| 0.06~0.15 | 1.40~1.85 | 1.80~1.15 | ≤0.025 | ≤0.035 | - | - | ≤0.50 |
| Deposited Metal Mechanical Properties | |||
Yield Strength σ0.2(Mpa) | Tensile Strength σb(Mpa) | Elongation δ5% | AKV Imapact Energy (J)(-40℃) |
| ≥420 | ≥500 | ≥22 | ≥90 |
| Diameter of wire(mm) welding current(A) | |||
| Φ1.0 | Φ1.2 | Φ1.4 | Φ1.6 |
| 40~140 | 50~220 | 80~350 | 120~450 |
| Matters needing attention: |
1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package. 2.Welding shall be removed before welding surface oil, rust,water and other impurities. 3.The CO2 gas protection, CO2gas purity 99.98%. 4.CO2 welding protective gas flow rate should be controlled at 20~25L/min. 5.Wire extension length should be controlled in the range of 15~25mm. |
Packing Size: 275mm* 275mm* 105mm or 300mm*300mm*105mm
Outer Packing:1 spool/ctn.Every spool product is strongly packed by carton box with antirust paper inside.
Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft

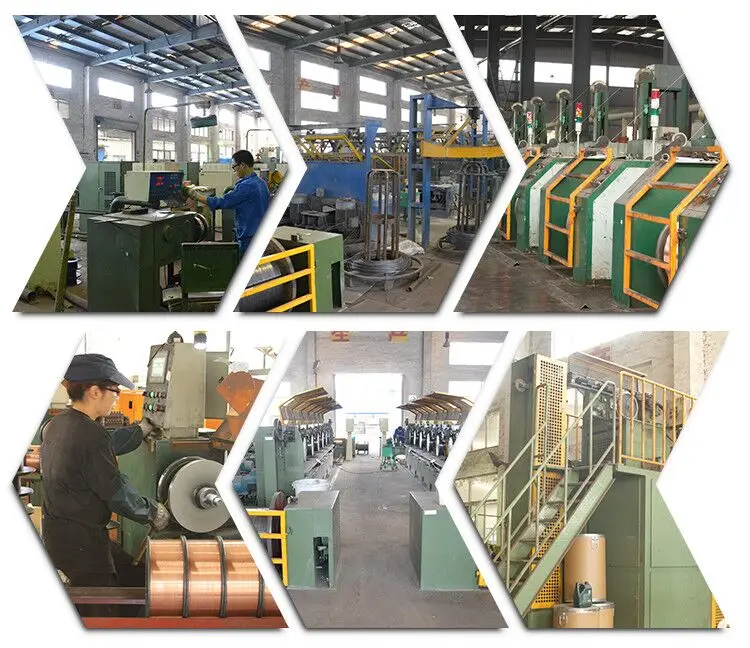

RHK TECH was established in 2011 as a professional partner of European distributors.
With extensive experience in manufacturing industry, We gradually grow into the best provider of welding consumables, labour protection products, abrasives and other welding related products for steel fabrication, shipyard and so on.
RHK offers rapid and accurate quotation, high quality products, timely delivery, and excellent after-sales service.
Our aim is to achieve reciprocity and mutual benefit with customers.
Q1:Can I have a sample for testing?
A: Yes, we can support free sample
Q2:Can I add my logo on the boxes/cartons?
A:Yes,OEM and ODM are available from us.
Q3: Waht are the benefits of being a distributor ?
A: Special discount Marketing protection
Q4:Do you have inspection procedures for welding wires?
A:100% self-inspection before packing. We provide Quality Certification for every order .
Q5:Can we mix itmes in one 20ft container?
A: Yes
Q6:Can I have a visit to your factory before the order?
A: Sure,welcome your visit of factory.
-
