CHANGBAO hifi ofc copper high end 2 / 4 / 8 core rohs monitor audio speaker wire cable

Supplier: Chang Bao Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Amy Chu
Price: $30.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Model Number:	XAWG-XC-SP;	Operating Voltage ( V ):	300;
Connector Color:	Other;	Port:	Shunde/Guangzhou/Shenzhen/HK;
Application:	Speaker;	Connector Type:	None;
Insulation Material:	PVC;	Jacket Color:	Orange / Black or as required;
Number of Cores:	2 / 4 / 8;	Place of Origin:	Guangdong China;
Shielding:	Combination;	Brand Name:	CHANGBAO / OEM;
Conductor Dimension:	10/12 /14/16/18 AWG;	Packaging Detail:	305M / Pull Box ; 500FT / Pull Box; 1000FT / Pull Box ; 500FT / Plywooden Spool ; 1000FT / Plywooden Spool ; Or packing as required;
Conductor Material:	99.99% OFC Bare Copper or Tinned Copper;	Outer Diameter:	Customized;
Certification:	ETL/CE/ROHS/ISO9001;	Supply Ability:	80000 Box/Boxes per Month;
Rated Temperature (° C):	75;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Jacket Material:	PVC / LSZH / PE;	Packing:	Carton Box;
Gender:	Other;	Type:	Twisted Pair;
Warranty:	25Y;

Product Description

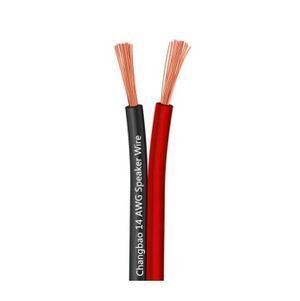

CHANGBAO hifi ofc copper high end 2 / 4 / 8 core rohs monitor audio speaker wire cable

2 / 4 / 8 Cores with High Strand OFC Oxygen Free Copper Or Annealed Tinned Copper Conductors
Both Unshielded and Shielded Types Are Available
Can Be Round Type or Parallel Flat Type
CL2, CL2R, CL3 and CL3R Rated Transparent PVC, Non-Transparent PVC Or LSZH Jacket for In Wall Applications
PE Jacket for Outdoor Application, With Gel Filled Type or With Water Blocking Tape , UV and Water Resistant
Tangle Free Reelex and Easy Pull Box Packing Or As Required
Excellent performance, sound quality ,ffor professional home theatre speaker and audio connections
ETL Listed and RoHS Compliant

14AWG 4Cores 105 Strands OFC Speaker Cable

Construction Characteristics:

Conductor	Material	Stranded Bare Copper
	Size	14AWG X 4C
	Construction	105/0.16mm or As Required
Insulation	Material	PVC
	Diameter	2.60±0.05mm
	Colors	Any Color As Required
Jacket	Material	PVC / LSZH / PE
	Diameter	8.00±0.10mm
	Rip Cord	Nylon
	Color	Any Color As Required

Related products :

1. In-Wall grade , PVC or LSZH jacket .
2. Indoor-Outdoor Heavy Duty grade , UV resistant PVC or LSZH jacket .
3. Outdoor Direct Burial Landscape grade, LLDPE jacket ,UV resistant and Waterproof, with

waterproof tape or gelly inside cable .
