mini electric 7 inch laboratory LCD Digital ceramic stirring laboratory stirring hotplate magnetic stirrer and china supplier

Supplier: Hangzhou Rollmed Co., Ltd.
Region: Zhejiang, China
Contact: Ms Eva A
Price: $398.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	globalroll;	Work plate material:	Glass ceramic;
Heating output:	1000W;	Power:	1050W;
Classification:	Laboratory Heating Equipments;	Motor rating output:	10W;
Motor rating input:	18W;	Supply Ability:	500000 Piece/Pieces per Month;
Packaging Detail:	Standard export packing;	Port:	shanghai;
Stirring positions:	1;	Work plate Dimension [W x D]:	184x184mm (7 inch);
Motor type:	Brushless DC motor;	Max. stirring quantity, [H2O]:	20L;
Model Number:	MS7-H550-Pro;

Specification

Specifications	MS7-H550-Pro
Work plate Dimension [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity, [H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-550°C,increment 1°C
Temperature control accuracy	±1 °C (<100°C) ±1%(>100°C)
Overheating protection	580°C
Temperature display accuracy	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Data connector	RS232
Protection class	IP21
Dimension [WxDxH]	215x360x112mm
Weight	5.3kg
Permissible ambient temperature and humidity	5-40°C, 80%RH

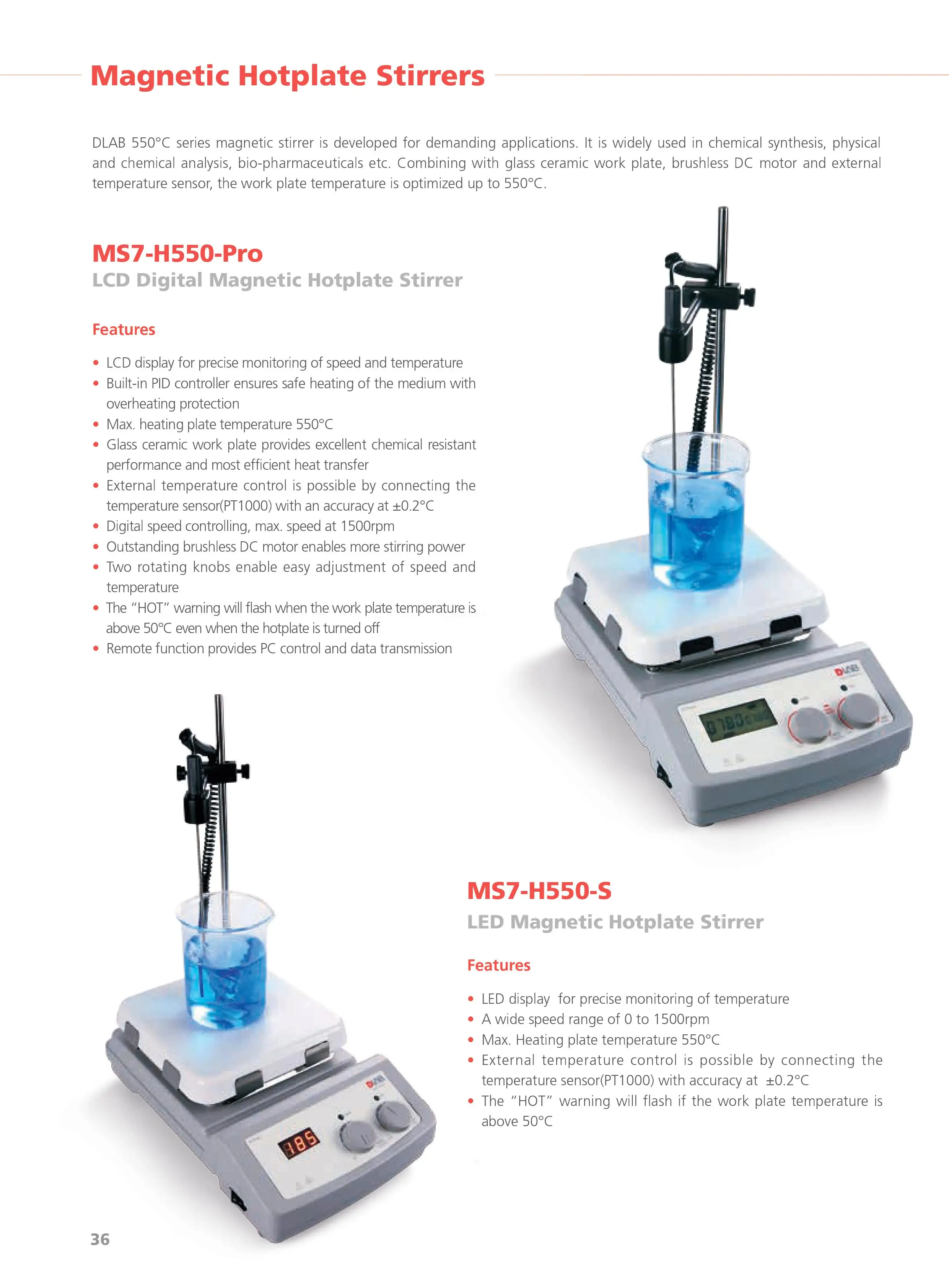

Feature

•   LCD display for precise monitoring of speed and temperature
•   Built-in PID controller ensures safe heating of the medium with overheating protection
•   Max. heating plate temperature 550°C
•   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
•   External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
•   Digital speed controlling, max. speed at 1500rpm
•   Outstanding brushless DC motor enables more stirring power
•   Two rotating knobs enable easy adjustment of speed and temperature
•   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
•   Remote function provides PC control and data transmission
