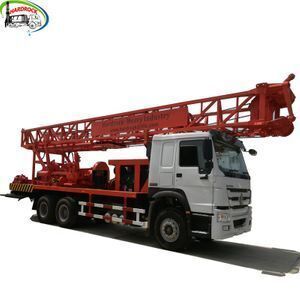

600m Truck Mounted Borehole water Well Drilling Rig boring machine

Supplier: SH Hardrock Heavy Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Havy Chen
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

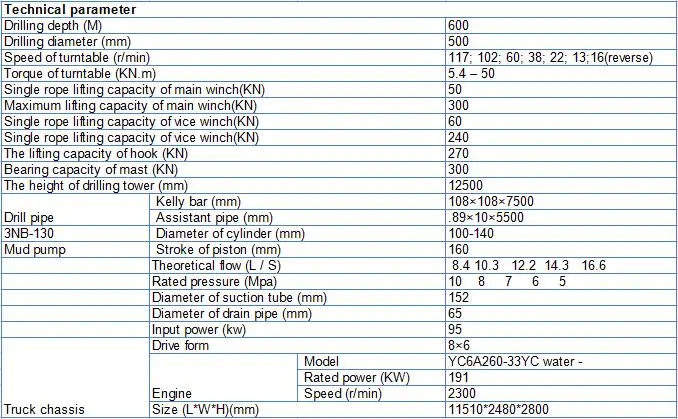

Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Payment Terms:	L/C,T/T,Western Union;	Stroke:	450mm;
Supply Ability:	200 Set/Sets per Month;	Torque of turntable (KN.m):	5.0-5.4;
Weight:	1800Kg;	Dimension(LWH):	11.5102.4802.800m;
Packaging Detail:	1*40'HC;	Max Drilling Depth:	600m;
Place of Origin:	Shanghai China (Mainland);	Bearing capacity of mast (KN):	300;
Brand Name:	Hardrock;	Power Type:	Diesel;
Type:	DTH Drilling Rig;	Certification:	ISO;
Voltage:	Diesel Engine Driven;	Drilling Diameter:	0-500mm;
Drill Pipe Diameter:	50-60mm;	Power(W):	95KW;
Max Pull Force:	16-30KN;	Port:	Shanghai;
Usage:	Water Well;	Winch Drum Capacity:	35-65m;
Working Pressure(bar):	10 8 7 6 5;	Warranty:	1 Year;
Rod Diameter:	89/102 mm;

Product Description

600m Truck Mounted Borehole Well Drilling Rig Introduction:

Model Number:	HM-DY	Weight	970-1800kg
Warranty:	1 Year	After-sales Service:	7X24hours Available
Drilling Diameter:	0-500mm	Drilling Depth:	0-600m
Drill Pipe Diameter:	42-60m	Max Pull Force:	16-30KN
Usage:	Water Well Drilling	Type:	Truck Mounted Drilling Rig
Drilling Methold:	DTH Drilling & Mud Drilling	Winch Drum Capacity:	35-65m
Matching Power:	132KW	Engine Brand:	Cummins

Features:

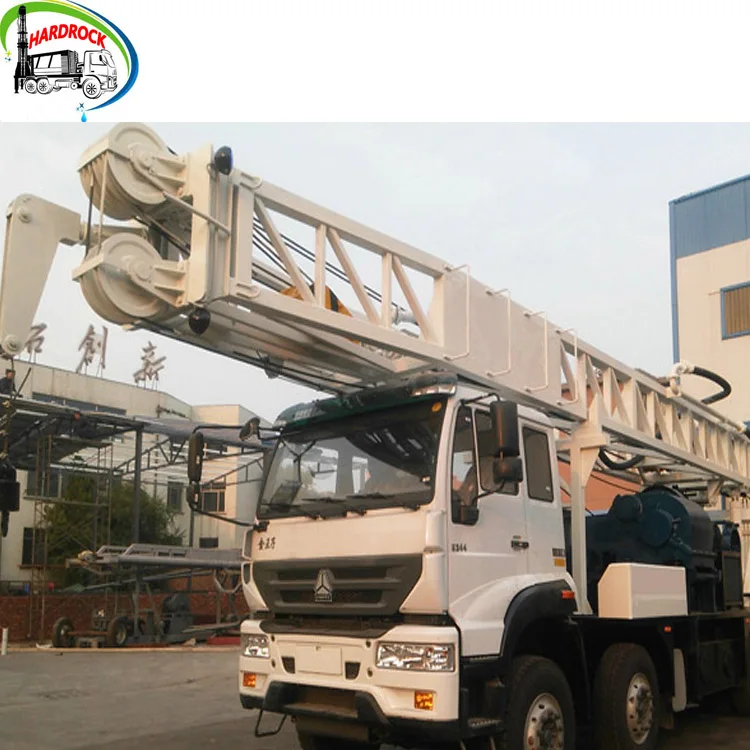

DY600 truck mounted drilling rig is a rotary table drilling rig.

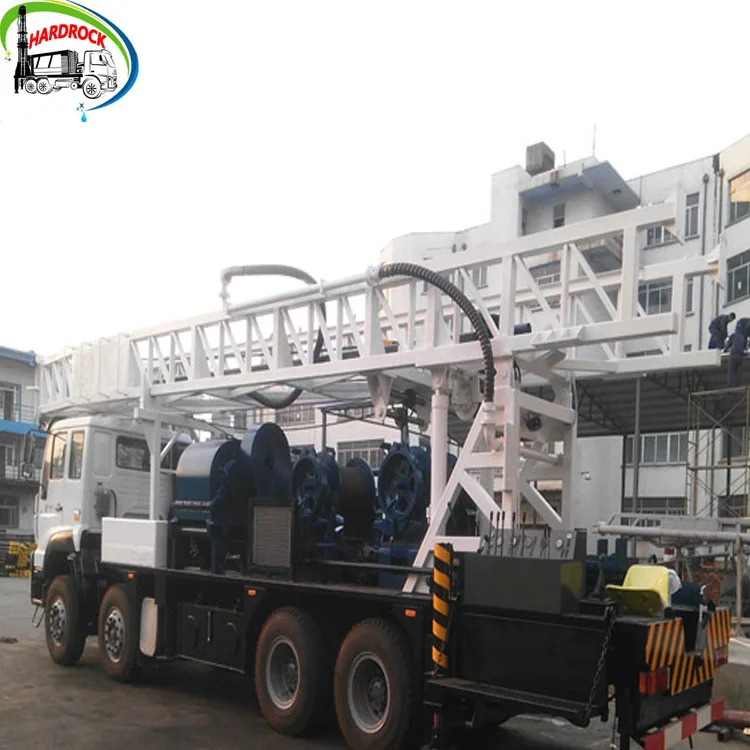

The truck chassis adopts the special crane chassis of brand SINO TRUCK and the main drive system, the transfer case, gearbox, double hydraulic winch unit, mud pump, rotary table, mast, feed mechanism are set up on the chassis.
This rig is a rotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
The power of truck engine transfer to PTO, and then drive drilling rig.
We install the spare electric engine and clutch implement, so that the rig can work with diesel engine or electric engine.
We set up a generator (MF) which is convenient to illuminate or work at night.
The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.
According to client’s requirement, the DY600 can carry out down-the-hole hammer drilling with Air Compressor.
The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, and geothermic well and other foundation working, it is popular at home and abroad.

Applications:
water well, wire-line coring drilling, geothermic well, general investigation and exploration. Road and tall building ground sill exploration and other foundation working.
