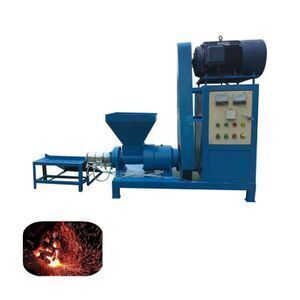

Best quality Sugarcane bagasse Agricultural olive pomace waste and Rice straw biomass charcoal briquette making machine

Product details
Density Of Briquette:High Density;Voltage:220V 380V 450V 600V;
Single package size:100X50X50 cm;Factory Visit:Warmly welcome;
Features:wood recycling;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Application:Biomass Fuel sawdust briquette;Condition:New;
Warranty:1 year;Weight:800kg;
Single gross weight:68 KG;Dimension(L*W*H):1700*720*1250mm;
Selling Units:Single item;Model:ZBJ-80;
Production Capacity:300kg/h;Usage:BBQ, Cooking;
Name:Agricultural waste Rice straw biomass charcoal briquettemachine;Place of Origin:Henan China;
Keyword:Wood Biomass Briquette Making Machine;Brand Name:Autoway;
Shape of final briquette:Hexagonal square;Raw Material:Agricultural waste, Rice straw;
Use worker:1~2;Package:Wooden Case;
Applicable Industries:Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Energy & Mining,Biomass Briquette Machine;

Best quality Sugarcane bagasse Agricultural olive pomace waste and Rice straw biomass charcoal briquette making machine.



Product Description

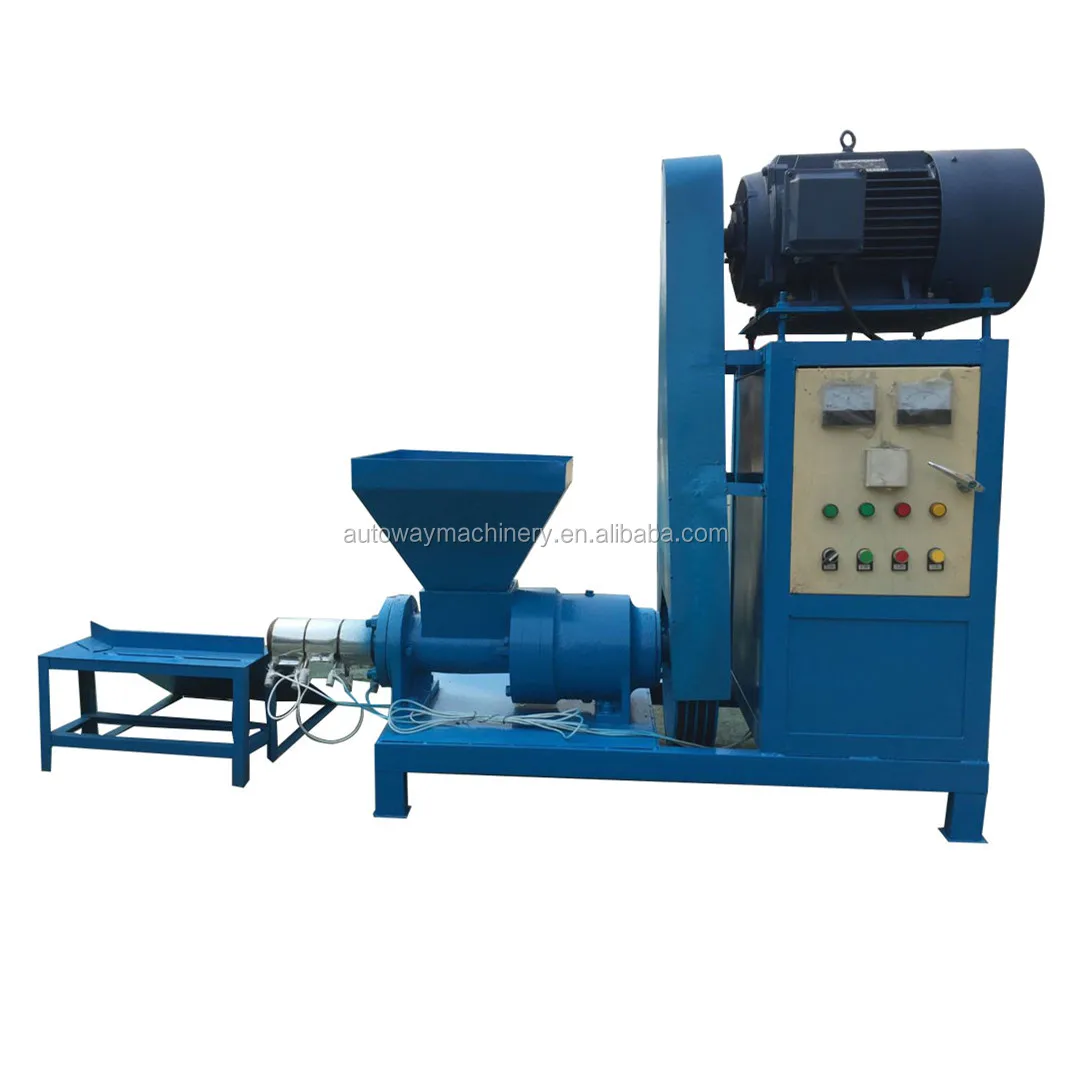

 Product Description of Biomass Briquette Extruder Machine

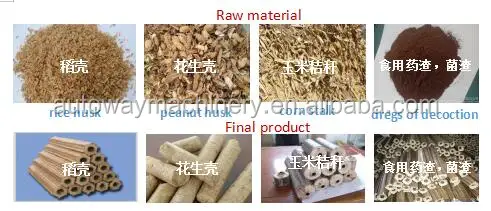

    1. The biomass briquettes extruder machine is used to make briquettes in charcoal, medicine, food, industry processing area. The biomass briquette extruder making machine is use sawdust, crop straw, wood branches, coconut shell, cotton stalks, sesame straw, sugarcane waste, rice hulls, peanut shells, bamboo crumbs and other agricultural wastes to make fuel briquette under high temperature and pressure. This machine adopts high temperature indicator, it can operate steady under setting temperature. It has the features of reasonable structure, simple operature and maintenance, etc. The solid fuel made by this machine can be burn very easily.

    2. These raw materials are crushed first, and then compressed into formed fuel products with high density and high calorific through machine pressing and heating. Under high pressure to make it into square and hollow rod solid charcoal fuel(mechanism charcoal). Working with the principle of high pressure and high temprature, no binder added to the raw material, so when burning there is no pollution to the environment.



Features:

Charcoal briquette machine features :

1.Reasonable design, reliable quality, simple structure, convenient operation, small size,

   small occupation area, labor saving and electricity saving.

2. Auto-control electric heating device

3. Use special wear-resistant material

4. Suitable for all kinds of raw materials of biomass briquetting

5. Improve the bearings to be more stable and durable.

6. Improve the structure of the molding cylinder

7. Briquette machine can be 15kw/18.5kw/22kw-3phase-380v-50hz or customer made .

After carbonized briquettes features:

Long burning time: 5-7 hours
High calorific value: 8800Kcal
Low ash content: Below 2.6
The volatile matter should not be more than 9.5%
The fixed carbon shall not be less than 83.9%
Moisture content shall be not more than 4.0%
Smooth surface: without crackle
Environmental-friendly: without any chemical.



Parameters

 Parameters of Biomass Briquette Extruder Machine

Model Power(kw)Output(kg/h)Dimension(mm)Weight(kg)  Diameter of bar
ZBJ-5018.5200-3001700*720*1250mm70048-80mm
ZBJ-8022250-3501870*720*1450mm80048-80mm
Production Flow

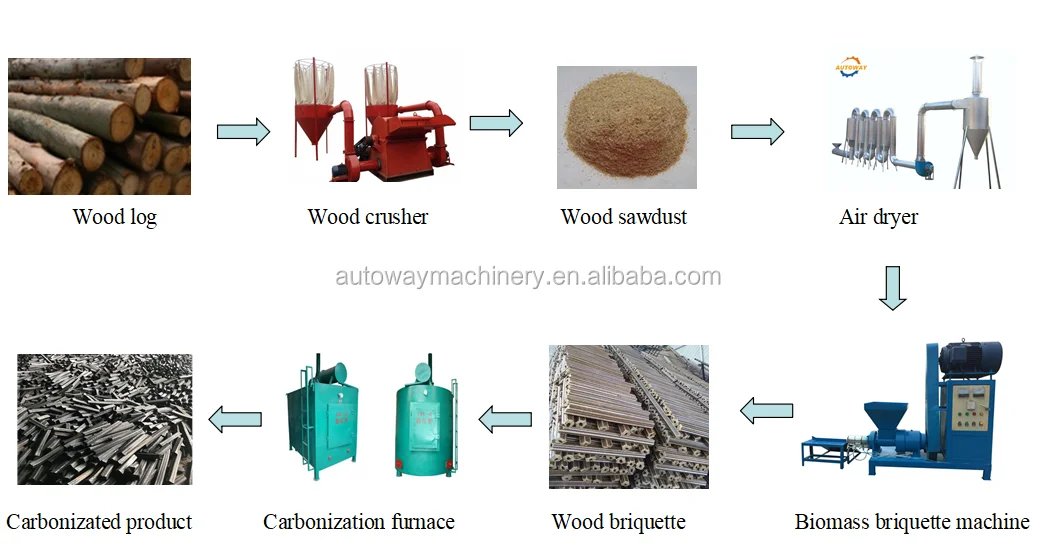

 Flow Chart of Biomass Briquette Extruder Machine

1) Hammer mill or wood crusher: first, we need to get fine biomass powder whose dimension is under 5mm.



2) Air dryer: after we getting fine biomass powder, we need to dry it till its humidity under 15%.



3)Biomass briquette machine: Then we shape fine dry biomass powder into square or hollow rods solid wood briquettes.



4) Carbonization furnace: To turn square or hollow rods solid wood briquettes / biomass briquettes to bbq charcoal briquettes.

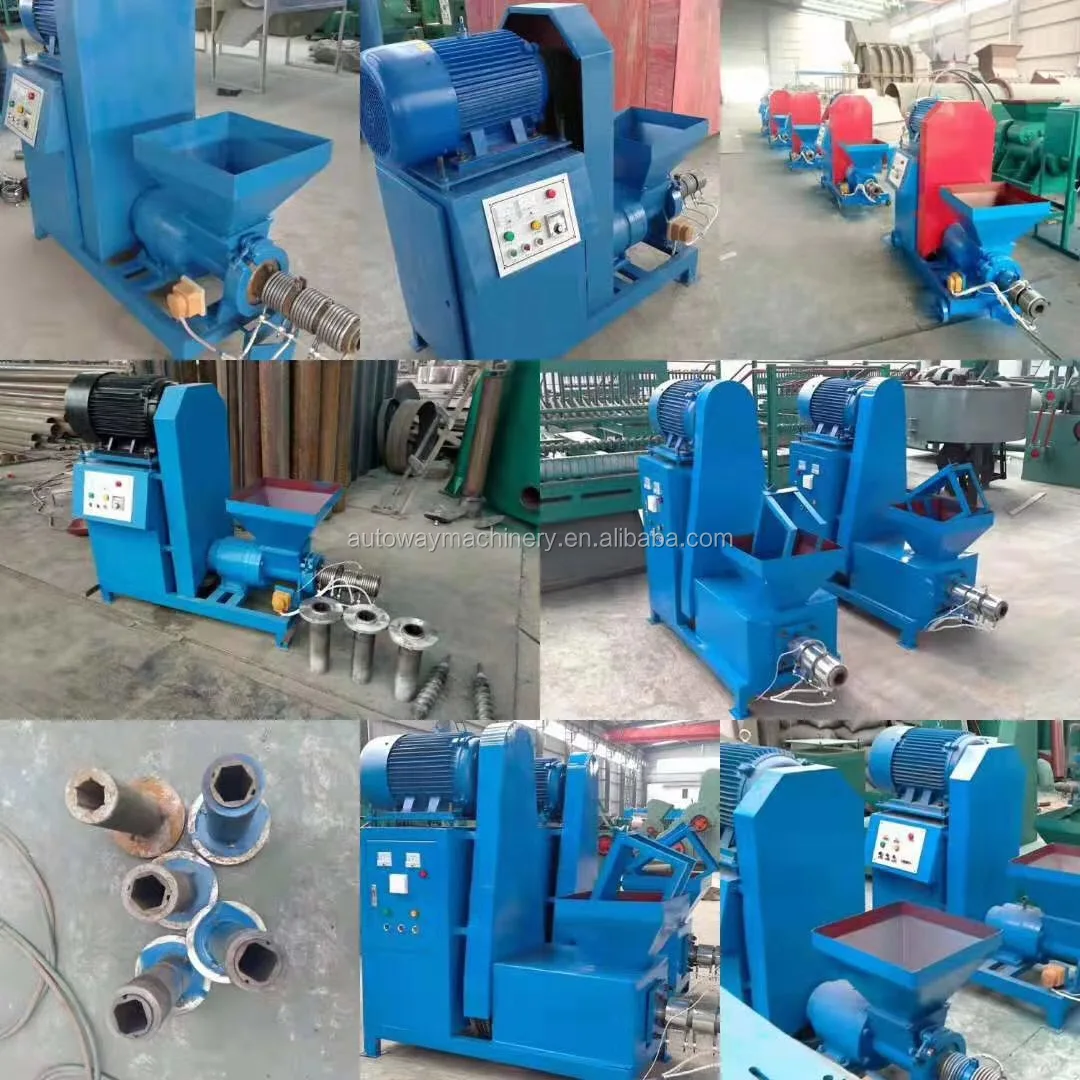

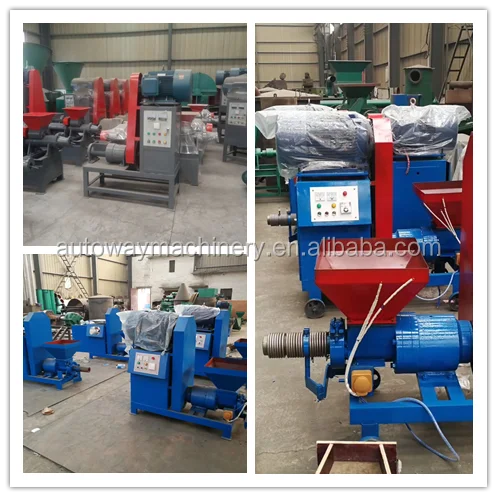

Product Overviews

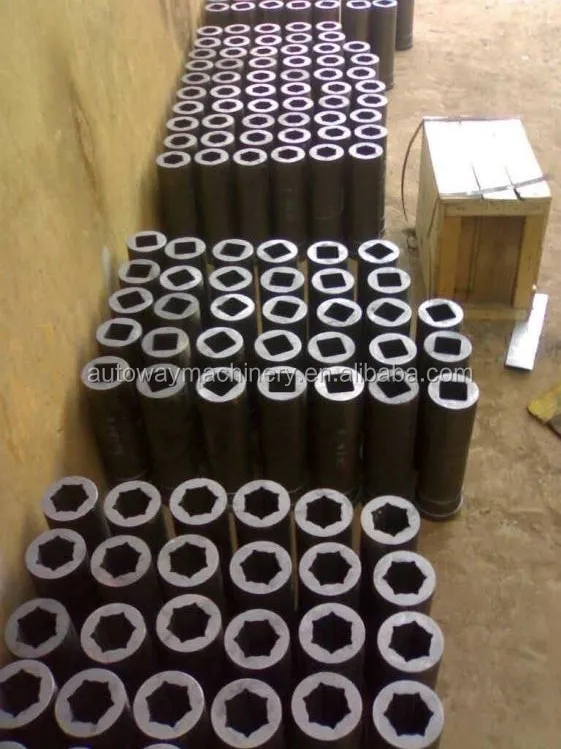

 Product Moulds:

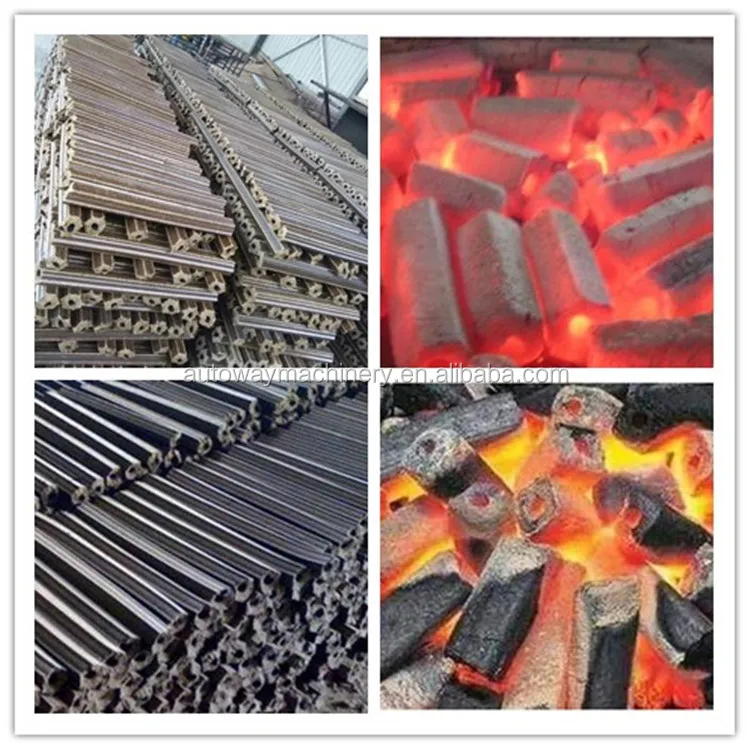

Product Samples:

Company Information



Related Products

https://autowaymachinery.en.alibaba.com

Our Services

Services:

(1)Pre-sales service

a. Technicians will propose suitable production plan.

b. Technicians analyse and design special molds for you.

c. Pick you up at airport, arrange hotel-booking.

d. Other travel arrangements.

(2)After-sales service

a. Assist you build up factory and production line.

b. Install and maintain machines.

c. Training your workers to achieve skillful operation.

d. Offer technical support through telephone or online videos at any time.







Packaging & Shipping

Packing & Delivery

We can accept EXE, FOB, and CIF terms.we have high effieiency and quick shipping speed. If you set machine, we can send out your products within 15 days. If you need special molds or customized production line, the delivery time according to your machine quantity, we will send out as early as possible.
