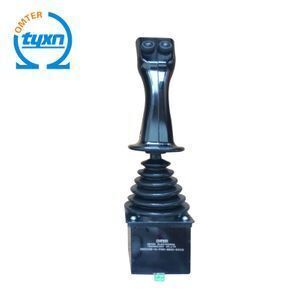

OM3000B-2AC-NA-MS12-B0018 Two Black Buttons Joystick For The Aerial Fire Truck For Crane Joystick

Supplier: Yueqing Omter Electronic & Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sweetie lin
Price: $612.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	OMTER;	Switch work cuttent:	10A;
Use:	used in variety of operation handle;	Operation:	Sinle thumb operation;
Packaging Detail:	1pcs per bax then into export carton;	Compatible Platform:	PSP;
Supply Ability:	100 Piece/Pieces per Month;	Item no.:	OM3000B- detailed item no. according to the data;
color:	black handle silver body;	Service life of rotary:	more than 5,000,000 times;
Protectio rank:	IP65;	Place of Origin:	China;
Payment Terms:	T/T,Western Union,paypal;	handle function:	spring return;
Type:	Joystick;	switch work voltage:	AC 250V;
Port:	Ningbo OR shanghai;	Model Number:	OM3000B-2AC-NA-MS12-B0018 Two Black Buttons;
Size:	according to the drawing;

OM3000B-2AC-NA-MS12-B0018 Two Black Buttons Joystick For The Aerial Fire Truck For Crane Joystick

Product characteristic:

Conforms to the modern man-machine engineering principle, specially for project mechanical profession design use.
The disposition has the non-contact Hall sensor and the long life potentiometer two kind of angular displacements detect method could choose.
Has many kinds of different type handle top port to supply choice, simultaneously, button quantity and the position also have the different disposition form.
The joystick’s output signal could be potentiometer output, the Hall voltage output, the CAN bus output, as well as a variety of standard analog signals

Application scope:

This series products mainly apply in hoist crane, car loader, forklift, excavator, work high above the ground platform, tractor, harvester and so on.

Technical parameter:

Mechanical parameter:
Starting operation strength:	15N(MAX)
Biggest operation strength (limiting position):	50N(MAX)
Limit permission operation strength:	15N
Operation angle:	±25°
Service life:	Is bigger than 5,000,000 times (potentiometer type), is bigger than 10,000,000 times (Hall type)
The weight:	460g (without top port)
Electrical parameter:
Potentiometer type:
Total resistance value:	5KΩ or 10KΩ
Electric angle:	±23°
tHE voltage scope (relative power supply voltage):	0~100%; 10~90%; 25~75%
The median position voltage (relative power supply voltage):	48%~52%
The median position dead zone angle:	±2.5°
The potentiometer loads max voltage:	DC32V
Potentiometer allows the maximum power consumption (25 °C):	0.25W
Direction switch: Load capacity:	10mA@30Vdc (resistive load)
Outset angle:	±3°~±5°
Micro switch: Load capacity:	3A@250Vac, 4A@30Vdc (resistive load)
Mechanical life:	30,000,000 above
Electrical life:	more than 200,000 times
Insulation resistances:	more than 100MΩ (500Vdc insulation resistance meter)
Hall type:
Power supply voltage:	5±0.5Vdc
Power source consumption electric current:	6.5mA (single axis, 1 Hall sensor) 13mA (single axis, 2 Hall sensors, or, double axis, 1 Hall sensor) 26mA (double axis, 2 Hall sensors)
Limit permission overvoltage:	30Vdc (continuous use)
The reverse limit permits the voltage:	15Vdc
Output voltage scope (optional):	H51= Hall type, DC5V power source, 0.5V~2.5V~4.5V voltage output H52= Hall type, DC5V power source, 0V~2.5V~5V voltage output H53= Hall type, DC5V power source, 1.25V~2.5V~3.75V voltage output H54= Hall type, DC5V power source, 1.0V~2.5V~4.0V voltage output
Minimum load impedance:	5KΩ
Insulation resistance:	Is bigger than 50MΩ (when 500Vdc)
With conversion circuit:
With power supply voltage scope:	18~36Vdc(DC24V) 9~18Vdc(DC12V)
Power source consumption electric current:	<20mA
Maximum output electric current:	10mA
Note: The voltage type output already isolates completely the output port and the power source
Standard voltage output:
Output voltage scope (optional):	U21=DC24V power source, - 10V~0V~+10V voltage output U22=DC24V power source, +10V~0V~+10V voltage output U23=DC24V power source, - 5V~0V~+5V voltage output U24=DC24V power source, +5V~0V~+5V voltage output
Standard electric current output:
Power supply voltage:	9~36Vdc
Output current scope (optional):	I21= two-wire system 4mA~12mA~20mA electric current output I22= two-wire system 20mA~4mA~20mA electric current output

button switch:
Load capacity:	5A@28Vdc
Operate strength:	3N
Action form:	Instantaneous action
Mechanical life:	More than 1,000,000 times
Environment parameter:
Operating temperature:	- 40°C~ +80°C,-25°C~ +80°C (when has micro switch)
Storage temperature:	- 40°C~ +85°C,-25°C~ +80°C (when has micro switch)
Protects the rank:	IP65
Vibration:	Extent ±3g, frequency 10Hz to 200Hz
Impact:	20g,6mS, semisinusoidal
EMC anti-interference rank:	100v/m,30MHz to 1GHz,80% sine-wave modulation, satisfies EN50082-2 (1995) standard
EMC launch rank:	150KHZ to 30MHZ, the B rank, satisfies EN50081-2 (1993) standard
ESD anti-interference rank:	4 rank 8KV contact discharge, 15KV air discharge, satisfies the IEC61000-4-2 standard
