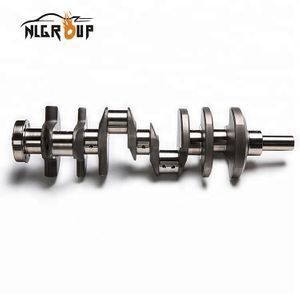

4340 Billet crankshaft for Ford coyote 5.0L

Supplier: NEWLAND GROUP
Region: Sichuan, China
Contact: Ms Alice Deng
Price: $1600.00 / >=3 pieces
Min. Order: 3 pieces

Click here to contact

Product details

Logo Printing:	Available;	Place of Origin:	Sichuan China (Mainland);
Related Product:	Camshaft, Conrods;	Light Weight:	Available;
Item Name:	4340 Billet crankshaft for Ford coyote 5.0L;	Engine Code:	for Ford coyote 5.0L;
Brand Name:	NLGROUP;	Size:	Customized;
Material:	4340 Billet;	Type:	Crankshaft;
Processing Technic:	quenching and tempering & plasma nitriding;	Port:	Any ports in China;
Certification:	2000 ISO/TS16949;	Packaging Detail:	Wooden Box Packing for Ford 5.0L coyote V8 crankshaft;
super finishing:	Available;	Warranty:	1 Years;
Supply Ability:	10000 Piece/Pieces per Month;	Packing:	Netural Packing or Customers' Request;
Car Model:	for Ford coyote 5.0L;	Shipping:	By Air/Sea,TNT/DHL/UPS/FEDEX;
Payment Terms:	L/C,D/A,D/P,T/T,Paypal;

Custom billet 4340 crankshaft for Ford 5.0L coyote V8 crankshaft

Quick Detail

Material	Full CNC 4340 Billet Steel
Date of Delivery	5-7 days if in stock,80-90 days if out of stock
Application	for Ford 5.0L coyote V8 crankshaft

Dimension

Stroke	92.7mm(3.649")
Main	***mm
Crank Pin	***mm

NLGROUP DESIGN

customized design counterweight Pendulum Undercut Counterweight

Knife Edge Counterweights Oil Groove Counterweights

Knife Edge Counterweights Tapered Counterweights

Lighten Holes at Rod Journals

Technical Features

• Materials:40CrNiMoA Heating treatment:HRC34-38

• Crankshaft will get thermal refining after normalizing,HRC34-38.The difference will be within 4HRC on same one cranks

• No over burning,carbon-free surface layer is within 0.3mm

• Folding,oilet,cracks, oxidation and other things is not permitted for Cranks macrostructure.

• Balance weight value need keep 0-20g.cm on counterweight of big end and small end

• Peening treatment will be done after balance weight

• Nitrogen treatment will be done after precision grind,compound layer depth is 0.008mm after polishing.diffusion layer is over 0.3mm,hardness on surface is not less than 500HV.

• No damage,scallops and other visible disadvantage on surface.

• Crankshaft will be cleaned up to make sure there is no filings in oil hole.

• magnetic flaw detecting will be done according to standard JB/76729-93

• Other size tolerance :standdars GB1804-79 IT14,No marked place roughness:Ra6.3

Processing & Packaging
