CREE CXB3590, original Cree COB led, 3000K/3500K/4000K/5000K/6500K

Supplier: Shenzhen Kingbrite Lighting Co., Ltd
Region: Guangdong, China
Contact: Mr Jerry Meng
Price: $22.00 / >=4 pieces
Min. Order: 4 pieces

Click here to contact

Product details

Package Type:	Surface Mount;	Place of Origin:	Guangdong China;
Model Number:	XLamp CXB3590;	Bin:	CB, CD, DB, DD;
Type:	LED;	Color:	2700K, 3000K, 3500K, 4000K, 5000K, 6500K;
Single package size:	10X10X10 cm;	Brand Name:	Cree;
Single gross weight:	0.001 KG;	Selling Units:	Single item;

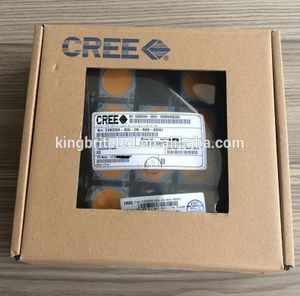

Voltage:	36V, 72V;	Package Type:	Cree Original Packing;

CREE CXB3590, original Cree COB led, 3000K/3500K/4000K/5000K/6500K

CXB3590-0000-000N0HCB30H(3000K 30H CB 36V)

CXB3590-0000-000N0HCB30G(3000K 30G CB 36V)

CXB3590-0000-000R0HCB30H(3000K 30H CB 72V)
CXB3590-0000-000R0HCB30G(3000K 30G CB 72V)

CXB3590-0000-000N0HCD50G(5000K 50G CD 36V)

CXB3590-0000-000R0HCD50G(5000K 50G CD 72V)

Second Generation of CXA LED Arrays

The XLamp CXB3590 LED Array is the brightest member of the second generation of the CXA family that delivers up to 33% higher efficacy than the first generation in the same LES. The higher performance CXA2 LED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. CXA2 LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost.

Size	34.85 x 34.85 mm
Product Options	36-V
	72-V
	High-CRI
Maximum Drive Current	3.6 A (36V)
Maximum Drive Current	1.8 A (72V)
Maximum Power	137 W
Light Output Range	6550 - 18000 lm
Light Emitting Surface (LES)	30 mm
Typical Forward Voltage	36 V @ 2400 mA (36V) (85°C)
Typical Forward Voltage	72 V @ 1200 mA (72V) (85°C)
Viewing Angle	115 °
Binning	85°C
Binning	2- 3- and 5-Step Easy White®
RoHS Compliant	Yes
REACH compliant	Yes
UL recognized	Yes - Level 4 Enclosure Consideration
