plc 1760-L12BWB-NC allen bradley plc Module Pico Controller Processors brand new

Product details
Weight:0.152 lbs;Brand Name:Allen-Bradley;
Supply Ability:1000 Piece/Pieces per Week;Type:Allen Bradley plc Module;
Volage:24V;Place of Origin:Michigan United States;
Date:2013/4/19;Packaging Detail:Allen-Bradley original carton.;
Manufacture:Allen Bradley;plc:1760;
Serial:DeviceNet;Payment Terms:T/T,Western Union;
Model Number:plc Module 1760-L12BWB-NC;PLC packaging:CARTON;
Name:Allen Bradley plc 1760-L12BWB-NC;







Brand Name   Allen Bradley plc  Module



Allen Bradley plc Module Model Number 1760-L12BWB-NC

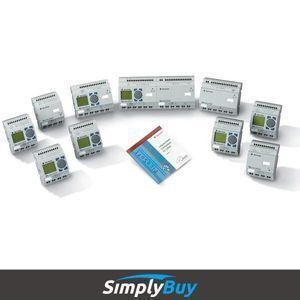

  Allen Bradley plc Module   1760-L12BWB-NC  photo



brand new

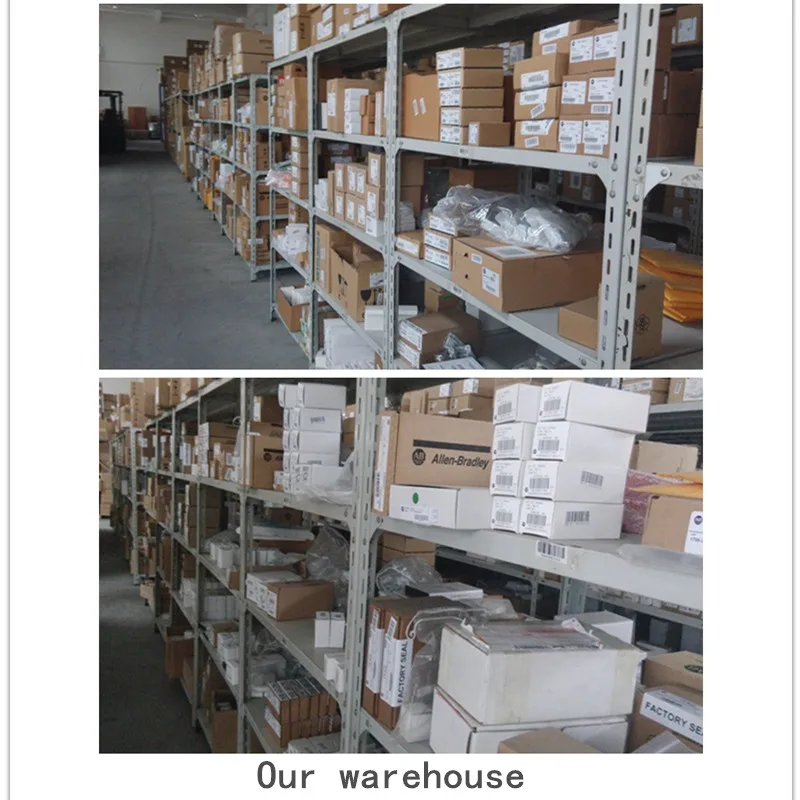

Our warehouse photos

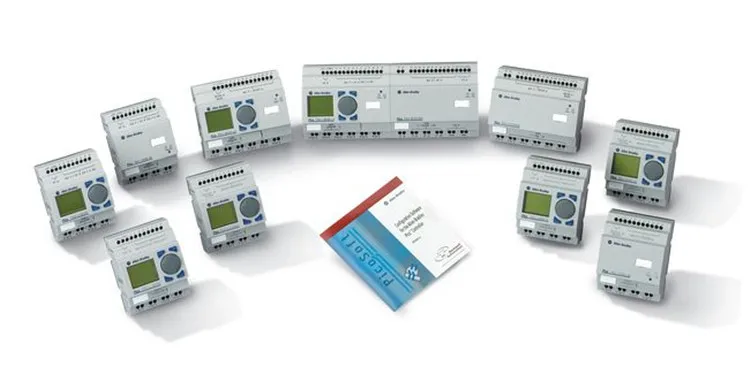

  Pico Controllers

The Pico™ family of nano-PLCs is our smallest, most economical controller offering, performing simple logic, timing, counting, and real-time clock operations. Splitting the difference between a timing relay and a low-end PLC, the Pico controller is ideal for relay replacement applications, simple control applications such as building and parking lot lighting, and applications in which cost is a primary design issue.

Benefits

  • Small Size—The Pico controller is smaller than some relays, saving panel space and system cost.
  • Simplicity—Pico is designed with ease of use in mind. All programming and data adjustments can be made using the on-board keypad and LCD display.
  • Flexibility—Choose from many 120/240V AC, 12V DC, 24V DC, and 24V AC models that can all be mounted on a DIN rail, on-machine, or in-panel. The built-in 8 amp relay outputs can drive a range of electrical components.
  • Economy—Pico controllers without on-board keypad, LCD display, or real-time clock let you select the level of functionality required for your application.



  Product Design

Pico controllers can be either DIN-rail or panel mounted, or mounted directly on your machine. They offer the following control capabilities:

  • 8 or 12 inputs (up to 24 inputs with I/O Expansion Block).
  • 4, 6, or 8 outputs (up to 16 outputs with I/O Expansion Block).
  • 4 soft inputs controlled by the available on-board keypad.
  • 16 internal bits for intermediate data storage.
  • 16 timers.
  • 16 counters (includes 2 frequency counters and 2 high-speed counters).
  • 8 real-time clock instructions.
  • 16 analog compare instructions (12V DC, 24V DC, or 24V AC units only).
  • 16 text display screens.


Depending on which Pico controller you use, expansion I/O modules can provide up to 40 I/O points.



Specifications

Memory Size
All controllers
512 instructions
Power Supply Input Voltage
120 / 240V AC controllers
85…264V AC, 50 / 60Hz
24V AC controllers
20.4…26.4V AC
24V DC controllers
20.4…28.8V DC
12V DC controllers
10.2…15.6V DC
Input Voltage Range
120 / 240V AC controllers
79…264V AC
24V AC controllers
14…26.4V AC
24V DC controllers
15…28.8V DC
12V DC controllers
8…15.6V DC
Relay Output Current8A resistive
3A inductive
Analog Input (DC and 24V AC controllers only)0…10V DC, ±2% of actual value
Accuracy of Real Time Clock±5 seconds/day (typical)
Dimensions (HxWxD), Approx.
12-point controllers
90 x 71.5 x 58 mm (3.54 x 2.81 x 2.28 in)
18- and 20-point controllers
90 x 107.5 x 58 mm (3.54 x 4.23 x 2.28 in)
Shipping Weight
1760-L12xxx
0.2 kg (0.44 lb)
1760-L18xxx
0.3 kg (0.66 lb)
1760-L20xxx
0.3 kg (0.66 lb)
Operating Temperature-25…55 °C (-13…131°F)
Nonoperating Temperature-40…70 °C (-40…158 °F)
Operating Humidity5…95% (without condensation)
Shock (IEC 60068-2-27)18 shocks (semi-sinusoidal 15 g / 11 ms)
Vibration (IEC 60068-2-6)10…57 Hz (constant amplitude 0.15 mm)
57…150 Hz (constant acceleration 2 g)
CertificationsUL, CE, CSA, C-Tick, Class I, Division 2 Hazardous Location
 When product is marked. See the Product Certification link at www.ab.com for Declarations of Conformity, Certificates, and other certification details.



Programming

Using the Keypad

Pico controllers, with on-board keypad and LCD display, can be programmed entirely from the front keypad. Models without the keypad and LCD display are programmed by using PicoSoft programming software or by installing a pre-programmed memory module.

Pico controllers can contain 128 program rungs. Each rung may contain three input instructions and one output instruction. The instruction set includes:

  • Input Instructions—examine-on and examine-off.
  • Output Instructions—output enable (OTE), set (latch), reset (unlatch), and flip-flop (alternating on/off).
  • Timer Instructions—on-delay, off-delay, single pulse, flashing.
  • Counter Instructions—count up, count down.
  • Real-time Clock Instructions—turn on or off based on time-of-day and day-of-week (models with real-time-clock only).
  • Analog Compare Instructions—greater than or less than a setpoint or each other (12V DC, 24V DC, or 24V AC units only).
  • Text Display Instructions—display messages, timers, counters, etc. on the LCD display.


Using PicoSoft Programming Software





PicoSoft programming software (1760-PICOSOFT) lets you create, edit, store, upload, download, and test programs for Pico controllers. This software:

  • Provides an easy-to-use programming interface.
  • Lets you connect a Pico controller to your PC using the PC-to-Pico interface cable (1760-CBL-PM02).


With a Pico controller connected to your PC, you can:

  • Compare a program in your PC with the program installed on the Pico controller.
  • View the status of inputs and outputs in your program for the Pico controller.
  • Test your program with the Pico controller.


Download PicoSoft software free of charge from the Pico web site or order PicoSoft software on CD (1760-PICOSOFT) for a nominal fee.

Cat. No.Description
1760-PICOSOFTPicoSoft Programming Software (for Pico only)
1760-PICOSOFTPROPicoSoft Pro Programming Software (for Pico and PicoGFX)
1760-CBL-PM02Programming Cable, PC to Standard Pico Processor





Pico Controllers

Select Pico controllers with up to 20 built-in I/O points. Add a Pico Expansion I/O module for up to 40 I/O points.

Cat. No.Line PowerInput Voltage CategoryNumber of Inputs (Digital)Number of OutputsAnalogPico Variation
1760-L12AWA120 / 240V AC120V AC84 relay
1760-L12AWA-NC120 / 240V AC120V AC84 relayno real-time clock
1760-L12AWA-ND120 / 240V AC120V AC84 relayno display
1760-L18AWA-EX120 / 240V AC120V AC126 relayI/O expandable
1760-L18AWA-EXND120 / 240V AC120V AC126 relayI/O expandable, no display
1760-L12NWN24V AC24V AC84 relay2 (0…10V DC)
1760-L12NWN-ND24V AC24V AC84 relayno display
1760-L18NWN-EX24V AC24V AC126 relay4 (0…10V DC)I/O expandable
1760-L18NWN-EXND24V AC24V AC126 relayI/O expandable, no display
1760-L12DWD12V DC12V DC84 relay2 (0…10V DC)
1760-L12DWD-ND12V DC12V DC84 relayno display
1760-L18DWD-EX12V DC12V DC126 relay4 (0…10V DC)I/O expandable
1760-L18DWD-EXND12V DC12V DC126 relayI/O expandable, no display
1760-L12BBB24V DC24V DC84 transistor2 (0…10V DC)
1760-L12BBB-ND24V DC24V DC84 transistorno display
1760-L12BWB24V DC24V DC84 relay
1760-L12BWB-NC24V DC24V DC84 relayno real-time clock
1760-L12BWB-ND24V DC24V DC84 relayno display
1760-L18BWB-EX24V DC24V DC126 relay4 (0…10V DC)I/O expandable
1760-L18BWB-EXND24V DC24V DC126 relayI/O expandable, no display
1760-L20BBB-EX24V DC24V DC128 transistorI/O expandable
1760-L20BBB-EXND24V DC24V DC128 transistorI/O expandable, no display
Two to four of the digital DC inputs can be use as 0…10V DC analog inputs. These inputs can be used as either digital or analog, not both. For example, you could use 2 analog inputs plus 10 digital inputs on the 1760- L18DWD-EX.









  Expansion I/O

Pico Expansion I/O Modules

Pico Expansion I/O modules connect to the side of the controller and can be used with Pico or PicoGFX controllers. Expansion I/O modules include an expansion module connector. Replacement connectors can be ordered separately.

Cat. No.Input Voltage CategoryNumber of Inputs (Digital)Number of Outputs
1760-IA12XOW6I120/240V AC126 isolated relay
1760-IB12XOB824V DC128 transistor
1760-IB12XOW6I24V DC126 isolated relay
1760-OW22 relay
1760-RPLCONNExpansion Module Connector - Replacement
Four of the digital DC inputs can alternately be used as 0…10V DC analog inputs. These inputs can be used as either digital or analog, not both. For example, you could use 4 analog inputs plus 8 digital inputs.





  Accessory Products

DeviceNet Communications Module

The Pico DeviceNet module lets you connect a Pico controller as a slave device on the DeviceNet network. It connects to the Pico controller like an expansion I/O module. It can be used with the Pico 18- and 20- point controllers and the PicoGFX controller. 24V DC power must be provided to the device.

Cat. No.Description
1760-DNETPico DeviceNet Communications Module


Memory Module

Use a memory module to backup your program and data.

Cat. No.Description
1760-MM1Pico 8K Memory Module for 12-Point Controllers
1760-MM2Pico 16K Memory Module for 18-Point Controllers
1760-MM2BPico 32K Memory Module


Remote Processor

The remote processor is used for terminal mode operation of Pico controllers and I/O modules. Use the remote mounting processor with Pico controllers, Pico expansion I/O, and PicoGFX controllers. Perform text messaging and make data adjustments using the display/keypad unit.

Cat. No.Description
1760-RM-PICOPico Remote Processor Unit


Power Supply

The 24V DC power supply is sized to provide enough power for any standard Pico or PicoGFX system. Line power can be 100 to 240V AC or 85 to 375V DC.

Cat. No.Input VoltageOutput PowerOutput VoltageRated Output CurrentDimensions (W x H x D), Approx.
1606-XLP30E• 100…240V AC, 47…63 Hz
• 85…375V DC
30 W24…28V DC• 1.3 A @ 24.5V
• 1 A @ 28 V
45 x 75 x 91mm (1.77 x 2.95 x 3.58 in)


PC-to-Pico Interface Cable

The PC-to-Pico interface cable connects a Pico controller to your PC for use with PicoSoft programming software.

Cat. No.Description
1760-CBL-PM02Programming Cable, PC to Standard Pico Processor


I/O Simulator Module

Cat. No.Description
1760-SIMInput Simulator for 12 I/O DC Pico Controller
