Factory Price High Speed Automatic Plastic T-shirt Shopping Bags Making Machine

Supplier: Ruian Xinye Packaging Machine Co.,Ltd
Region: Zhejiang, China
Contact: Ms Ada Yu
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Computerized:	Yes;
Bag length:	300-600mm;	Delivery Detail:	25-30days;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	Plastic film,plastic foam, standard wooden box;
Material:	Plastic;	Certification:	ce;
Weight:	1400kg;	Port:	Ningbo or Shanghai;
Speed:	100-300pcs/min;	Switch/Breaker:	Chint Brand or Schneider;
Warranty:	1year;	Machine Type:	Bag Forming Machine;
PLC:	Taiwan;	Model Number:	DFR-400*2;
Dimension(LWH):	600014001600mm;	Maintain:	Forever;
Inverter:	Delta Form Taiwan;	Bag Type:	T-shirt Bag;
Servo Motor:	Yaskawa;	Supply Ability:	20 Set/Sets per Month;
Voltage:	220v;	Color:	Dark Gray;
Bag Width (Max):	200-580mm;	Power(W):	5.5kw;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Brand Name:	elight;	EPC:	Taiwan;

DFR-400×2

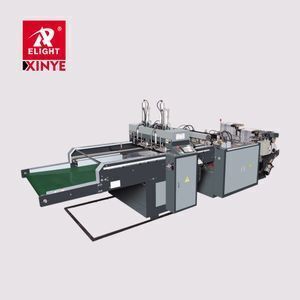

Automatic High Speed Double-color T-shirt Bag Making machine

Product Description

1.Characteristics :

It is applied to produce and print the double-colored or uncolored vest bags, using HDPE,LDPE roll film. It adopts PLC control, double step(servo) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process,which can save man-power greatly and yield good economic result. It's traced by 2 photocells to make the printing very exact.

2.Main Technical Variables:

Model	DFR-400×2
Max. Bag-making Width	326mm×2
Max. Bag-making length	500-600mm×2
Bag-making thickness	0.015-0.035mm
Bag-making speed	150-200(pcs/min)×2
Air pressure	5kg/cm2
Main power	5.5kw
Weight	1400kg
Overall Dimensions(L×W×H)	6000×1400×1600mm
