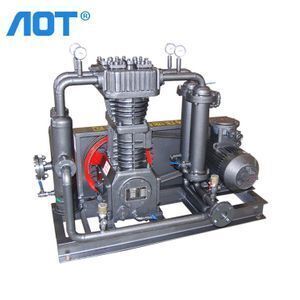

ZW-1.65/(1~1.2)-6 piston argon gas compressor Diaphragm type compressor compressors manufacturing
-
Supplier: Bengbu AOT Compressor Co., Ltd. -
Region: Anhui, China -
Contact: Mr aot ysj -
Price: $23169.00 /set -
Min. Order: 1 set
| Local Service Location: | Italy,France,Germany,Saudi Arabia,India,Russia,Spain,Australia,Bangladesh; | Color: | Black; |
| Applicable Industries: | Machinery Manufacturing; | Port: | Shanghai; |
| Warranty: | 2 years; | Brand Name: | AOT; |
| Weight: | 1750kg; | Voltage: | 220V/380V/415V(customizable); |
| Configuration: | Stationary; | Certification: | ISO9001:2015; |
| Mute: | Yes; | Power Source: | AC POWER; |
| Place of Origin: | Anhui China; | Lubrication Style: | Oil-free; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Condition: | New; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Showroom Location: | United States,Russia,Spain,Bangladesh; | Type: | PISTON; |
| Dimension(L*W*H): | 1400*1000*1200mm; | Packaging Detail: | Special packaging for export, free from fumigation This alluse for Argon compressor Packing type: iron frame wooden case Package size: 1500*1100*1300 (mm) Gross weight: 1850Kg; |
| Supply Ability: | 100 Set/Sets per Year; | After-sales Service Provided: | Field maintenance and repair service; |
| Condition: | New; |
Compressor
| Product Model | ZW-1.65/(1~1.2)-6 | |
Type | Z Type | ||
Compressed medium | Argon | ||
Nominal volume flow(m³/mim) | 1.65 | ||
Compression stage | 2 | ||
Cylinder number | 2 | ||
driving mode | belt
| ||
Noise (sound pressure level) dB(A) | ≤85 | ||
Cooling mode |
water cooling | ||
Rotational speed (r/min) | 550 | ||
Suction pressure (MPa G) | 0.1~0.12 | ||
Discharge Pressure (MPa G) | 0.6 | ||
Suction temperature (℃) | ≤30 | ||
Discharge temperature (℃) | ≤150 | ||
Lubrication type |
Crankshaft, connecting rod, cross head | Oil lubrication | |
Cylinder, Packing | Oil-free lubrication | ||
Motor
| Model | YB3-160L-4 | |
Explosion-proof grade
| DIIBT4 | ||
Rotational speed (r/min) | 1460 | ||
Rated voltage (V) | 380 | ||
Rated frequency(Hz) | 50 | ||
Rated current (A) | 30.1 | ||
Rated power (Kw) | 15 | ||
Compressor size (L×W×H) mm | ≈1400×1000×1200 | ||
Weight(kg) | ≈1750 | ||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | number | note |
1 | Compressor host | 1 |
|
2 | motor | 1 |
|
3 | Gas-liquid separator | 1 |
|
4 | water cooler | 2 |
|
5 | Shared chassis | 1 |
|
6 | belt | 1 set |
|
7 | Piping components | 1 set |
|
8 | Random spare parts | 1 set |
|
9 | The technical documentation | 1 set |
|
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Natural gas compressor application:
If you are interested in it,please contact me freely
-
