Weihua Vertical Electric Carousel Fast Access Automatic Smart Rotary Car Parking Lifts Equipment System

Product details
Model Number:PCX;Place of Origin:Henan China;
Port:Qingdao;Supply Ability:300 Set/Sets per Year;
Brand Name:WEIHUA CRANE;Payment Terms:L/C,T/T,Western Union;
time to get car out:87-148 seconds;Loading Capacity:1.8t;
Packaging Detail:Packaging and shipping details of PCX rotary parking equipment system: 1.Electrical parts are packed by strong plywood box, to prevent the rain soaked. 2.Main portal frame, jib frame and others are packed in plastic woven cloth, to prevent corrosion in seawater.;layer:8;
Warranty:1 Years;Cycle Speed:4.4-5.5mmin;
PLC:Schneider;Type:Parking Lift;
product name:Automatic Smart Rotary Car Parking Lifts Equipment System;Car Quantity:16;
Equipment Total Height:9.7-17.3m;Car Weight:1.8t;
Motor Power:7.5-15KW;Equipment Total Weight:15.3-33.56t;

Weihua Vertical Electric Carousel Fast Access Automatic Smart Rotary Car Parking Lifts Equipment System

Product Description

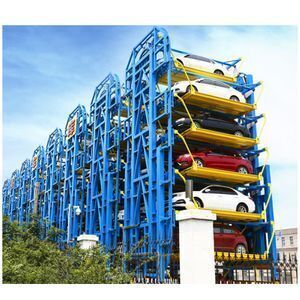

This PCX Rotary Parking Equipment mainly consists of main steel structure, plate structure, transmission system, control system, and safety protection device. The main structure is internally provided with a fixed guide rail, the lifting chain roller runs in the guide rail, and the carriage plate is suspended on the extended plate of the lifting chain. During operation, the car is parked inside the carriage board, and the chain drive system drives the carriage board for circulation running in the vertical direction. When the carriage board runs to the lowest end, the vehicle can be accessed.

Features and Advantages of PCX Rotary Parking Equipment:

1. 2 parking spaces for 12 cars, maximized utilization rate of available space;

2. Takes average 70 seconds and up to 120 seconds to park or take your car, the vacancy plate is always at the lowest floor, efficient and convenient;

3. Automatic control, PLC, Frequency Control, less impact to equipment;

4. Use alone or in combination;

5. Simple operation, 4 ways to use it, card, buttons, remote control, mobile phone, App, etc.

6. Safe and reliable, If people approach, the equipment will automatically stop running;

7. Economical, short construction period, less consumption, green, nice appearance;

8. Quick installation and removal;

9. Stable and durable, main PLC and electrical components are from Siemens, Schneider, Omron;

10. Weihua Smart Garage adopts advanced parametric design methods such as 3D CAD and CAE.

PCX8D-16DH (SUV) Cars Vertical Rotary Parking Equipment Technical Parameters
Item NameTechnical Parameter and Instruction
ModelPCX-8DHPCX-10DHPCX-12DHPCX-14DHPCS-16DH
Car DimensionL*W*H=5300mm*1850mm*2050mm
Car Weight2.5t2.5t2.5t2.5t2.5t
Occupy Space6.5m*5.5m6.5m*5.5m6.5m*5.5m6.5m*5.5m6.5m*5.5m
Equipment Total Height12.5m15m17.5m20m22.5m
Equipment Total Weight16.8t24.6t33.9t38.8t38.8t
Car Quantity810121416
Motor Power9.2KW9.2KW15KW15KW18.5KW
Cycle Speed4.4m/min4.4m/min5.5m/min5.5m/min6.5m/min
Max Time for Take Out Car136s138s146s165s165s

Notes:The foregoing attached table shall only be used for reference. The actual application shall be appropriately modified according to customers' requirements.

Main Products

Company Information



Packaging & Shipping

Customer Visit

FAQ

1, What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2, Which kind crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.

3, What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4, Which brand are the accessories and electronic components in your cranes?

We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and German.

5, Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
