KPT255H+(plus)TVI full DVB-S2/MPEG4 HD satellite finder with decoding hd video support TVI&AHD Camera tester

Supplier: Zhangzhou Charming Party Trade Co., Ltd.
Region: Fujian, China
Contact: Eason Lin
Price: $92.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	2000 Piece/Pieces per Month;	High Definition:	Yes;
Place of Origin:	Fujian China;	FTA(Free To Air):	Yes;
Packaging Detail:	10 units one carton;	Type:	Digital;
Brand Name:	KANGPUT;	Port:	shenzhen/xiamen;
Delivery Detail:	7;	Model Number:	KPT255H+plus TVI;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;

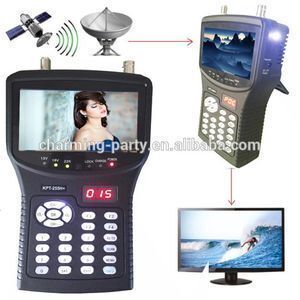

Newest Full HD AHD CCTV Camera of satellite finder

KPT255H+(plus)TVI

1.used import ali chip and built-in LED tube display and LED flashflight keyboard with HDMI output

2. compatible with DVB-S, DVB-S2, MPEG-2, MPEG-4 ,CBS-S,ABS-S signal

3.MPEG-/MPEG-4 decoding video format and 1080p full hd muti-purpose design

4.easy operate and fast tracking HD video decoding

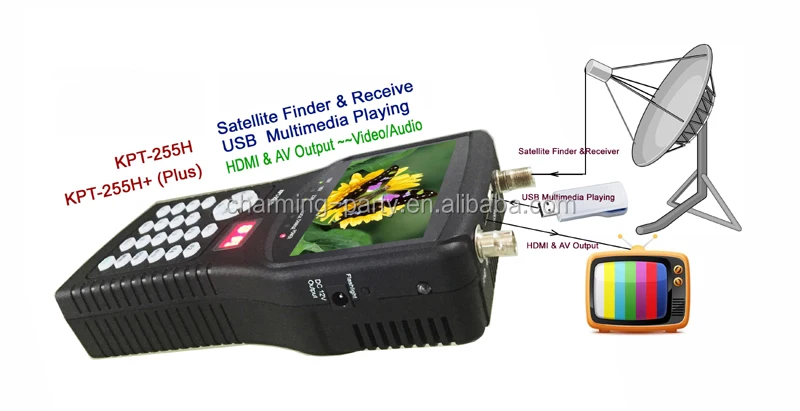

5.Quick antenna installation and

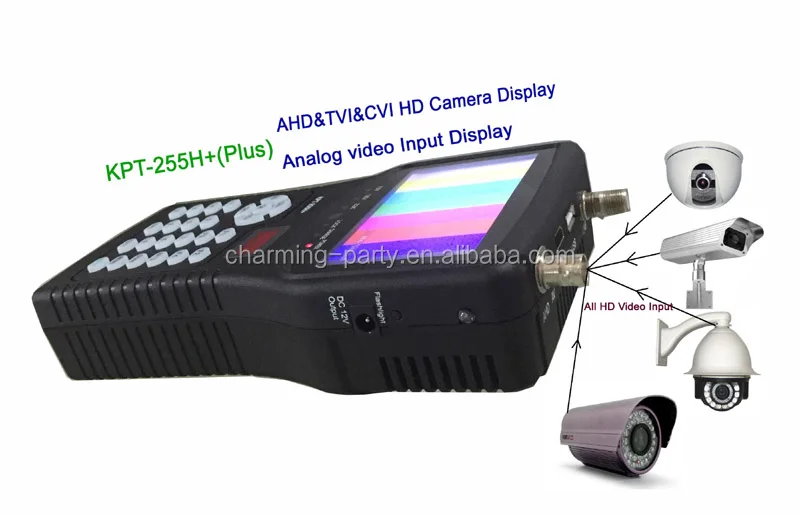

6.support AHD input,AHD/CVI/TVI Video display ,coaxial high-definition,simulation,with DC12V power output to camera,very covienient to engineer for exact install and test.

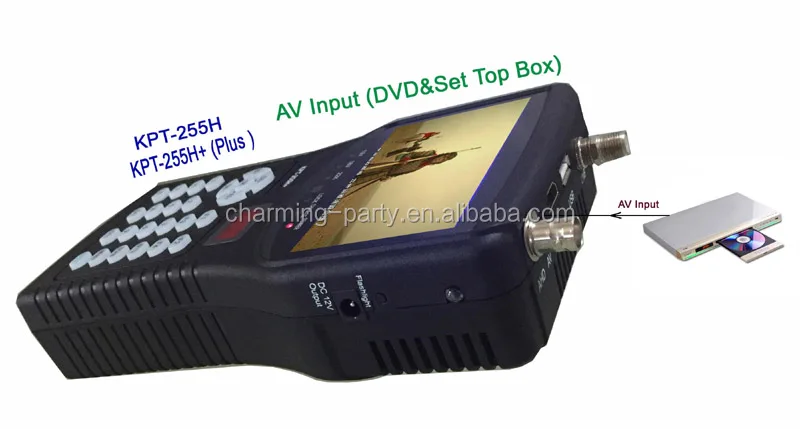

7.also support AV Input:analog video and audio input display for DVD And other multimedia player.

8. Quick satellite antenna installation Global satellite data preset Satellite parameters editable Support DISEqC1.0,DISEqC1.1

9. Sound prompt when signal locked Signal locked indicating light 13/18 volts indicating lights 22KHz indicating light

10.Demodulation QPSK, 8PSK, 16PSK,

11.Multiple satellites/TPs scan,blind scan and scan Display signal quality and strong number rates

12.LCD backlight turns off automatically LNB short-circuit protection and warning Audio and video input/output

Product Description

Model		KPT-255H+(plus)TVI
KPT255H+(plus)TVI		Support TVI/AHD/CVI /Analog HD CCTV Camera display
LCD Display		4.3”TFT LCD Display size:97*55mm(16:9 display)
LCD Display		Dots pixels:480*272(391680Pixes)
Satellite signal	video decoding	DVB-S/S2,MPEG-2/4 display
Satellite signal	signal test	DVB-S/S2,MPEG-2/4,signal alarm & signal test.
Menu language		English,French,Deutsch,Italiano;Spanish;Portuguese;Russian;Turkish;Polish; Arabic; Persian; Thai.
LNB/Tuner Input	connector	F type male puly : 75(F)
	Frequency range	950MHz-2150MHz(DVB-S/S2)
	Signal level	-80~-20dBm
	Symbol rate	13/18V.max400mA(DVB-S/S2)
	LNB switch control	22KHz(turn on/off/auto)
	DiSEqC	1.0, 1.1, 1.2, USALS
	Satellite Management	Edit, Add, Delete
	Minimum electric level	About 35dBuV (noise)
	Maximum electric level	About 90dBuV
Demodulator	Front end	QPSK(SCPC and MCPC compatible)
	Symbol rate	2Mbps-45Mbps
	Guard interval modes	1/32,1/16,1/8 Active symbol duration
	Carriers/Constellation	All modes supported including non hierarchical
	Demodulation	QPSK/8PSK/16PSK
System Resource	SDRAM	1G DDR2 SDRAM
System Resource	FLASH	32MB NOR FLASH
Video Decoder	HDMI Output	480i /480P/576i / 576P / 720P50 /720P60 /1080i25 /1080i30 /1080P50 /1080P60 /1080P25 /1080P30 /1080P24 HD signal output.
	Video format	PAL/NTSC/SECAM
	Video decoding	MPEG-2 SD/HD(MP@ML and MP@HL), MPEG-4 H 2.64/AVC SD/HD DivX 3.X~6X
	Aspect ratio	4:3,16:9
Audio	Audio decoding	MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio
Audio	Sample rate	32kHz,22.1kHz,44.1KHz,48kHz
USB	Connector	USB upgrade, media player( PVR, Video, Music, Image)
Power Supply	Lithium Battery	11.1V/2600mAh
	Charger	In AC100-220V Charge 13.5V/1.5A
	Charger	Out DC12V / 1.A
Physical Specification	Size	21212348mm
Physical Specification	Net Weight	540g (including battery pack)

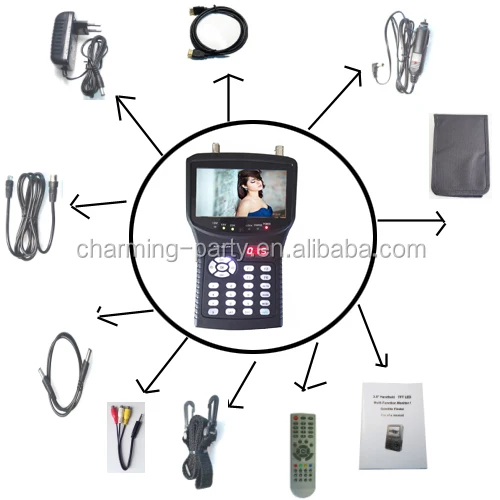

Accessories
