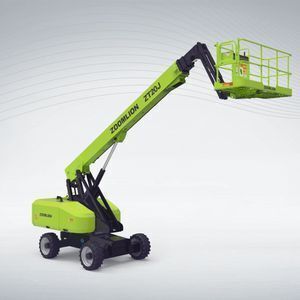

Zoomlion New 22m aerial work platform ZT20J telescopic boom lift for sale

Supplier: Sinomada Heavy Industry (Changsha) Co., Ltd.
Region: Hunan, China
Contact: Ms Lomen Fan
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Weight:	12200kg;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Packaging Detail:	RORO/Container;	Min. Lifting Height:	2.8m;
Supply Ability:	100 Set/Sets per Month;	Overall Dimensions:	22.71m*17.5m;
Place of Origin:	China;	After-sales Service Provided:	Field installation, commissioning and training;
Warranty:	1 year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Power:	--;	Local Service Location:	France,Germany,Philippines,Brazil,Pakistan,India,South Korea,Chile,Sri Lanka,Romania,Ukraine,Kyrgyzstan;
Table Size:	2.440.91m26.2;	Lift Mechanism:	Telescoping Lift;
Lift Drive / Actuation:	Hydraulic;	Port:	Shanghai/Qingdao;
Certification:	CE;	Showroom Location:	Viet Nam,Indonesia,Spain,Thailand,Kenya,Argentina,South Korea;
Brand Name:	zoomlion;

Product Description

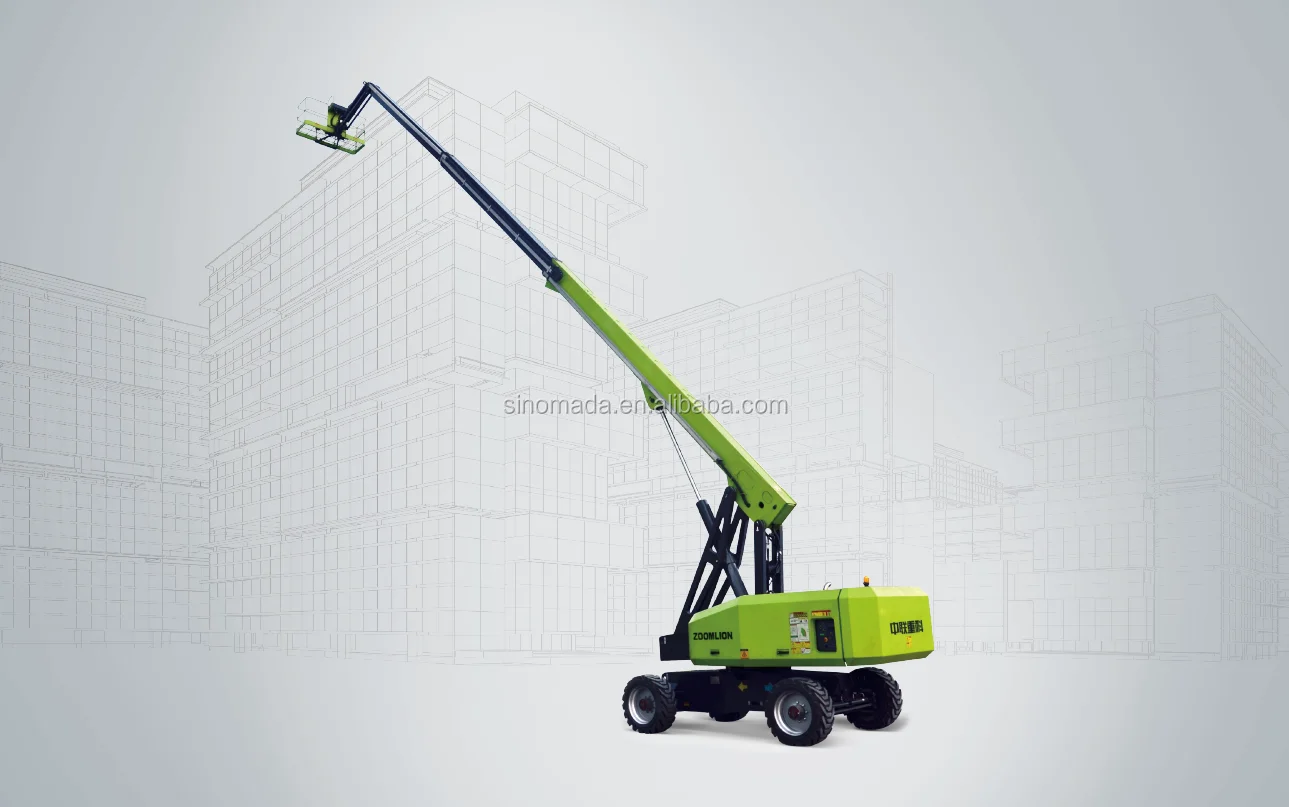

Features for Zoomlion New 22m aerial work platform ZT20J telescopic boom lift for sale

Zoomlion telescopic boom lifts are engineered to enhance working efficiency and offer greater horizontal outreach than any other type of aerial work platform. These units feature stable extension and great gradeability in rough terrain, offering a dual lift capacity of 300 kg unrestricted and 454 kg restricted. It is ideal for outdoor construction and industrial applications.

ZT26J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, it is designed to easily maneuver in tight spaces on construction and industrial sites. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Standard 2.44x0.91 m platform offers capacious and comfortable working space. Standard jib increases the maneuverability and provides a larger range of motion.

Specification

Specifications for Zoomlion New 22m aerial work platform ZT20J telescopic boom lift for sale

Main Specs of Telescopic Boom Lifts
Comply with CE/ANSI/GB Standard

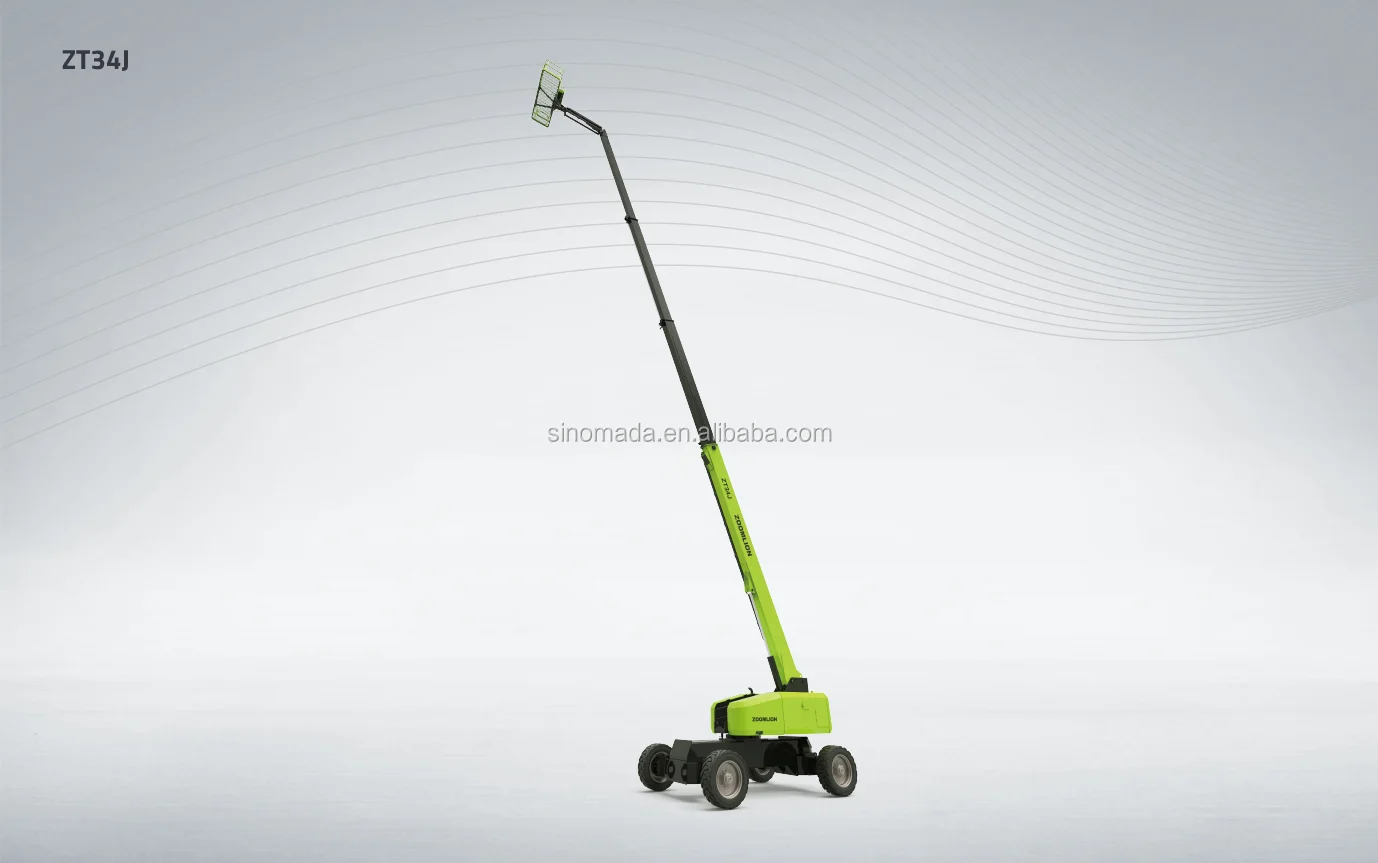

Model	ZT34J	ZT26J	ZT20J
Size
Work Height	36m	28.20m	22.75m
Platform Height	34m	26.20m	20.75m
Horizontal Outreach	23.50m	22.71m	16.80m
A - Stowed Length	13.50m	12.5m	10.36m
B - Stowed Width	2.49m	2.49m	2.49m
C - Stowed Height	3m	2.80m	2.78m
D - Platform Length	2.44m	2.44m	2.44m
E - Platform Width	0.91m	0.91m	0.91m
F - Wheelbase	3.80m	3.05m	2.52m
Wheelbase	2.05/3.41m	2.11m	2.13m
G - Ground Clearance	0.41m	0.40m	0.42m
Performance
Platform Capacity (Unrestricted/Restricted)	300/454kg	300kg/454kg	300kg/454kg
Drive Speed (Working)	5.5km/h	5.5km/h	6.0km/h
Gradeability	45%(24°)	45% (24°)	45% (24°)
Turning Radius (Inside)	2.80m	3.66m	2.4m
Turning Radius (Outside)	5.70m	6.86m	5.4m
Turntable Swing	360°continuous	360°continuous	360°continuous
Platform Rotation	±90°	±90°	±90°
Tail Swing	1.88m	1.60m	1.45m
Jib (Range of Articulation)	130°(55°~75°)	130°(55°~75°)	135°(60°~75°)
Max. Working Slope	3°	3°	3°
Max. Wind Speed	12.5m/s	12.5m/s	12.5m/s
Power
Engine	Kohler KDI2504TCR	Deutz TD2.9 L4/Cum QSF2.8	Deutz D447 L4/Perkin 404D-22T
Fuel Tank Capacity	200L	150L	130L
Control Voltage	12V DC	12V DC	12V DC
Hydraulic Tank Capacity	250L	150L	150L
Drive Mode	4WD	4WD	4WD
Steering Mode	Front-wheel/Rear-wheel/Crab	Front-wheel	Front-wheel
Tire
Type	IN445/50D710 Foam-filled Tires	15-625 Foam-filled Tires	355/55D-625 Foam-filled Tires
Weight
Gross	19200kg	18900kg	12200kg
