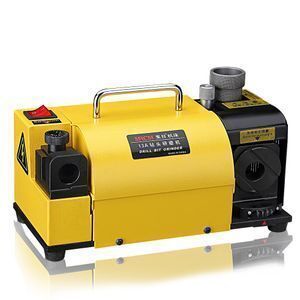

MR-13A 3-13mm industrial drill bit grinder drill bit sharpener

Supplier: Zhejiang Meiri Intelligent Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jack Yu
Price: $165.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V;	Port:	Shanghai/Ningbo;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Construction works ,Energy & Mining;	Warranty:	1 year;
Certification:	CE ISO;	Supply Ability:	100 Set/Sets per Day;
Power(W):	120W;	Model Number:	MR-13A;
point angle:	95(90)-135;	Remark:	it is not so easy to align the drill less than 3mm;
Payment Terms:	L/C,T/T,Western Union,Cash;	Power Source:	Electricity;
Collets:	eleven;	Key words:	drill bit sharpener;
Max. Grinding Diameter:	15mm;	grinding range:	2-13(15);
Dimension(LWH):	321819cm;	Brand Name:	MRCM;
standard grinding wheel:	CBN(HSS);	Type:	Universal;
CNC or Not:	Normal;	Max. Grinding Length:	Effective length of 60 mm;
Key Selling Points:	Easy to Operate;	color:	yellow and black;
After-sales Service Provided:	Online support,Video technical support;	After-sales Service Provided:	No overseas service provided;
Condition:	New;	Packaging Detail:	Exporting package, one machine in a plywood case;
Weight (KG):	10;

MR-13A industrial drill bit grinder drill bit sharpener

Product Description

1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

SPECIFICATION

Model	MR-13A
Grinding Range	Φ2-Φ13(Φ15)
Point Angle	95°(90°)~135°
Power	AC220V
Motor	120W
Speed	4400rpm
Dimension	321819
Weight	10kg
Standard Equipment	Grinding wheel :CBN (for HSS)×1
	Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13
	Collet chuck:(Φ2-Φ14)×1
Option Equipment	Grinding wheel :SD (for Carbide)
	Collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15
	Collet chuck:Φ15

Details:

MR-13A

DRILL BIT SHARPENER

More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATIONStill use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results

INSISTING ON ORIGINAL DESIGN FROM CHINA

Lip relief angle grinding Point angle griniding

10 SECONDS FAST GRINDING, MAKE DRILL RE-USE

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.

EASY TO DO THE DRILL SETTING

According the diameter of the drill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

EASY FOR DRILL GRINDING

According the parallel line of the grinding hole, insert the chuck, rotate left and right.

It can be finished at one time.

Standard accessories:

Collets ×11 pcs (Φ3-Φ13mm)

Grinding wheel ×1 piece

Standard is CBN for HSS material

Collet chuck ×1 piece

More products:


DRILL BIT SHARPENER	END MILL SHARPENER	CUTTING MACHINE	SCREW TAP GRINDER	DRILL BIT GRINDER

CHAMFERING MACHINE	CUTTER GRINDER	LATHE TOOL GRINDER	SAW BLADE GRINDER	BAND SAW BLADE ......

Permanent_Magnet_Lifter	SUCKER	VICE	TAPPIING MACHINE	TOOL GRINDER

Packaging & Shipping

EXPORTING PACKAGE, SAFE AND STABLE

Company Information

TAIZHOU MEIRI NEW ENERGY CO., LTD., a manufacturer specialized in developing & producing small special-purpose tool grinders, precision machinery tools. Main products include: CNC tool grinder, drill bit re-sharpener, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, air tapping machine, electric tapping machine, electric discharge machine, etc.

From research, development, management to sales, we implement the ISO 9001 quality control system strictly, continuously inventing, improving our management and ecnomic performance, providing professional and high quality products to satisfy and serve our globe customers' needs.

We have participated in more than 800 professional exhibitions. Our products have been applied for 41 national patents, gained CE certification.

CUSTOMER WITNESS:

FAQ

1.What is your advance? A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.

(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
