long distance range waterproof 2 way radio 5W labled 8W 10W 15W Handheld BaoFeng UV-9R IP67 walkie talkie

Click here to contact

Product details

Talk Range:	3-5km;	Brand Name:	baofeng;
baofeng uv-9r:	waterproof handheld radio;	waterproo 2 way radio:	baofeng 2 way radio waterproof Walkie Talkie;
Handheld radio:	Baofeng BF-9R Waterproof Walkie Talkie;	Type:	Handheld;
Function:	IP-67 Waterproof;	Output Power waterproof Walkie Talkie:	VHF 5W UHF 4W waterproof Walkie Talkie;
dual band waterproof radio:	waterproof two way radio;	Packaging Detail:	long distance range waterproof 2 way radio 5W labled 8W 10W 15W Handheld BaoFeng UV-9R IP67 walkie talkie Package Includes: 1 X Portable radio BF-UV9R 1 X Antenna 1 X Li-ion battery pack 1 X Charger 1 X Belt clip 1 X The sling 1 X User's manual;
Operating Voltage:	7.4V waterproof Walkie Talkie;	Supply Ability:	100000 Piece/Pieces per Month waterproof Walkie Talkie2 way radio;
Channel Spacing:	12.5kHz (Digital) 25/20/12.5kHz (Analog);	Model Number:	baofeng uv-9r;
Frequency Range:	400-520 136-174 MHz;	Battery capacity:	2000mAh;
Radio Type:	portable radio waterproof Walkie Talkie;	Storage Channel:	128 channels;
Place of Origin:	china;	Payment Terms:	L/C,T/T,Western Union,paypal;
Dimensions:	16043143mm;	Port:	xiamen shenzhen;

Product Description

Key Feature:

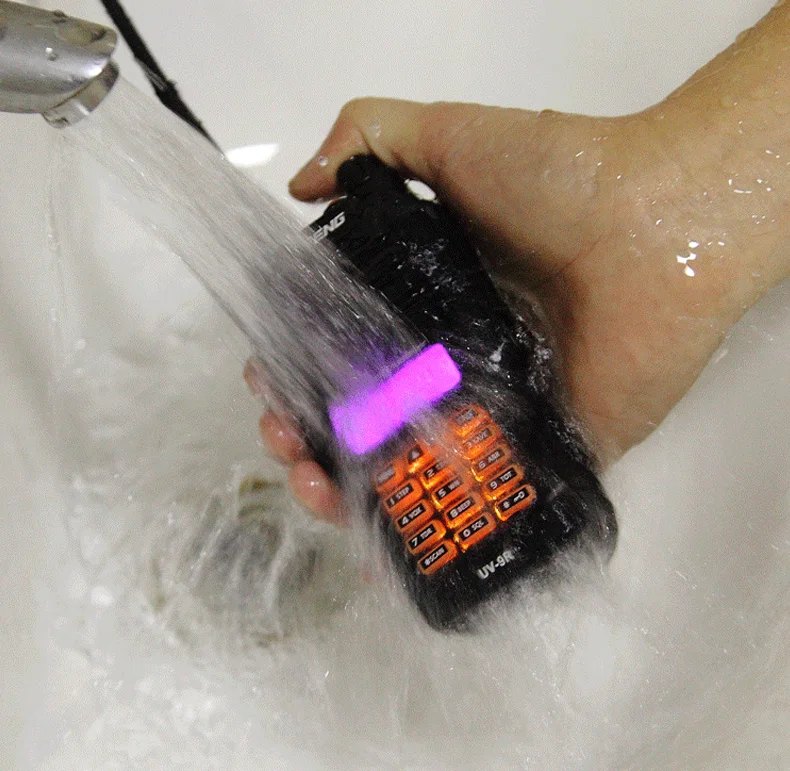

1) IP67 waterproof and dustproof (Not diving)

2) Relay Forwarding Confirmed (1750 HZ)
3) Dual Band, Dual Display and Dual Standby

4) High &Low Power Switchover
5) Battery Saving

6) VOX Function
7) Wide/Narrow Band Selection

8) Auto-Back Light
9) Dual Band Standby

10) Time-out Timer (TOT)

11) 50 CTCSS and 104 DCS Codes

12) Voice Prompt

13) ANI Code

14) PC or Manual Program
15) DTMF Code

16) PTT-ID
17) ATUO Keypad Lock

18) Busy Channel Lock Function
19) Low Battery Warning

20) Emergency Alarm
21) Priory Scanning Function

22) U/V Cross Band Dual Watch

Technical Specification:

General
Frequency Range	VHF:136-174MHz UHF400-520MHz
Channel Capacity	128
Channel Spacing	25KHz/12.5KHz
Antenna Impedance	50Ω
Microphone Impedance	600Ω
Operating Voltage	7.4V DC±15%
Frequency Stability	±2.5ppm
Battery	2200mAh(Polymer Li-ion)
Compatible With American Military Standard(Mil-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output	8W
Modulation Type	FM
Modulation Sensitivity	<15µV
Modulation Distortion	≤3%
Max Freq Deviation	<5KHz
Occupied Bandwidth	≤16KHz
Modulation Feature	±3dB
Spurious Radiation	≤7.5μW
Adjacent Channel Power	≤-65dB
Receiver
Sensitivity(12db SINAD)	≤0.15μ(12dB S/N)
Squelch Sensitivity	≤0.1μV
Audio Power output	1W/16Ω
Audio Respond	-6
Operation Bandwidth	>5KHz
Co-channel Rejection	≥-8dB
Blocking	≥85dB
Adjacent Channel Selectivity	≥65dB
Standby Current	60mA,15mA
Spurious Rejection	≥60dB
Intermodulation Resistance	≥60dB
