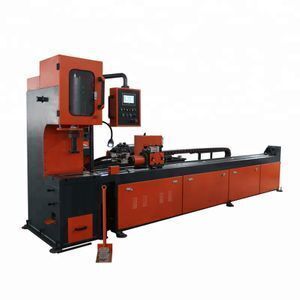

Hot sale Shelves Electric Automatic Metal Steel Pipe Tube CNC Hydraulic Hole Punching Machine Price

Supplier: Ermak CNC Machine (Nantong) Co., Ltd.
Region: Jiangsu, China
Contact: Mr Gary Gao
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	3.5-7.5T;	Power Source:	Hydraulic;
Lubrication oil:	Sinopec or Exxon mobil;	TFT human machine interface:	Human machine interface;
Dimension(LWH):	11500 X 2300 X 2500 mm;	CNC or Not:	CNC;
Power(W):	7.5kw;	Color:	optional Hole Punching Machine;
Packaging Detail:	Wrapped by plastic films and fixed by steel wires in the containers;	Operational function:	jogging/automatic;
Profile Steel:	Angle Steel, H-beam, I-beam;	Warranty:	One Year;
Hydraulic Oil:	46#;	Automatic or not:	Automatic;
Memory Function:	Can be stored and memorized;	Port:	ShangHai;
Condition:	New;	Supply Ability:	60 Set/Sets per Month power press machine;
Brand Name:	ERMAK;	Name:	Punching Machine;
Certification:	CE ISO;	Voltage:	380V/220V Optional;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Jiangsu China;
MACHINE STRUCTURE:	ERMAK MACHINERY;	After-sales Service Provided:	Online support;

Hot sale Shelves Electric Automatic Metal Steel Pipe Tube CNC Hydraulic Hole Punching Machine Price

Structural features

With CNC sawing machine can cut the finished pipe automatically,Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.
Structure:Steel plate welded structure.

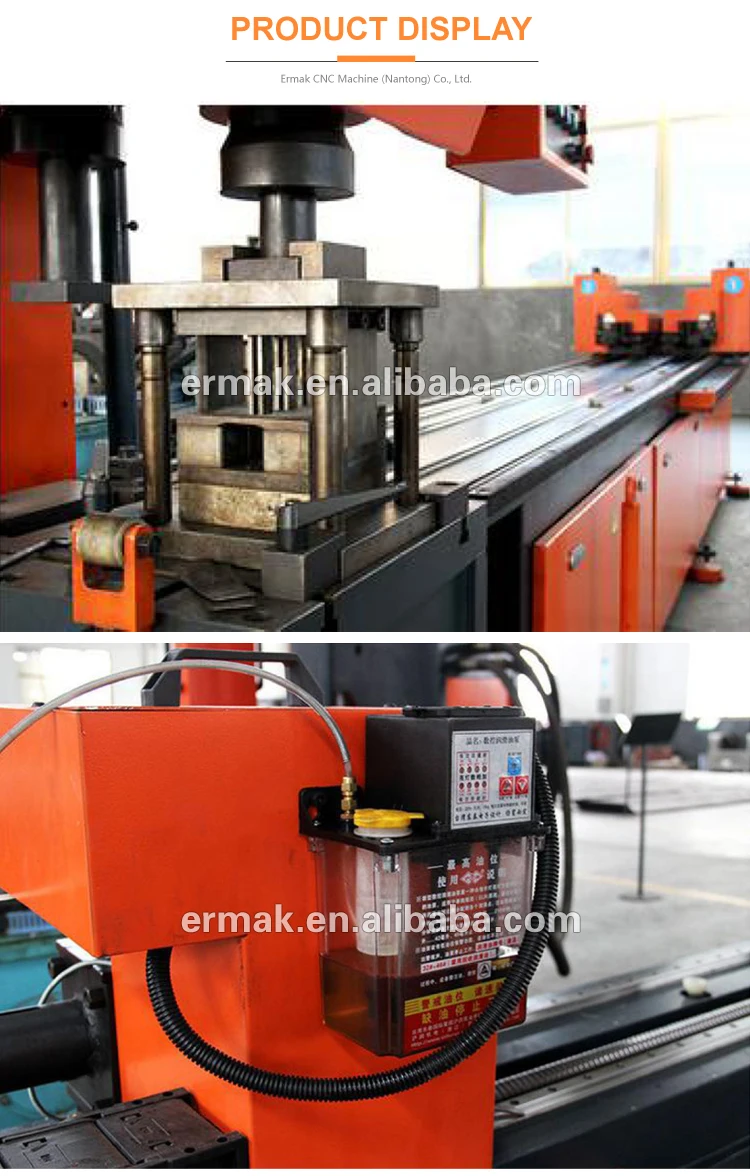

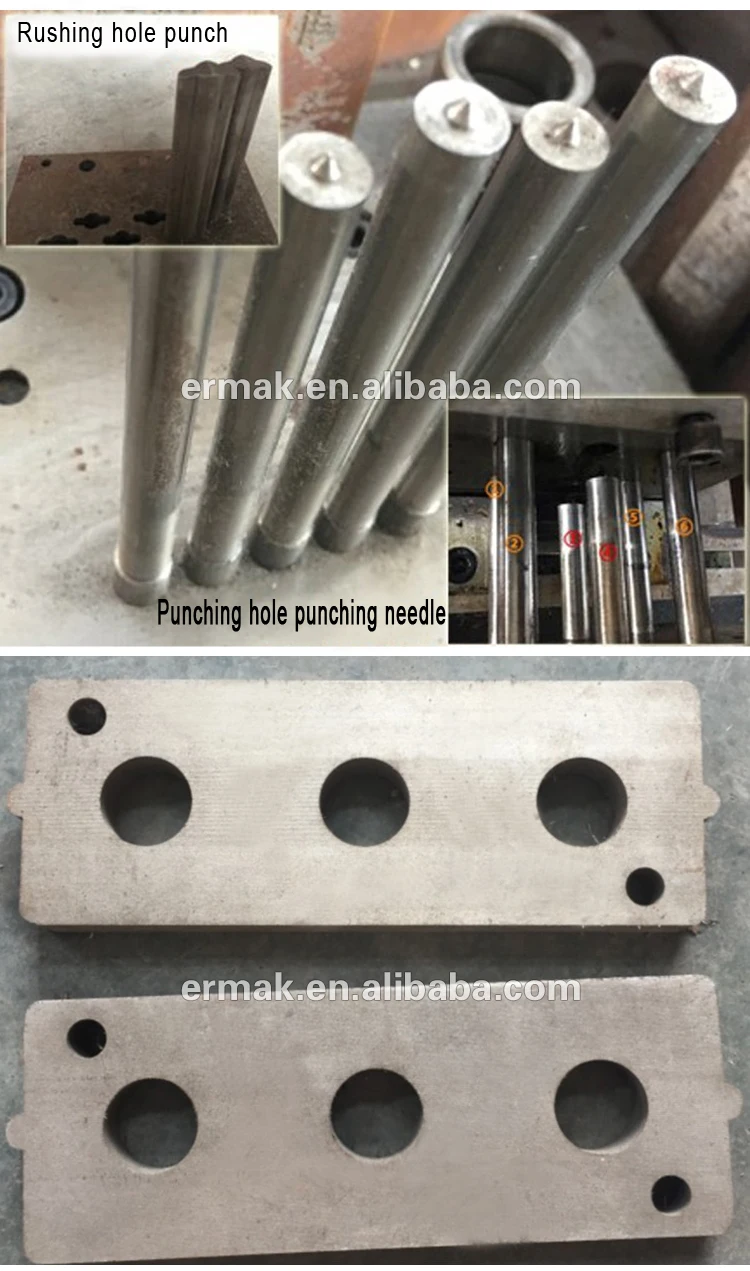

Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.

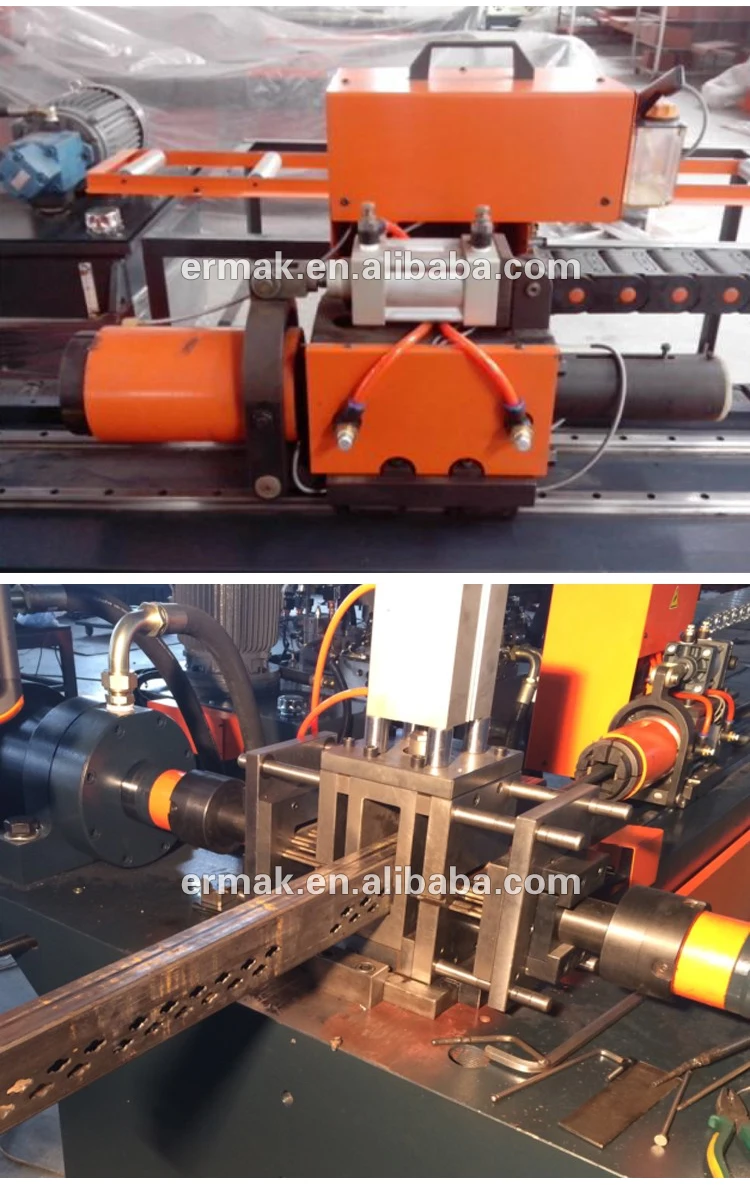

Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching.
Hydraulic and Servo System.
Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

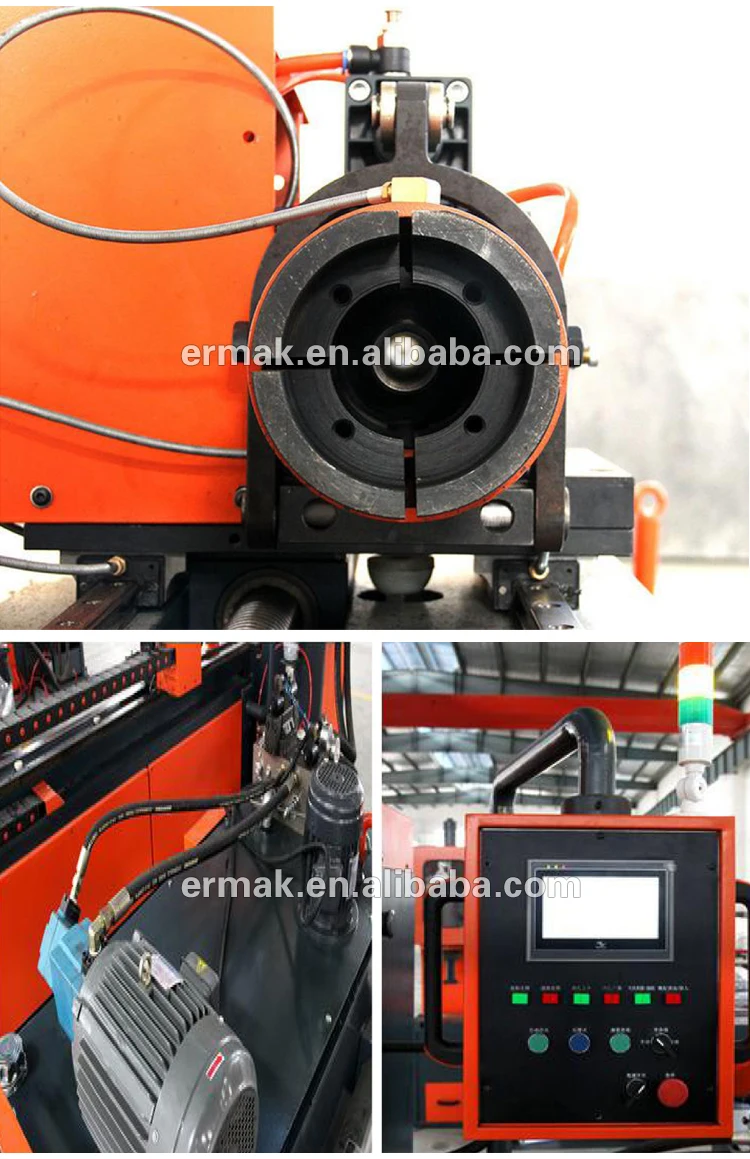

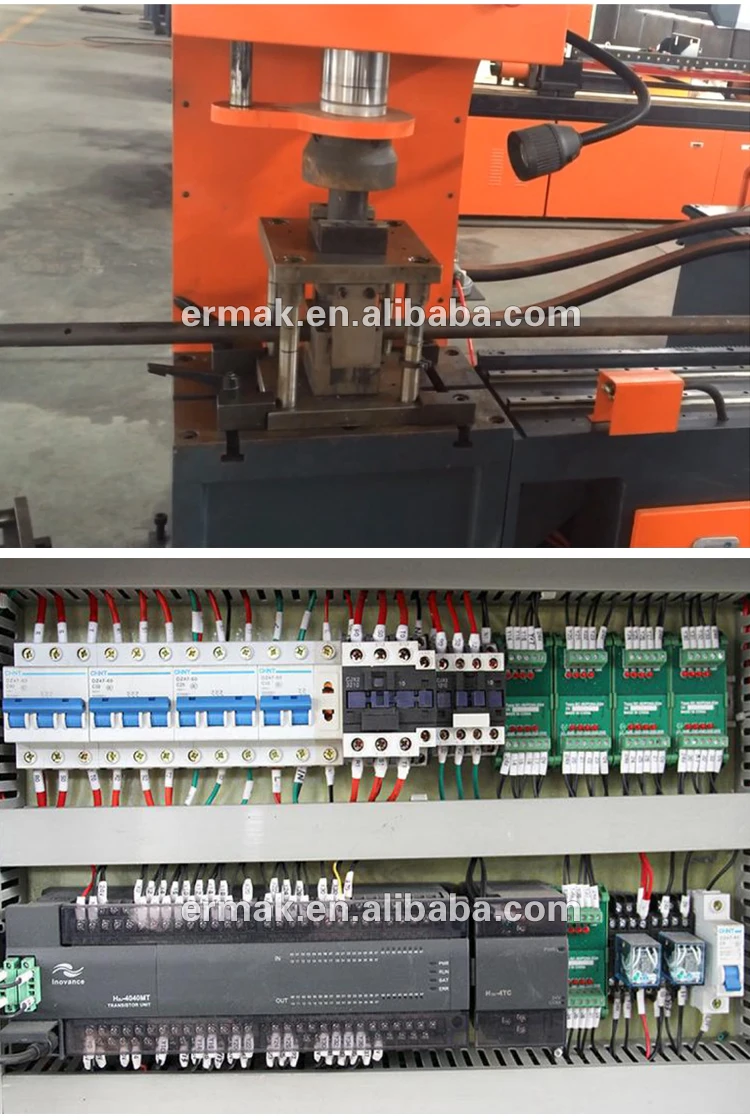

The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Technical parameter

Item	Parameters
Model:JG-3/10000	1200×1500×2300 MM
Processing range	Punching materials: iron, aluminum, copper, stainless steel etc.
Type of processing	All linear material punching
Processing Kinds	Single punching,
	Not equidistant punching,
	Isometric punching
Options	Customized hole sizes
Options	Rotate 360°punching
Standard	Single or bilateral thrust(In order)
Hole diameter and thickness	Φ21.5×τ7.5
Channel C Size	UNP 100-160
	Can be customized for different material
Punching holes distance	0.1mm-10000mm
Punching speed	1.5 seconds/one hole(150mm stroke)
Max punching distance	10000mm
standard length of processing	10000mm
Maximum speed of Servo feeding	40000mm/min
Transmission parts	rack-and-pinion drive
Main motor power	15kw( single line)
Option	Frequency conversion motor(Optional)
Ram pressing pressure	Horizontal punching 40 TONS X 2
Ram pressing pressure	Vertical punching 60 TONS
Slow mold function	Standard configuration
Push cylinder function	Optional for single line
Push cylinder function	Standard configuration for double line
TFT Controller interface	Taiwan delta control system
TFT Controller interface	Delta touch screen setting
	TBI(Taiwan) or silver (Taiwan) linear guide
	DELTA servo
Storage memory function	Memory 0-99 group processing mode

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
