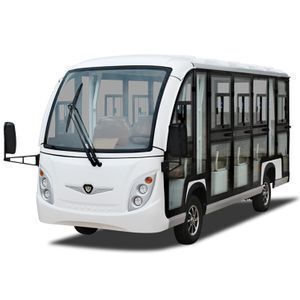

17 Seater Red Electric Sightseeing Buggy Bus With 6V230AH Battery

Click here to contact
Product details
Place of Origin:China;Port:Tianjin Port,China;
Charging Time:8-10hours;Brand Name:Zhongyi;
Packaging Detail:Container;Battery:6V230AH;

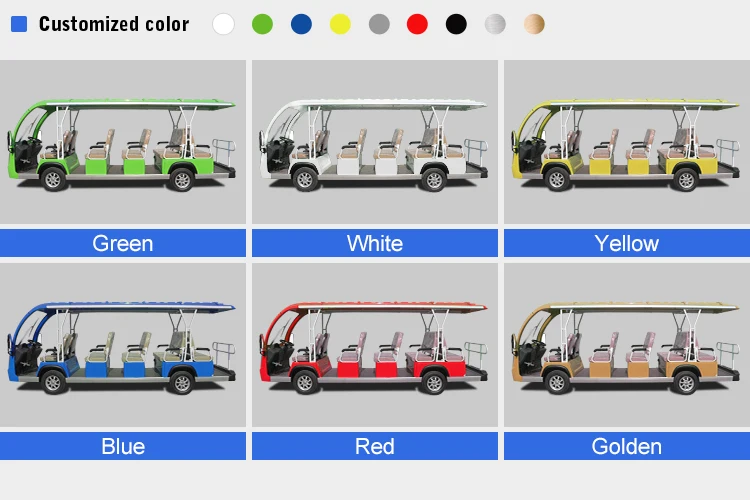

Color:Red;Type:Sightseeing Car;
Motor:9kw Motor;Max. Speed:28km/h;
Seats:23;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand:Zhongyi;Supply Ability:3000 Piece/Pieces per Year;
Power:Electric;Place of Origin:Tianjin,China;
Product Overviews



Product Display

Model

GD17-A17+F

Qty/40′(assembled)

1Units

Performance

Passenger Capacity

17 Seats

Max.Speed

28-30km/h(adjustable)

Range

110-120km

Climbing Ability

<20%

Braking Distance

<5m

Mini Turning Radius

8.2m

Min.Ground Clearance

130mm

Recharge Time

8-10hours

Dimension

L*W*H

6050*1500*2080mm

F/R Tread

1240/1220mm

Axle Distance

3665mm

Net Weight

1160kgs

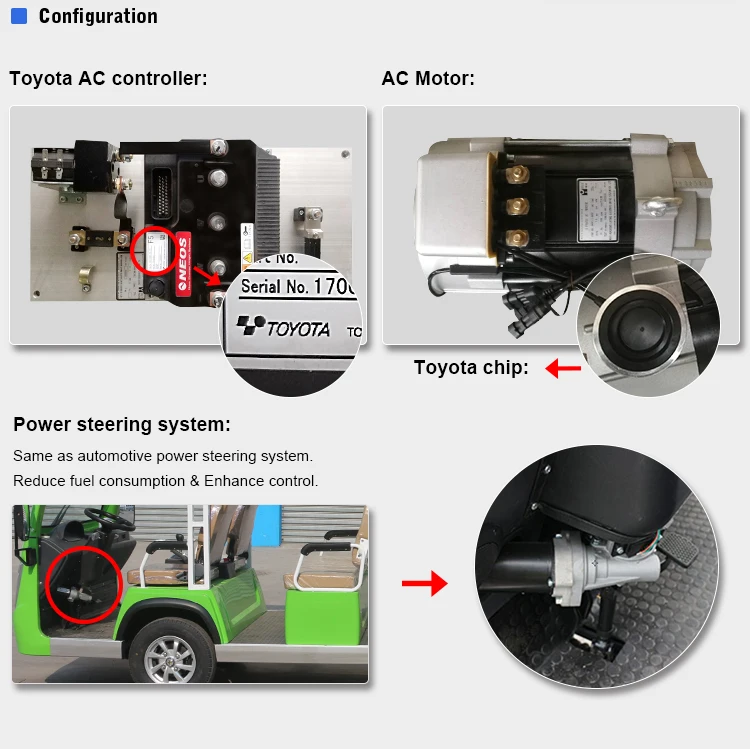

Standard Configuration

Motor

72V/5.5 KW DC motor

Controller

USA Crutis Controller

Battery

Huge capacity deep cycle lead-acid battery  6V/piece  12 pieces  230Ah

Body & Roof

Injection molding modeling design separable replacement with all aluminum frame

Windshield

Laminated Glass with wiper

Seats

Sponge& artificial Leather,the seaters of driver and co-driver are adjustable

Rear View Mirror

2 pcs

Tire

Aluminum alloy hub ,155R12C

Chassis

High strength structural steel

Steering

Gear steering& auto backlash compensation&electronic power steering

Braking System

Front disk &rear drum ,double circuit hydraulic brake& hand brake

Front Axle

Mcpherson independent suspension  Spiral spring & cylinder hydraulic shock absorption

Rear Axle

Integral rear axle, Non independent suspension, leaf spring &cylinder hydraulic shock absorption

Lighting System

Combination LED front light (turning light, high beam, dipped light) rear light (turning light, brake light) driving & reverse buzzer.

Charger

On board charger

Dashboard

Plastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder

Removable door

12 tempered glass doors and 1 rear glass



Product Details



Related Products

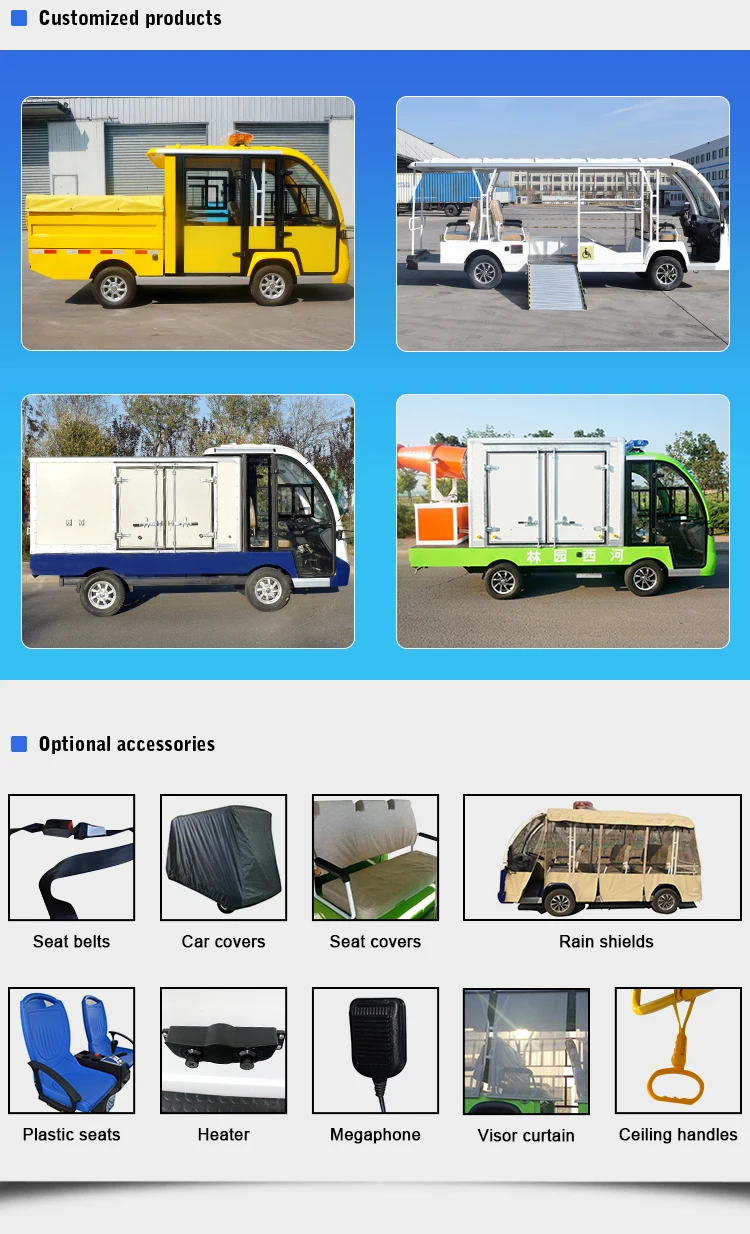

Accessories



Company Information



Why Choose Us



FAQ

Q1. What is your terms of packing?
A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: It takes about 30 days after receiving your advance payment.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
