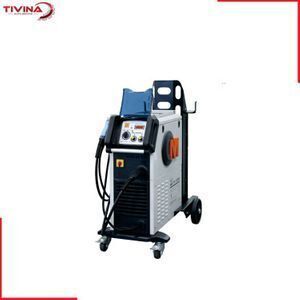

2019 new Car workshop MIG Spot welding machine for Car body collision repair (FY-5288/2E)
-
Supplier: Guangzhou Tivina Import And Export Trading Co., Ltd. -
Region: Guangdong, China -
Contact: Ms. Selena Wong -
Price: $650.00 /set -
Min. Order: 1 set
| Gross weight per batch: | 95 KG; | Brand Name: | FY-tech; |
| Phase: | 380V, 3phase; | Package size per batch: | 88X40X89 cm; |
| Package Type: | Woodcase; | Selling Units: | Multiple of 1; |
| Weight: | 95kg; | Model Number: | FY-5288/2E; |
| Max Wire Diameter: | 1.0mm; |
MIG welding machine

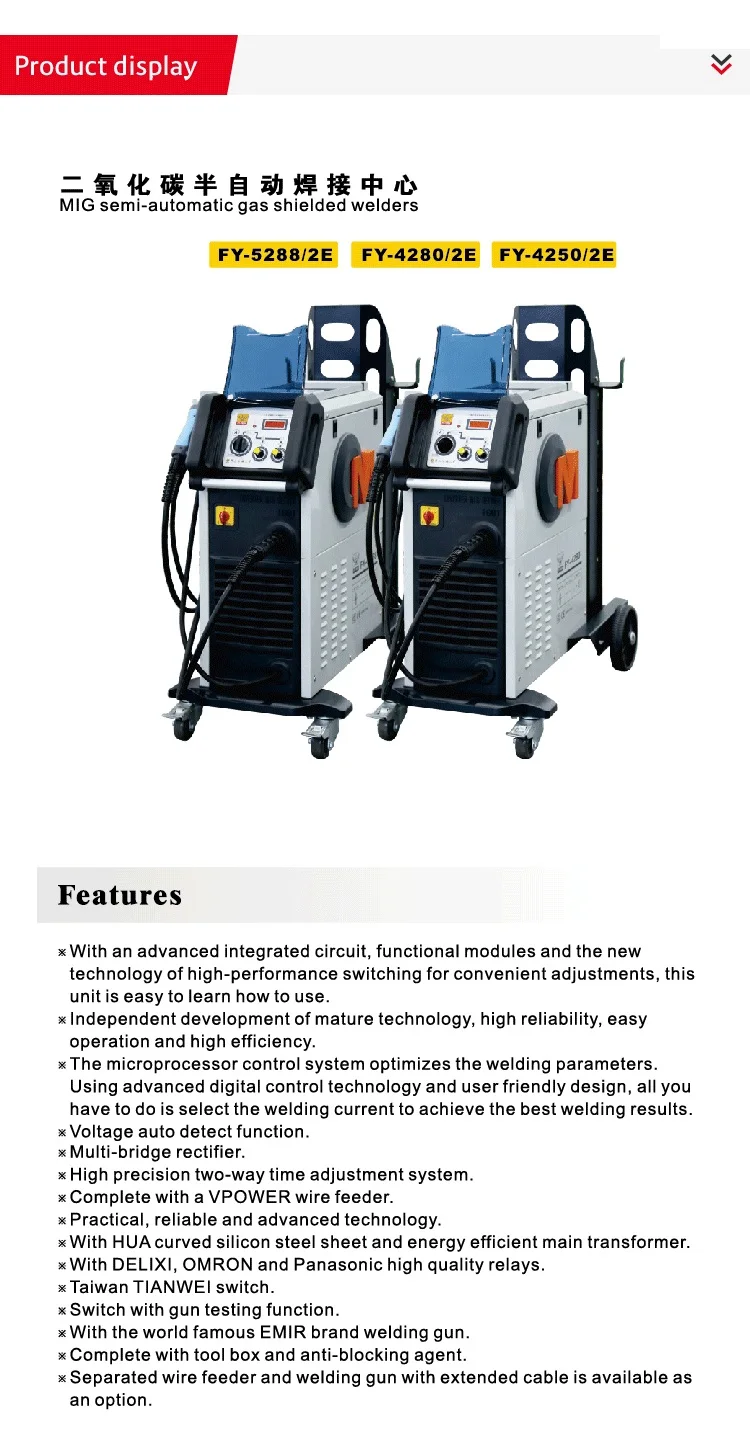

Features:
With an advanced integrated circuit, functional modules and the new technology of high-performance switching for convenient adjustments, this unit is easy to learn how to use.
Independent development of mature technology, high reliability, easy operation and high efficiency.
The microprocessor control system optimizes the welding parameters.
Using advanced digital control technology and user friendly design, all you have to do is select the welding current to achieve the best welding results.
Voltage auto detect function
Multi-bridge rectifier
High precision two-way time adjustment system
Complete with a VPOWER wire feeder
Practical, reliable and advanced technology
With HUA curved silicon steel sheet and energy efficient main transformer.
With DELIXI, OMRON and Panasonic high quality relays.
Taiwan TIANWEI switch.
Switch with gun testing function.
With the world famous EMIR brand welding gun.
Complete with tool box and anti-blocking agent.
Separated wire feeder and welding gun with extended cable is available as an option.

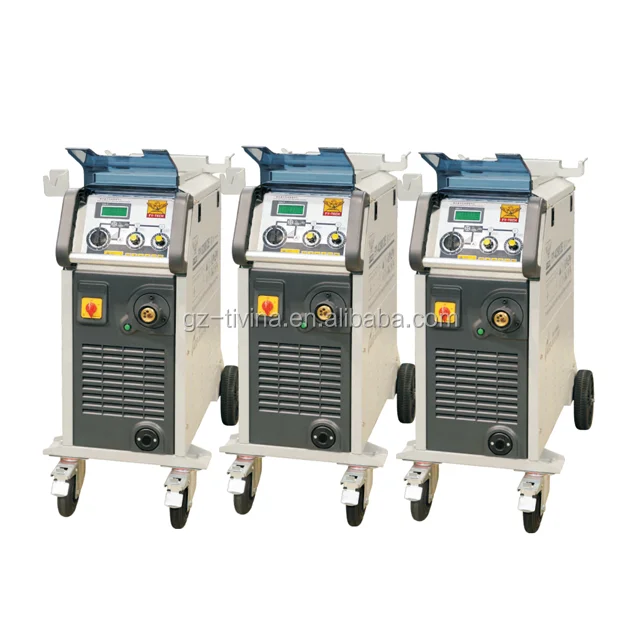

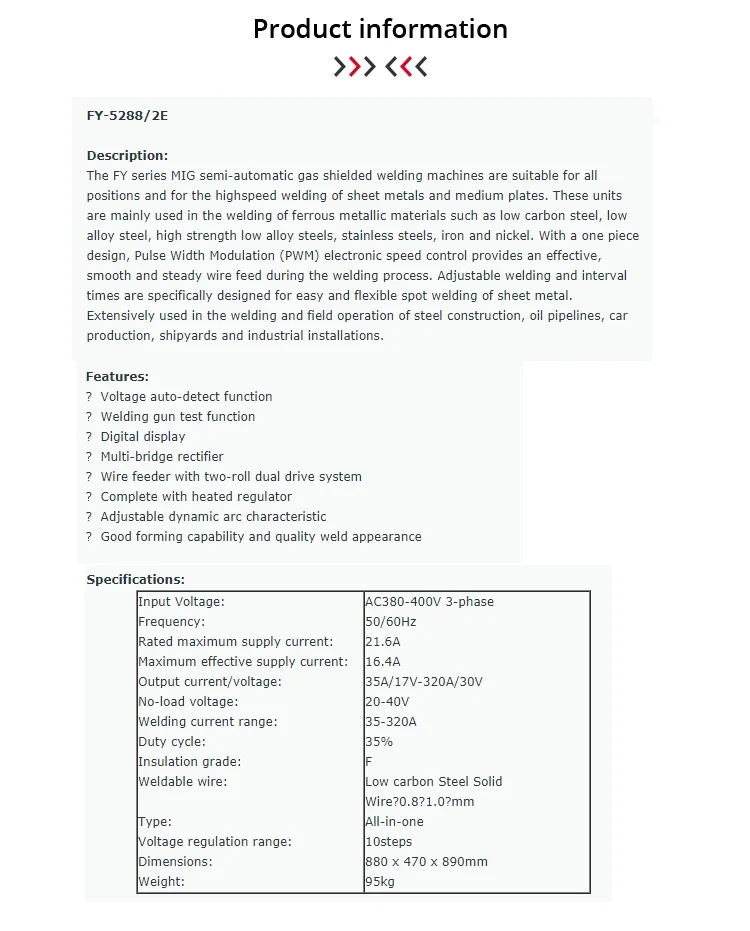

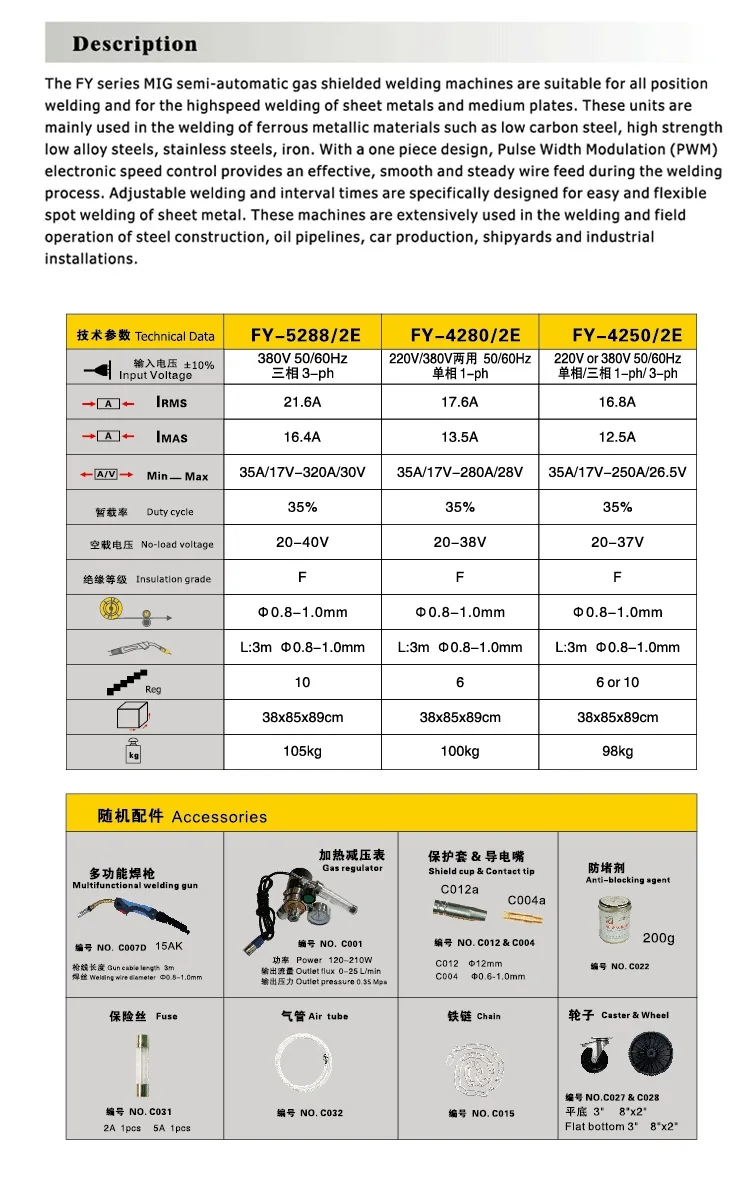

Technical Data | FY-5288/2E | FY-4280/2E | FY-4250/2E |
Input voltage ±10% | 380V 50Hz/60Hz | 220V/380V 50Hz/60Hz | 220V/380V 50Hz/60Hz |
Max rated input power | 21.6A | 17.6A | 16.8A |
Output current | 35A/17V-320A/30V | 35A/17V-280A/28V | 35A/17V-250A/26.5V |
Duty cycle | 35% | 35% | 35% |
No-load voltage | 20-40V | 20-38V | 20-37V |
Insulation grade | F | F | F |
Wire diameter | f0.8-1.0mm | f0.8-1.0mm | f0.8-1.0mm |
Voltage regulation | 10 | 6 | 6 or 10 |
Package | 38x85x89cm | 38x85x89cm | 38x85x89cm |
Net weight | 105kg | 100kg | 98kg |
No. | Accessories |
|
C007D | Multi-function welding gun | Cable length 3m, welding wire 0.8-1.0mm |
C001 | Gas regulator | Power 120-210W Outlet flux 0-25L/min 0.35Mpa |
C012 | Shield cup | f12mm |
C004 | Contact tip | f0.6-1.0mm |
C022 | Anti-blocking agent | 200g |
C031 | Fuse | 2A 1pcs, 5A 1pcs |
-
