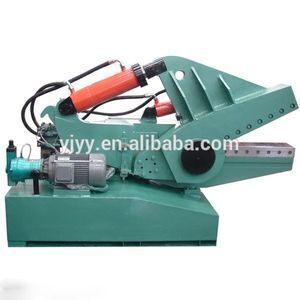

High quality alligator hydraulic sheet metal shear cutting machine

Product details
Supply Ability:30 Set/Sets per Month scrap metal shears for sale;Material / Metal Processed:Brass / Copper,ALLOY,Carbon Steel,Aluminum,Stainless Steel;
Port:SHANGHAI;Work Efficiency:11-25 Cuts/Minute;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Max. Opening:340-420 mm;Keyword:hydraulic sheet metal cutting machine;
Max. Cutting Force (Ton):160;Machine Type:Alligator Hydraulic Shears;
Max. Pressure:25 MPa;After-sales Service Provided:Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:ECOHYDRAULIC;Max. Shearing:30x400 mm (steel plate Q235);
Weight (KG):3500;Length of Blade:600/700 mm;
Place of Origin:Jiangsu China;Nominal Pressure:1600 KN (160 Ton);
Operation Mode:Auto/Manual;Product name:High quality alligator hydraulic sheet metal shear cutting machine;
Dimension:2100x800x1550 mm;Key Selling Points:Multifunctional;
Packaging Detail:nude or in wooden case with plastic wrapping. As customized requirement.;Condition:New;
Warranty:1 year;Power (kW):15;



Product Description
High quality alligator hydraulic sheet metal shear cutting machine





1. Application    scrap metal shears for sale



The new design integrated mechanical, electrical and hydraulic system together, used to cut different sized tube and pipe materials







2. Features   scrap metal shears for sale

  • Hydraulic Acceleration System: Original & unique hydrauylic acceleration system without increasing the power of motor or oil displacement. The movement speed of mouth opening doubled.
  • Integrated Design: parts are integrated to one frame, free of installation and commission, prolong the lifetime of machine and also convenient for  transportation.
  • Large Open Mouth: The new design mouth allows to cut larger materials, increase the scope of use.
  • STD Sealing Parts: by using STD sealing parts, the lifetime and working stability has been increased obviously.

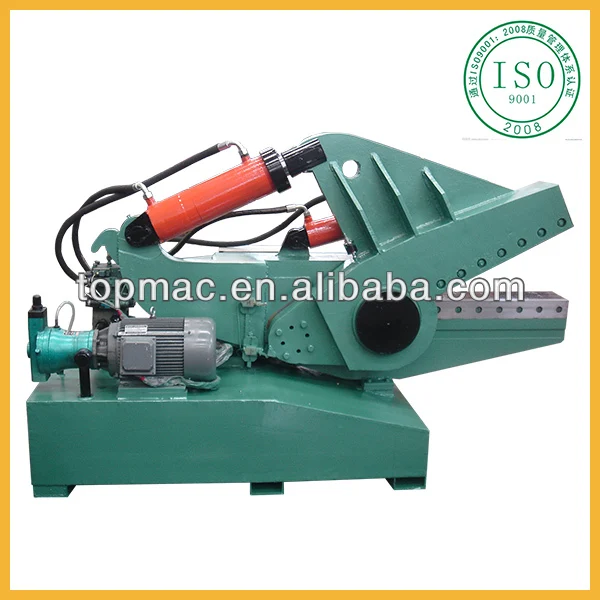

3. Product Demonstration   scrap metal shears for sale

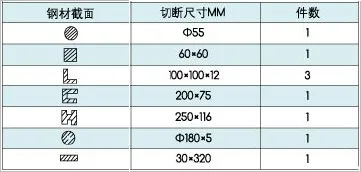

 4. Technical Specifications    scrap metal shears for sale



Nominal pressure

KN

1600

165

inner diameter of main cylinder

mm

Φ160

Φ100

piston diameter

mm

Φ105

Φ65

stroke

mm

380

160

max.pressure

Mpa

25

motor

1set

  15KW

pump

1set

63YCY14-1B











Packaging & Shipping







5. Pack and Transportation

  • We have freight forwarder as good cooperation partner; we also have the export trading permission to reduce costs and save your valuable time.
  • We offer wood case and/or plastic wrapping to keep machine safe.










Our Services







6. Custom Service

  • We provide Services to translate Operation Manuel and OtherDocuments into your language, worry-free to operate andmaintain
  • 7x24 Technical Phone Service, we do care your real problemsanytime



Company Information







7. Sales Experience

  • We have many years’ sales experiences; we accept various payment methods for your convenience.
  • Multiple protection methods are applied to the machine in order to lower potential risks during delivery process, we are trying to make our service better to make sure every set of machine is delivered perfectly.
8. Customs and Expos
  • We have had over 160 oversea customers from over 16 countries since 1997.
  • We have been to 6 countries’ expos including 3 continents.

 9. Qualifications

  • We have got ISO9001 certificate and over 13 national patents and are getting more now.



FAQ

1. Are you a factory or a trade company?

We are manufacturer with own factory for more than 25 years, export proportion 50%~60%.



2. How can I trust your company?

A. With professional design and sales team, we can serve you the perfect solution with lowest cost.

B. Assessed by third party, national patents for all equipment.

C. Welcome to inspect any time, we are near Shanghai airport.

D. About the machine, we are the first manufacturer of briquette machine, hydraulic balers, alligator shears, shredders are also our main products.



3. Is your price competitive?

Surely.We will give you best factory price based on superior product and service.
