200w 300w 400w 500w 1000w co2 laser tube wholesale

Product details
Place of Origin:Beijing China;Spare Parts Type:laser tube;
Brand Name:EFR;application:co2 laser engraving, cutting.etc;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Weight (KG):10 KG;
Output power:150w etc.;Key Selling Points:Easy to Operate;
Length:1250+/-20mm 1450+/-20mm 1650+/-20mm 1850+/-20mm 2050+/-20mm;Warranty:6 Months;
Packaging Detail:in carton or wooden cases;After-sales Service Provided:Free spare parts,Video technical support,Online support;
Supply Ability:1000 Piece/Pieces per Month;Product name:150w engraving and cutting co2 glass laser tube;
Lifetime:10000 h;After Warranty Service:Video technical support,Online support,Spare parts;
technology:glass to metal adjustable tech;Diameter:80mm;
Showroom Location:Egypt,Canada,United Kingdom,Italy,India,Russia,Australia;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Local Service Location:Egypt,Canada,United Kingdom,United States,Italy,India;Condition:New;
After-sales Service Provided:No overseas service provided;Material:Glass to Metal;
Port:Beijing/Tianjin;

200w 300w 400w 500w 1000w co2 laser tube wholesale



ZS series is the enhanced CO2 laser tube with 10000 hours lifespan and it began producing in September 2015 after years of development.The power of a single laser tube is up to 185W and this series has stable luminous performance. The discharge tube is coated with catalyst to increase its working life.This ZS series CO2 laser tube has the advantages of small size, good spot mode, high cutting speed compared to similar products.

Product Parameters



Model

Length

(mm)

Diameter

(mm)

Output Power

(W)

Max Power   (W)

Current

(mA)

CatalystLifespanWarranty   Period
ZS-12501250±20Ø80±2809528Yes10000h360days
ZS-14501450±20Ø80±210012030
ZS-16501650±20Ø80±213015030
ZS-18501850±20Ø80±215016530
ZS-20502050±20Ø80±217018530

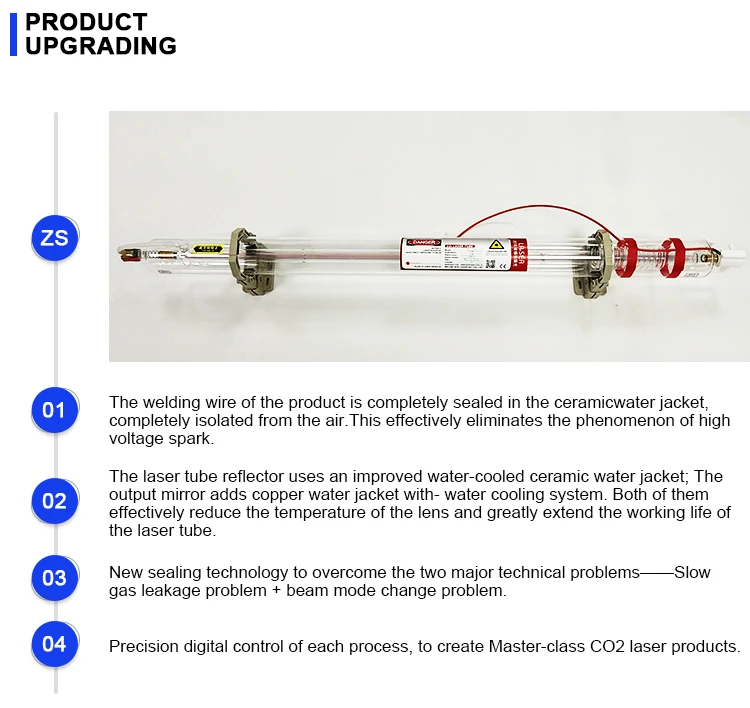

Product Upgrade

Product Details

The discharge raw glass tube is imported from Germany. The complete glass tube quality is under control.

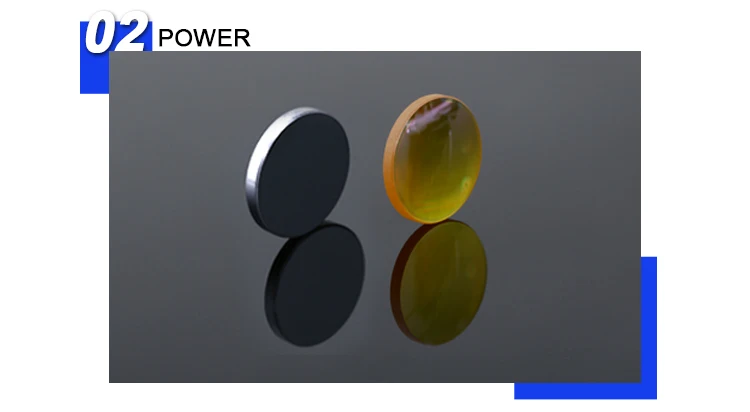

ZS series laser tube is equipped with mirror and output mirror from the world’s leading manufacturer II-VI infrared in United States. The maximum output power is up to 185w and the output power density is high.

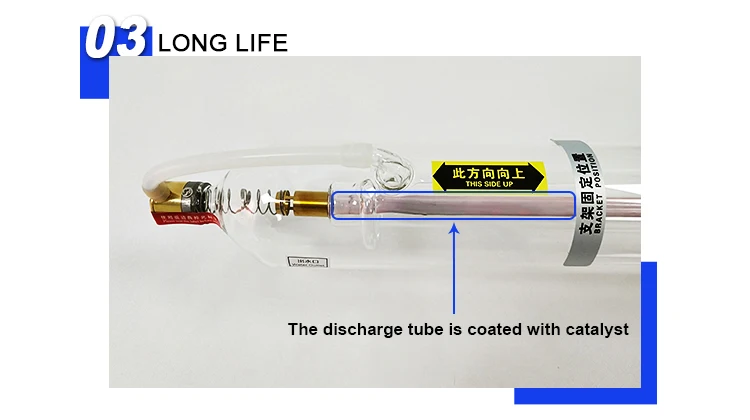

The discharge tube coated with catalyst, matched with the electrode treated by a special process, ensure the discharge more stable and the service life can reach up to 10000 hours.

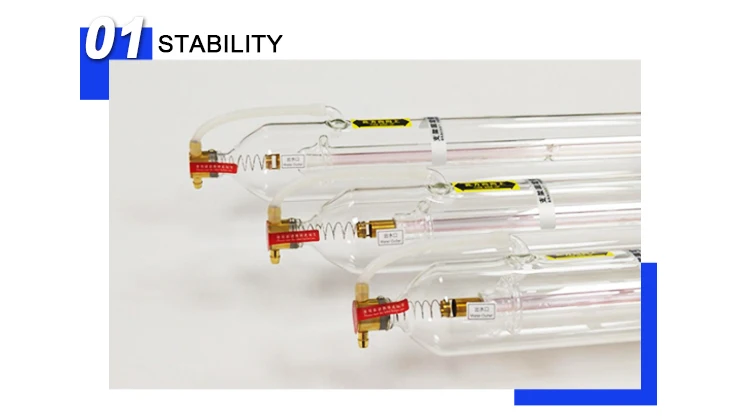

Stable cavity structure, makes the beam more concentrated and  more stable, and brings more uniform light spot, better beam mode, higher efficiency.

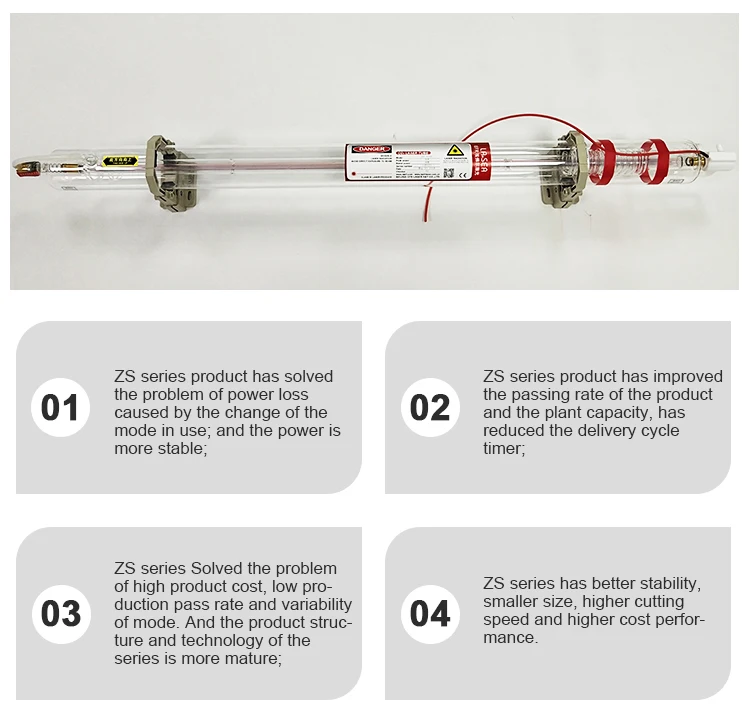

Product Advantage

Application Field

Applicable to all kinds of small and medium-sized non-metallic laser cutting machine, such as clothing, leather, textile, paper cutting, acrylic cutting and other materials.

Product Packaging

Company Introduction

Beijing EFR Laser S&T Co., Ltd. is a high-tech company that devotes to CO2 laser tube and related products research, development and production up to 20 years. We have tens of CO2 laser patent. Our annual production quantity is more than 100000 pieces and our unique catalyst technology ensures that the CO2 laser tube chemical life up to two years.

In CO2 laser tubes field, EFR has professional technology and rich experience in research, development, and production. We have a group of skilled workers, ultra-clean laser tube workshop, tens of production lines.Our productions had been exported to more than 100 countries and regions and obtains good reputation in the domestic and international market.

On an extremely competitive market,EFR is a trusted CO2 laser tube manufacturer that delivers quality products and comprehensive after-sales services. We take numerous steps to develop innovative technology and carry out scientific management processes to provide advanced and reliable products at an unbeatable level of service for our customers.
