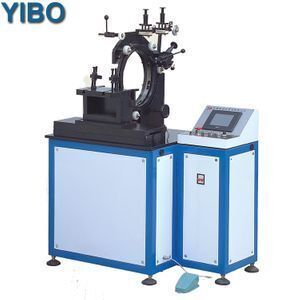

China Factory made High precision small transformer toroidal winding machine manufacturer YE-480D

Supplier: Yibo Automation Equipment Co., Ltd.
Region: Jiangxi, China
Contact: Ms Susan Lei
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Winding Speed:	100rpm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	1000 Set/Sets per Year;	How about our sales situation:	in China market, we own 80% market;
Enamelled wire diameter:	0.5-2.6mm;	Application:	for voltage transformer secondary winding;
Voltage:	380V/220V;	Condition:	New;
Power(W):	1.5KW;	Type:	Transformer Winding Machine PT winding machine Secondary Winding;
Coil max.rotation diameter:	400mm;	Coil min.rotation diameter:	200mm;
Weight:	300KG;	Port:	Shanghai, Shenzhen, Ningbo;
Certification:	ISO, CE;	Brand Name:	YIBO;
Packaging Detail:	China Factory made High precision small transformer toroidal winding machine manufacturer YE-480D, Standard exported wooden boxes.;	Place of Origin:	Jiangxi China;
Coil. max.width:	120mm;	Dimension(LWH):	70011001350MM;
Warranty:	1 YEAR;	Payment Terms:	L/C,T/T;
PLC:	Japan Mitsubishi;

China Factory made High precision small transformer toroidal winding machine manufacturer YE-480D

Product Description

Main technical parameters
Model	YE-480D	YE-480DM
Diameter of windable electromagnetic wire	φ0.5~2.6mm	φ0.5~2.6mm
Max transverse motion distance of working bench	400mm	400mm
Max longitudinal motion distance of working bench	200mm	200mm
Max outer diameter of winded secondary coils	120mm	120mm
Max breadth of winded coils	380mm	380mm
Max winding rotation speed	100rpm	100rpm
Max power of winding motor	1.5kW	1.5kW
Max outline size of machine tool	65010001350mm	70011001350mm
Color	Blue,Calx,Customizable	Blue,Calx,Customizable

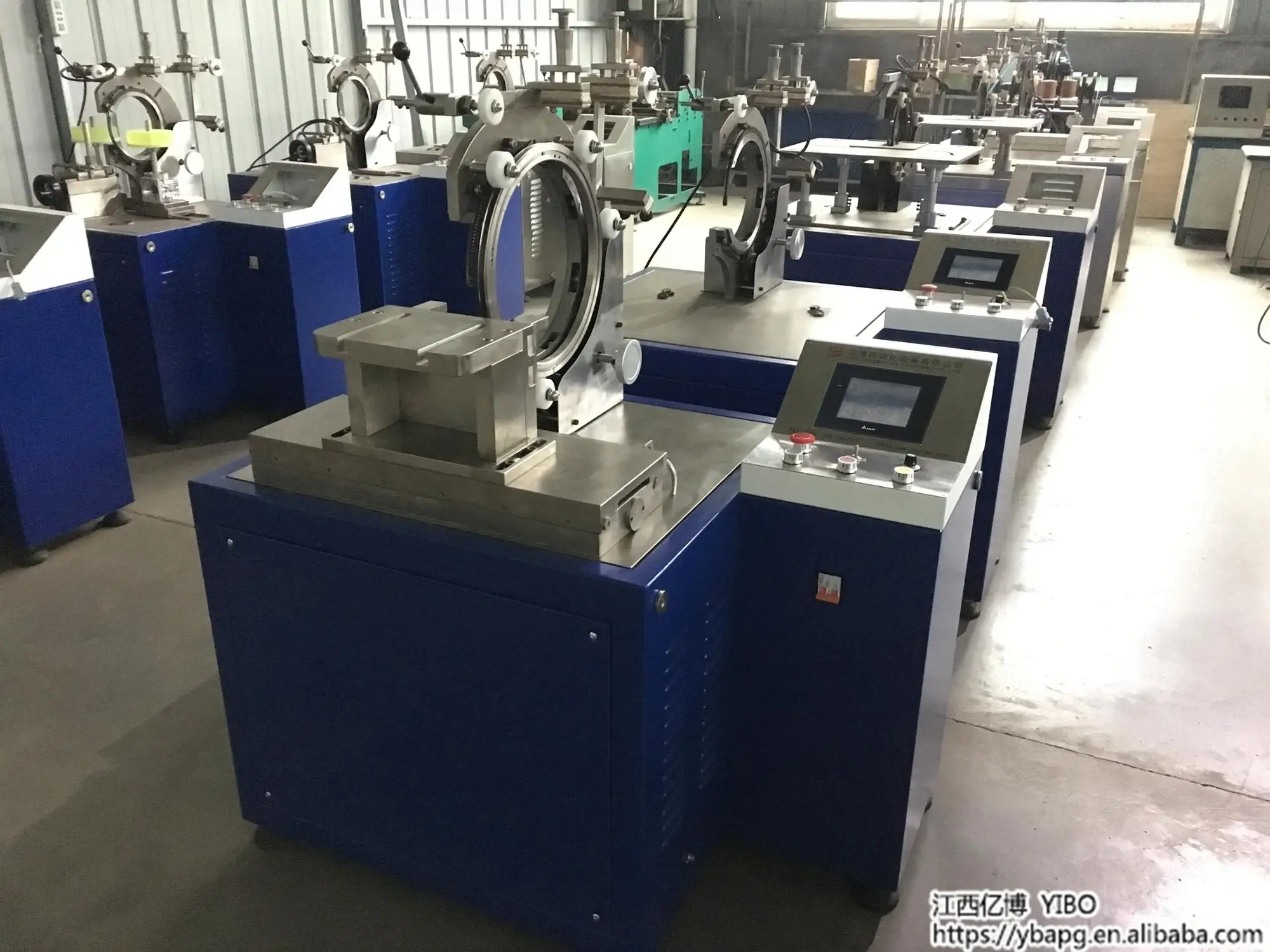

Main products

Company profile

Certifications

Packaging Shipping

FAQ

Q: What does “FOB”“CFR”and “CIF”Mean?
A: FOB=free on board with China loading port
CFR=CNF=cost and freight charge with destination port
CIF=CFR+Insurance with destination port

Q: What's consists of equipment for your APG whole production line?
A: APG Machine-APG Mold-Curing Oven-Air compressor-Mixing Material-Release Mould Agent-
Xylene germicides.

Q:What information do we need before quote?
A: Your product's diameter and photo or drawing.

Q: How about your installation & debugging and after-sale service?
A: Our engineer go to the oversea for the installation and debugging availably,and we
provide one-stop sevice and machines lifelong maintenance.On site test and inspection
available.

Q: How about your experience in this field?
A: We have 24 years experience in this field.Until now,we have 19 items patents.

Q: Is it one-stop service company in electric power equipment industry?
A: Yes,Oyr products cover APG Clamping Machine,APG Molds & Injection Toroidal Winding
Machine (CT & PT),Transformer Foil Winding Mach Molds,Marking Machine.

Q: What is your delivery time?
A: It takes around 50 working days.

Q:How's the packing way?
A:The machine with plastic film and others parts use wooden case for safety.

Q: What's the shipping port?
A: Shanghai,Shenzhen,Ningbo,Qingdao etc.

Q: What's the payment terms?
A: Telegraphic transfer(TT),Letter of credit.

Q: What is your factory location?
A: Our factory locates in Pingxiang City,Jiangxi province.Nearest air port:Changsha
airport.High speed railway station:West Zhuzhou station.All above take 1.5 hours
driving.
