Factory motors for floor mounted 1000kg jib crane

Supplier: Henan Zoke Crane Co., Ltd.
Region: Henan, China
Contact: Mr Bryan-Henan Zoke Crane
Price: $2800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	https://sc02.alicdn.com/kf/HTB1IdGLXYj1gK0jSZFOq6A7GpXa0.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1lcuLXYj1gK0jSZFuq6ArHpXaK.jpg_640x640.jpg;	Single gross weight:	11 KG;
Feature:	Jib Crane;	Span:	20M;
Application:	Workshop, Steel Mill, Marble/Class Factory;	Package Type:	Packed by the water proof weave colth to protection the paint and avoiding the scratch. Electrical parts and Hoist are packed in crate. Delivered by 20 Feet GP Container;
Capacity:	1-15 TON;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;
Rated Lifting Moment:	10KN;	Control method:	pendent & remote;
Rated Loading Capacity:	10T;	Condition:	New;
Selling Units:	Single item;	Product name:	Standing Jib Crane;
Lifting speed:	6.6 M/min;	Arm length:	2-10;
Max. Lifting Height:	20M;	Crane feature:	Save Space;
Certification:	ISO CE BV;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining;
Place of Origin:	Henan China;	Rotation angle:	180 /270 /360/Customized;
Brand Name:	Zoke Crane;	Single package size:	11X11X11 cm;
Warranty:	1 year;	Cross tarveling speed:	11 m/min;
Main Electrical Parts:	Schneider;	Lift height:	2-15;

Product Description

Product Application

Free standing Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.

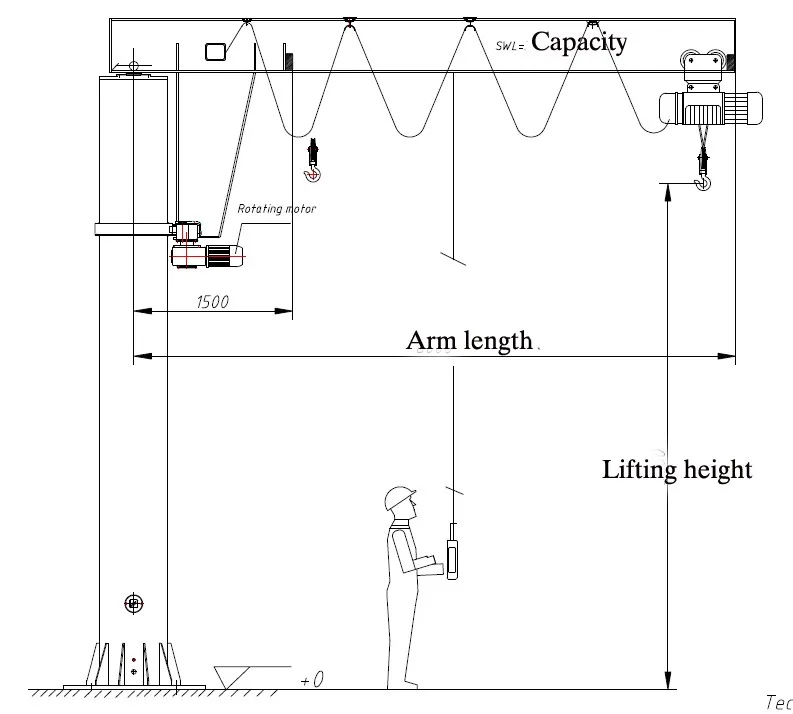

Technical Parameters

Item	BZ1	BZ2	BZ3	BZ5
Capacity - t	1	2	3	5
Lift height - m	1 - 20	1 - 20	1 - 20	1 - 20
Arm Length - m	2-10	2-10	2-10	2-10
Lift speed - m/min	6.6	6.6	5.4	2.7
Traveling - m/min	11	11	11	11
Rotation - r/min	0.5 - 1	0.5 - 1	0.5 - 1	0.5 - 1
Control way	Pendent / Remote Control
Price	Click to Get Offer

Main Features

1. Installation area is smaler, But Working Area is bigger
2. Be able to rotate 180. 270. 360 degree with limit swtich
3.Compact structure, light weight and high lifting height;
4.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

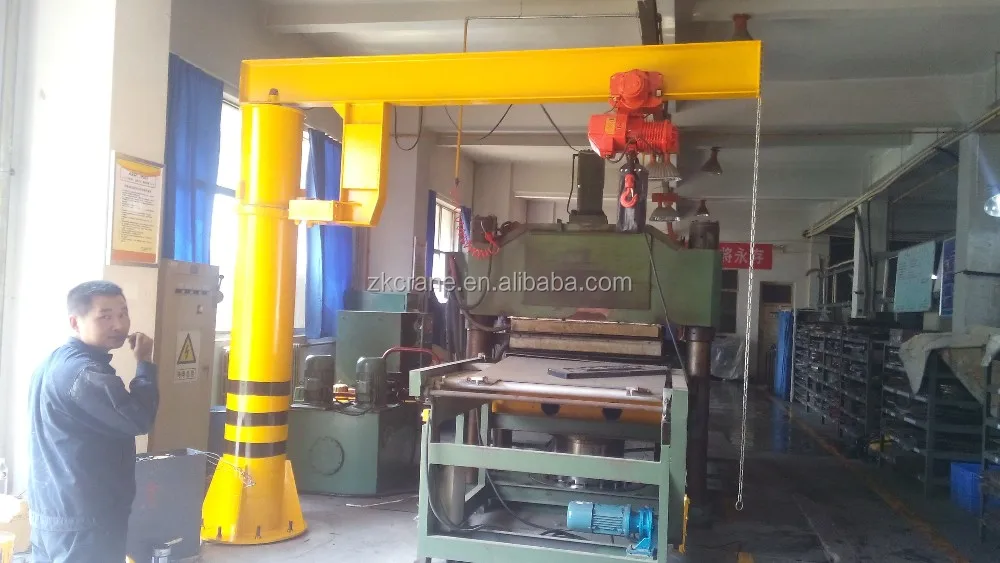

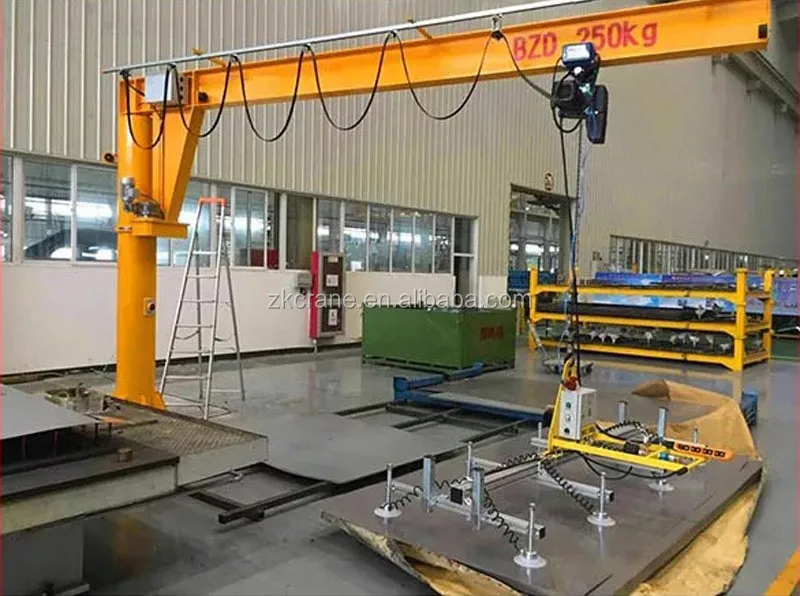

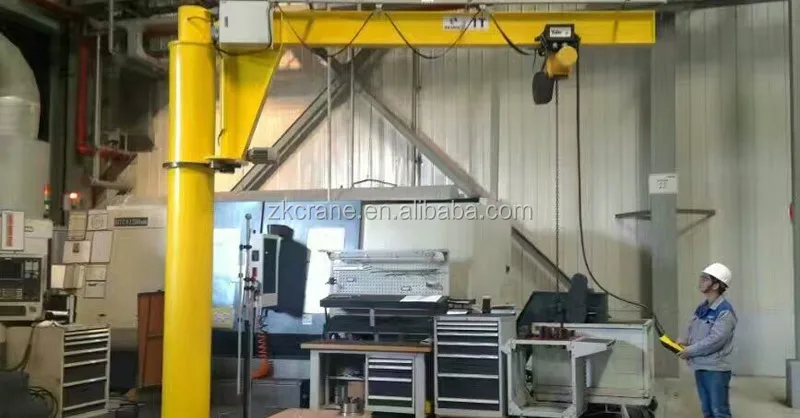

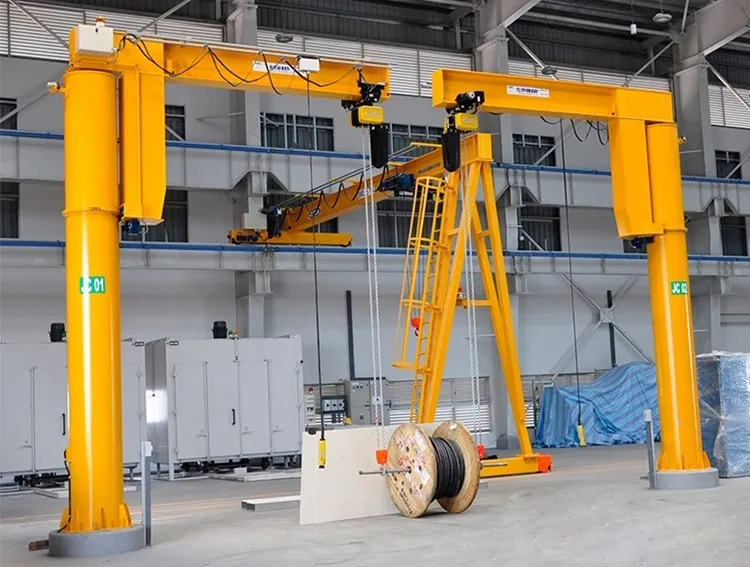

Application

Pillar Mounted Jib Crane

91.8% Response Rate

Wall Traveling Jib Crane

91.8% Response Rate

Overhead Crane

91.8% Response Rate

Packing & Delivery

Packaging
Project	10 ton column mounted jib crane
Country	Saudi Arabia
Packaging Details	Packed by the water proof weave colth to protection the paint and avoiding the scratch. Electrical parts and Hoist are packed in crate. Delivered by 20 Feet GP Container

Packaging
Project	5 ton column mounted jib crane
Country	Russia
Packaging Details	Packed by the water proof weave colth to protection the paint and avoiding the scratch. Electrical parts and Hoist are packed in crate. Delivered by 20 Feet OT Container

Packaging
Project	5 ton pillare mounted jib crane
Country	Pakistan
Packaging Details	Packed by the water proof weave colth to protection the paint and avoiding the scratch. Electrical parts and hoist are packed in crate Delivered by 40 feet OT Container

Certifications

RFQ

Capacity:	1/2/3/5/10 ton
Lift height:	3/4/5/6/7/8 m
Arm length:	3/4/5/6/7/8 m
Lift material:	Mould, Glass, Marble, Steel Structure
Quantity:	MOQ: 1 set
Click and fill out your requirement get the Low Price in Alibaba
