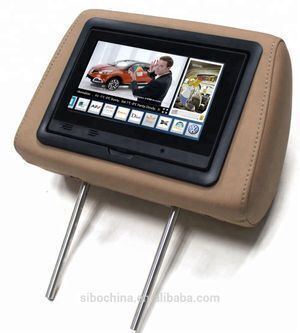

7 Inch In Taxi Advertising Screen With Advertising Software And Content Management System

Click here to contact

Product details

Place of Origin:	Guangdong China;	Payment Terms:	T/T,Western Union;
CPU:	ARM Cortex A7 Dual-Core;	Port:	Shen zhen;
Warranty:	1 Years;	Combination:	Bluetooth-Enabled,Built-in GPS,Touch Screen;
Network:	Internal 3G / WiFi / Lan;	Supply Ability:	3000 Piece/Pieces per Month;
Application:	monitor;	Packaging Detail:	Units Per Carton:4 Sets Carton Size: 593434 cm;
Brand Name:	SIBO;	Display:	IPS Display;
Car Make:	Taxi;	Model Number:	Q898;
Power supply:	9-30V;	Camera:	0.3M;
Resolution:	1024 x 600;

7 Inch In Taxi Advertising Screen With Advertising Software And Content Management System

Model Number		Q898
Hardware Specs	Solution	Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 nit
	RAM	1GB
	Nand Flash	8GB
	Switchable Angle	45 Degrees
	Camera	0.3M
	Sound System	1W * 2

Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Integrated Hi-Fi 100dB audio codec Dual analog mic amplifiers
	Language	Support multi-languages

		Earphone Jack *1
	Back	Ethernet Interface(RJ45)
		GPS Module Socket (RS232 Socket)
		USB Socket
		GPIO Input (SW)
		GPIO Output
		DC IN Power Terminal

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
	3G	3G (W-CDMA)

Power Supply	DC IN	DC 9V - 30V

Customized	Auto Boot	Auto Boot Up When Power Supplies
	Software	Advertising Software / Bus VOD System

Hardware

1. Built-in car headrest, metal bars with adjustable distance from 10-20cm to suit general cars

2. Support 9v-36v dc in wide range voltage to protect from car spike voltage

3. WiFI, Bluetooth for network

4. Ability to connect with taxi meter, and when taxi meter is on, starts to play advertising, when taxi meter is off, stops showing advertising.

5. Options for 3G for wireless update, GPS for location based advertising, motion sensor to detect passenger

You can customize the function yu need.

Software

Features:

1. 3g sim to connect to it
2. gps for tracking the car
3. available to upload to advertising online from office to car

4.provide customized design

Highlight features:

Android OS, support Flash 11.1, Adobe air

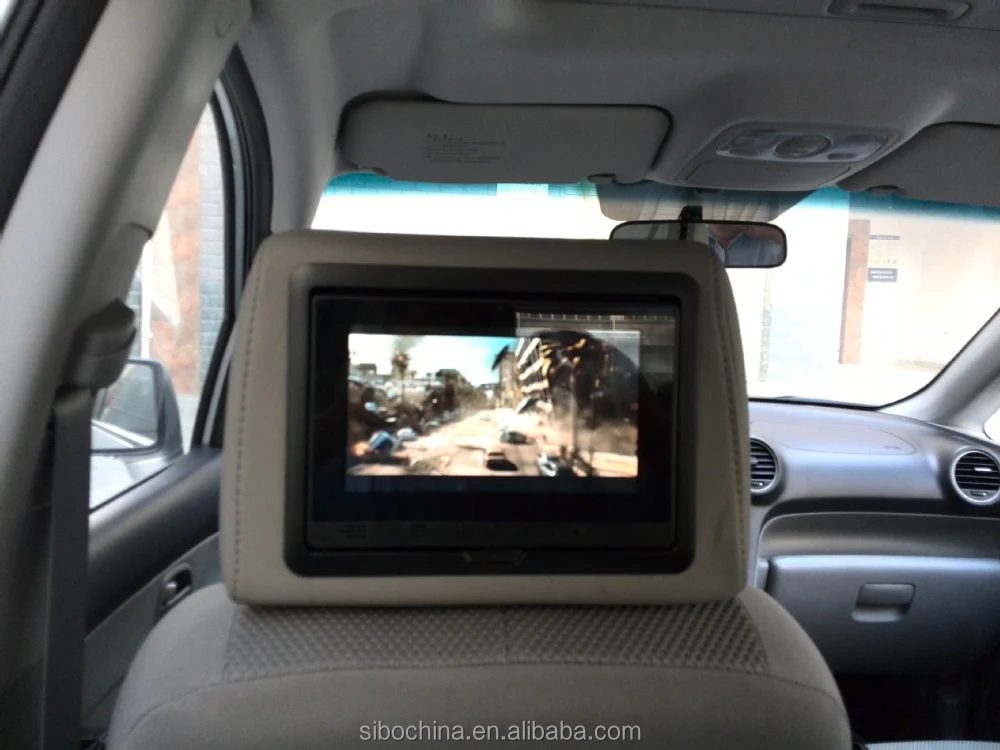

For rear seat ads with headrest
Embedded design can be mounted into the seat or headrest
A variety of update ways for entertainment resource, LAN, 3G, WIFI
Simple installation and wiring
Wide voltage range from 9V- 36V DC
The special power supply design for taxi (TAXI Meter, ACC)
Acceleration sensor
remotely upload content to the system and subscribe for information such as news and weather

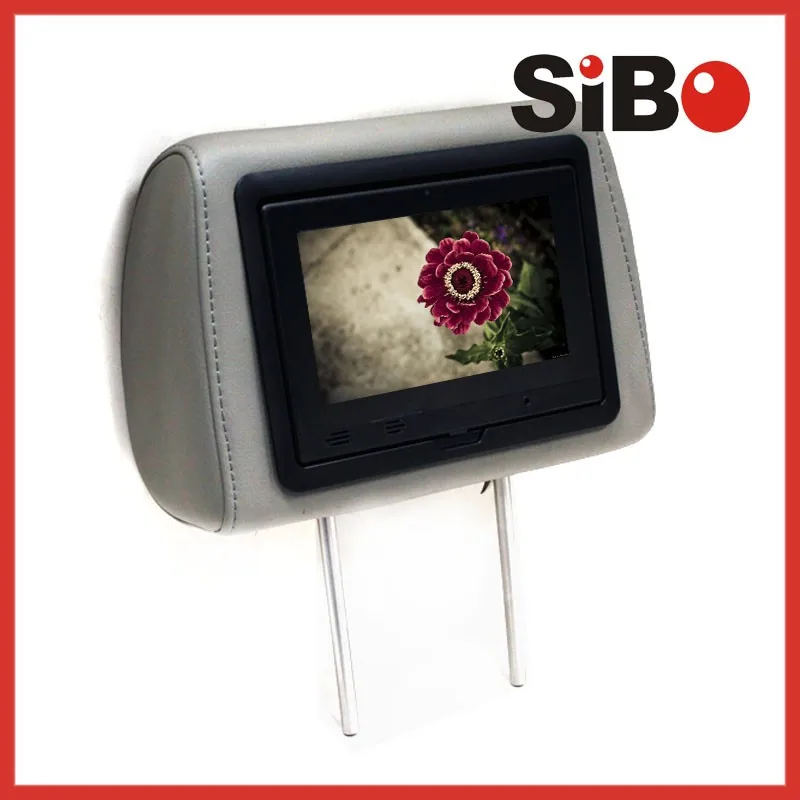

headrest Android LCDs with advertising software for taxi advertising
headrest lcds, headrest android lcds, headrest lcds with advertising software

LCD Details:

Tech.details:

Accessory & Color:

For private cars, taxis display, buses entertainment terminal
Accessory: AC to DC adapter, car adapter, headrest, car charger,cables, iron back cove
Color: Black, White , customized when bulk orders

Packing:

4 units of headrest tablet in one carton box, and the carton box dimension is 59 X 34 X 34 cm

Volume weight for 4 units: 14KG

Real weight for 4 units: 9KG

Shipping:

Lead time for samples: 5-7 working days

Lead time for order more than 100 pcs: 20-25 working days
