South America popular IKS SKS H.265 Autoroll IPTV skysat s2020 satellite receiver

Click here to contact
Product details
Type:Digital;IPTV:4000+channels;
Product name:skysat s2020 satellite receiver;High Definition:Yes;
Port:Shenzhen;Packaging Detail:20pcs/carton carton size:49X28X37 cm weight:12.5 kg;
FTA(Free To Air):Yes;Model Number:s2020;
Tuner:DVB-S2 8PSK;FTA(Free To Air):Yes;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Supply Ability:33310 Box/Boxes per Month price would different base on order;
Type:Digital;Wifi:With USB Wifi;
Brand Name:SZ box;High Definition:Yes;
Place of Origin:Guangdong China (Mainland);Model Number:skysat s2020;

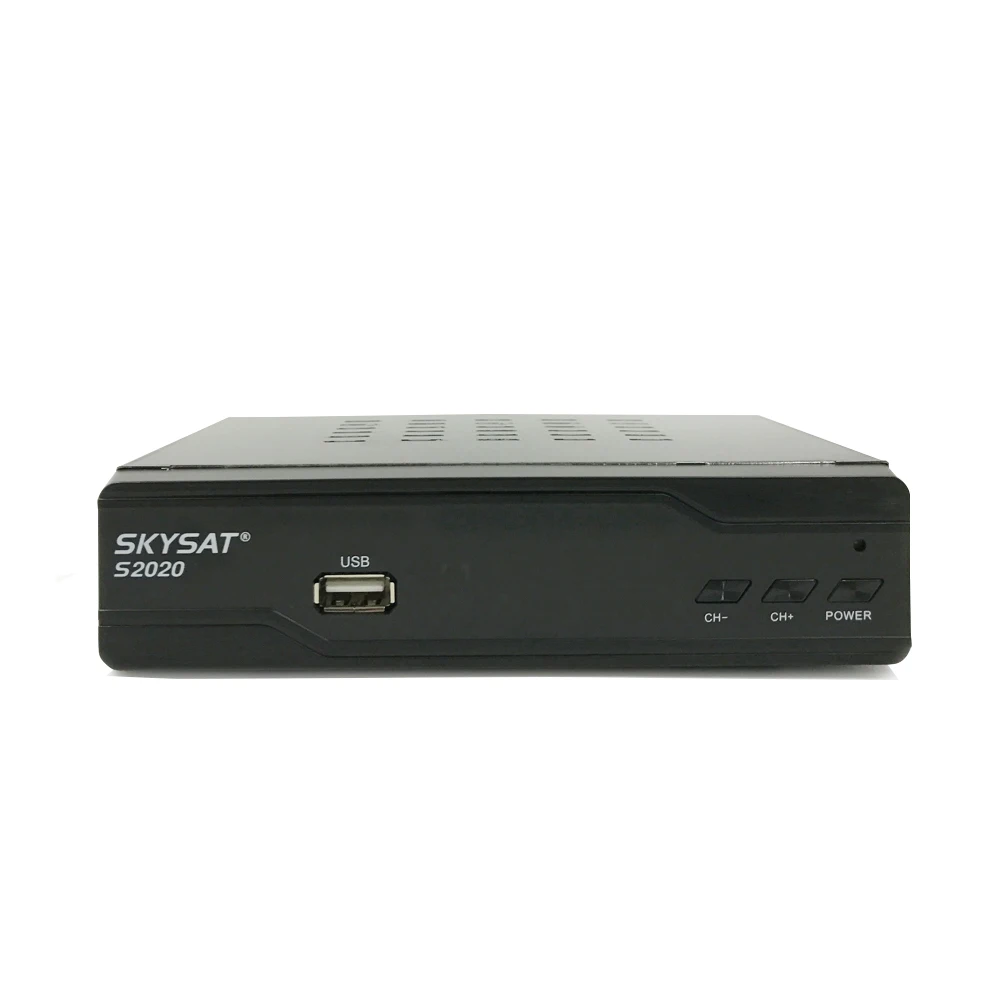

South America popular IKS SKS H.265 Autoroll IPTV skysat s2020 satellite receiver

if you want to with the Live account pls Contact us.



Highlight

  • Ali3526 chipset
  • Support H.265(HEVC),MPEG-4,fully DVB-S2 Compliant
  • IKS,SKS via ACM
  • SKS Satellite: 30W(ACM),63W(ACM),58W,61W,87.2W,107.3W(ACM), 53W,22W(ACM),15W(ACM)
  • Brazil VOD
  • Support IPTV,Xtream-codes IPTV,m3u via USB,m3u via internet
  • with LAN port, support WiFi,3G,VPN
  • USB2.0,PVR Ready
  • Support Youtube,Youporn,Redtube,Dailymotion,DLNA,FTP Client,etc
  • Support CCCam,Newcamd,Mgcam
  • Support Autoroll Powervu,Biss,Tandberg,Viacess,etc
Product Description



General Specifications:

Main Features:
-Fully DVB-S/DVB-S2/MPEG-2/MPEG-4/H.264/H.265/AVC Compliant
-DiSEqC 1.0/1.1/1.2 and USALS
-Twin Tuner(Tuner1,Tuner2)

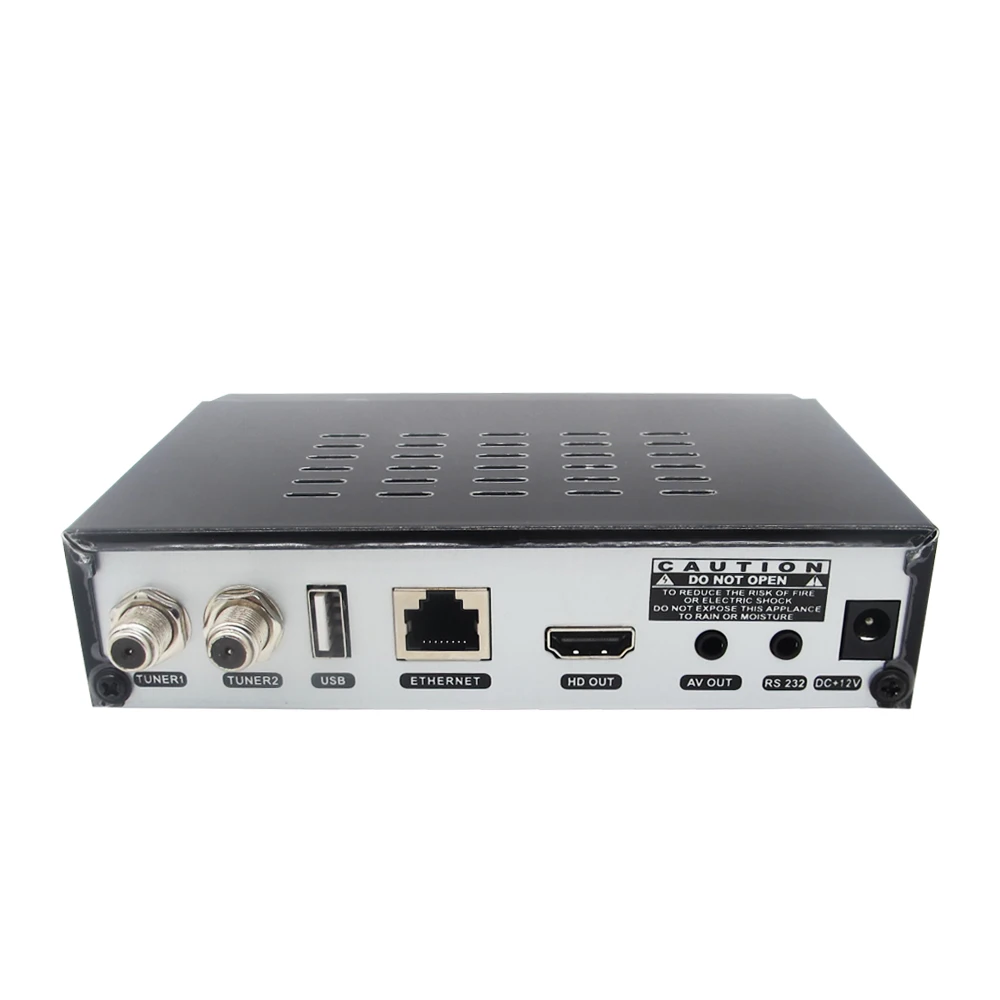

-LAN/Ethernet connector
-Aspect ratio adjustment 4:3(16/9 crop),4:3(16/9 letterbox),16:9(4/3 pillar box)
-HDMI Video & Audio Output(576i,576p,720p,1080i,1080p)
-Dual USB for Multimedia Player(MP3,MP4,OGG,MKV,JPEG,BMP,etc)
-Dolby Digital Bitstream Out through S/PDIF(Coaxial)
-Multiple Video Output "HDMI OUT,CVBS"
-News, Map and Weather Application via IP
-8000 TV & Radio Channels Supported
-Multi-Language OSD(Spanish, Portuguese, English etc)
-PVR Time Shift and Playback Supported
-Transportation Stream Recording Supported
-NIT Auto Search, Blind Search, Manual Search, TP Search and Multi-Search
-7 Days EPG(Electronic Program Guide)
-Games Supported
-Software Upgrade and Channel Database Update by USB or RS232
-Low Power Consumption Standby
Specification
1. Tuner & Channel 2. MPEG Transport Stream & A/V Decoding
Type   1 ´ F Type, IEC169-24, Female
Frequency Rage  950MHz to 2150MHz
RF Impedance  75 Ohm unbanlanced
Signal Level   -65 to -25 dBm
LNB Power   13/18Vdc +/- 5%, 0.5Amax, Overload Protected
22KHz Tone   Frequency :224KHz +/- 2KHz, 0.6Vpp +/- 0.2V
DiSEqC Control  Version1.0, 1.2, Tone burst A/B
Demodulation  QPSK, 8PSK
Input Symbol Rate  DVB-S QPSK : 1~45 Msps
DVB-S2 8PSK/QPSK : 10~30Msps
FEC Decoder   1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode. 		 Transport Stream  13818-1 MPEG-2, H.265/AVC Transport stream Specification
Profile Level   MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC
Input Rate   Max. 90Mbit/s
Aspect Ratio   4:3, 16:9, Letter Box
Frame Rate   25Hz for PAL, 30Hz for NTSC
Video Resolution  576i, 576p, 720p, 1080i ,1080P
Teletext   Through VBI
Audio Decoding  MPEG-1 Layer 1 & 2, Dolby Downmix
Audio Mode   Single Channel/Dual Channel Joint Stereo/Stereo
 Frequency Response  20~20kHz, <+/-2dB
3. System & Memory4. A/V & Date In/Out
Main Processor  Ali3526
Flash Memory  8MB
DDR III Memory  2Gb
Channel Capacity  Digital Channel: 6,000
Front   3-Key(Power), 7-SEGMENT DISPLAY		HDMI Full HD/ Video/Audio Output
Data Interface   - RS-232, Bit Rate: 115,200baud
Connector: 9-pin D-sub Male type
USB : USB 2.0, Type A Connector,
5. Power Supply6. Physical Specification
Input Voltage   AC 100V ~ 240V, 50Hz ~ 60Hz
Power   AC 100V - 240V		Size(WxHxD): 148*102*34MM
Weight:0.32KG
7. Environmental Condition8. Packing
Operating Temperature  0 °C ~ 40 °C
Storage Temperature  -10 °C ~ 50 °C
Operating Humidity Range  10~85% RH, Non-condensing

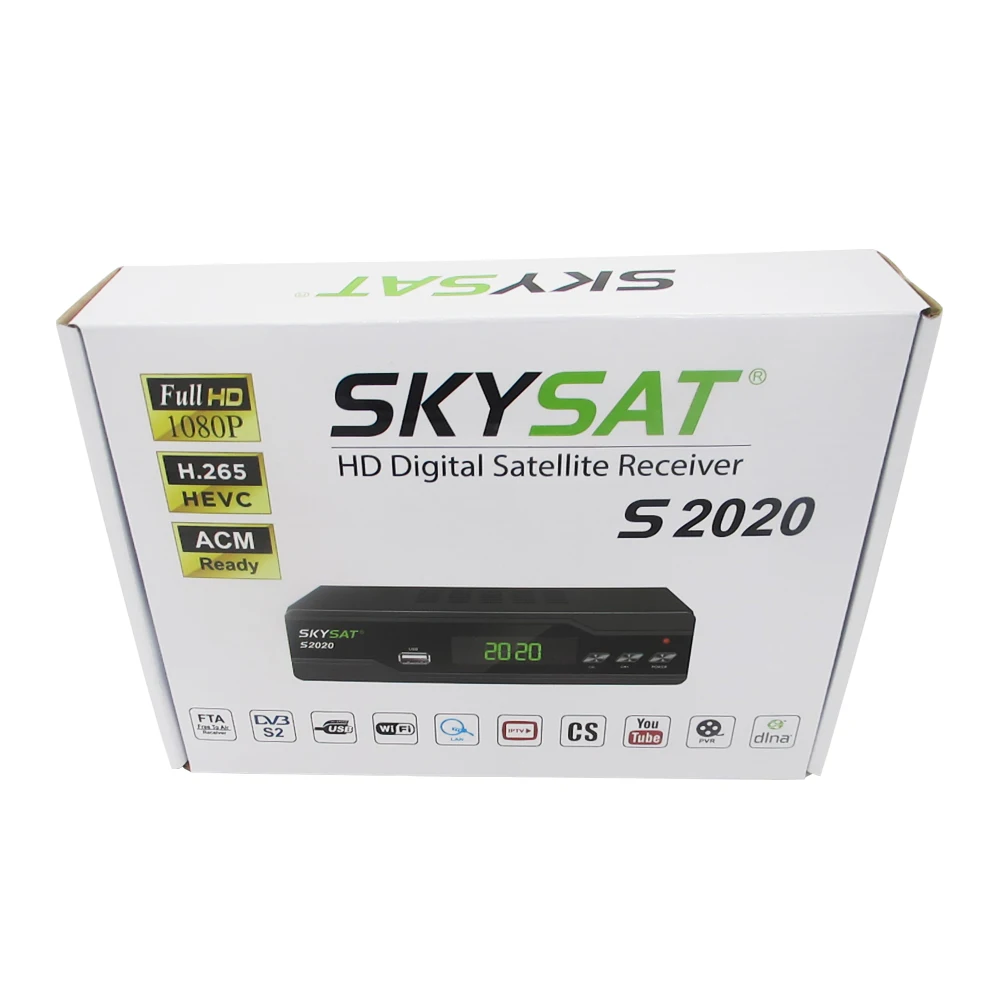

 Storage Humidity Range  5~90% RH, Non-condensing		Gift box size: 23.7x17.1x5.1cm
Gift box weight:0.58kg
20pcs/carton
Carton size:49x27.6x36.3cm
Carton weight:12.5kg



Company Information

 BOXKING Tech is a professional manufacturer, Specialized in Satellite Receiver and Android

Smart TV Box, More than 300 talented and diligent workers, Own professional Team for

Hardware, Software, Quality Test, Accounting, Packing, Shipment, Sale, After-sales etc.,

And provide customized service for customers.




FAQ

1. If buyer find product issue, how to process?

  • First feedback supplier all details, include picture or video
  • Caculate total awkward products quantity /cost
  • Supplier after double check give solution in 3 days, refund, rework, discount, reback, replace option

2.Did supplier support technology for local ?

  • Yes, Provide local technical support
  • local language version

3. Could buyer have OEM service?

  • We are warm welcome the OEM order, we provide customize base on client's design and marketing request
  • Buyer could have the Exclusive agency, exclusive rights for private model product

4.Did supplier provide dropshipping service?

  • Considering order potention, we could accept onlie seller's drop shipping request

5.What's other additional services supplier have?

  • Recommend new model , new hot selling products for old client
  • Help client handle order in China if need
  • Chose best shipper for buyer to save cost
