China supplier high quality 2.5kg load lifting three axis robotic arm for Industrial automation line robot mechanical arm kit

Click here to contact

Product details

Number of shaft:	3;	Package Type:	wooden box;
Repeated positioning accuracy:	0.3mm;	The power supply voltage:	100-240v 50/60HZ;
Communication interface:	WIFI;	Working temperature:	-10°C --60°C;

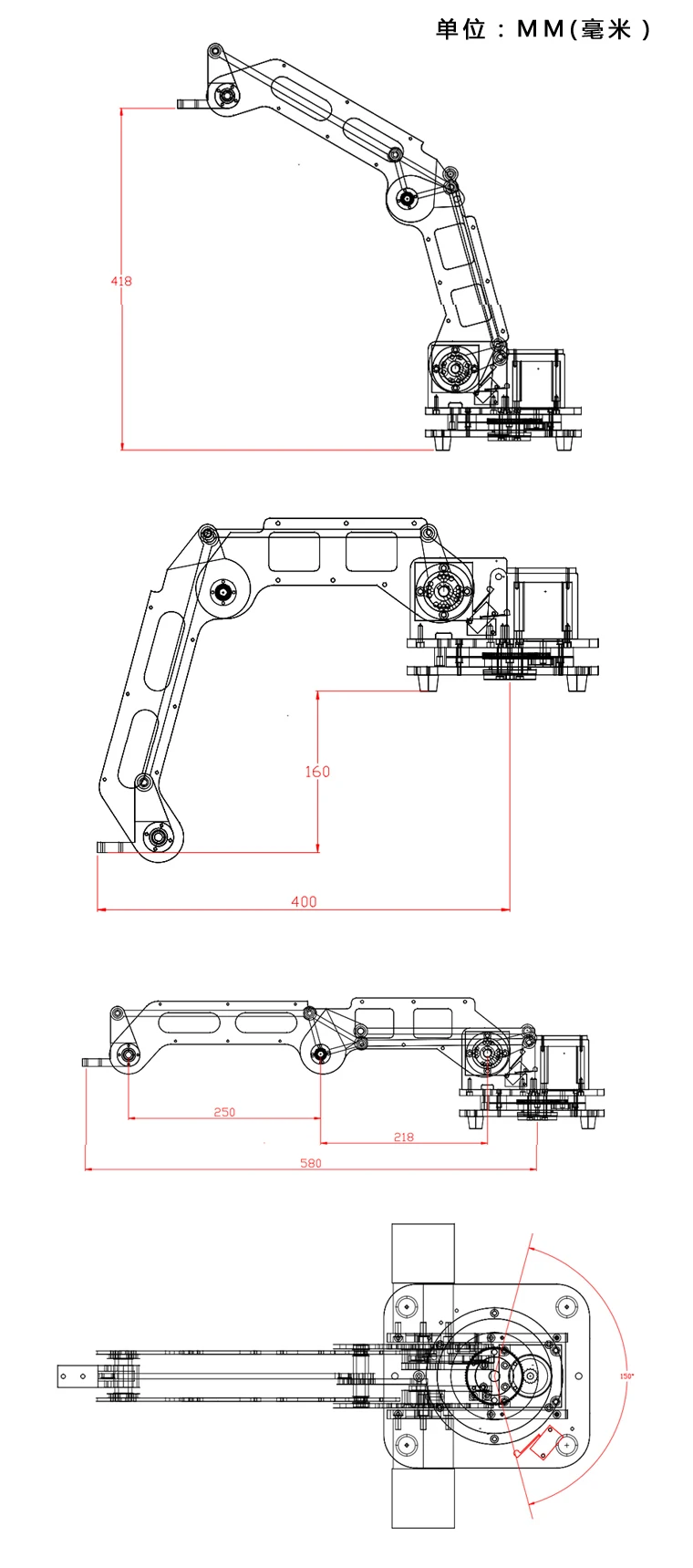

Vertical Travel(mm):	418mm;	Single package size:	50X52X39 cm;
power:	60W MAX;	After-sales Service Provided:	Video technical support;
Certification:	iso;	Applicable Industries:	industrial automation;
Horizonal Travel(mm):	580mm;	Power(W):	60w;
Weight:	12.3kg;	Warranty:	1 year;
Selling Units:	Single item;	Condition:	New;
load:	2.5kg;	Single gross weight:	22 KG;
Dimension(LWH):	505239cm;	The power input:	12V/5ADC;
Maximum extension distance:	580mm;	Brand Name:	times brilliant;
Quality guarantee:	1 YEAR;

Specifications for
Number of shaft	4
load	2.5kg
Maximum extension distance	580MM
Repeated positioning accuracy	0.3mm
Communication interface	WIFI
The power supply voltage	100-240v 50/60HZ
The power input	12V/5ADC
power	60W MAX
Working temperature	-10°C ——60°C
Axial motion parameter
shaft	The scope of work	Maximum speed
Axial motion parameter	0°to+85°	320°/S
Axis 1 base	--10°to+95°	320°/S
Axis 2 big arm	+90°to -90°	480°/S
Axis 4 rotating	+90°to -90°	480°/S

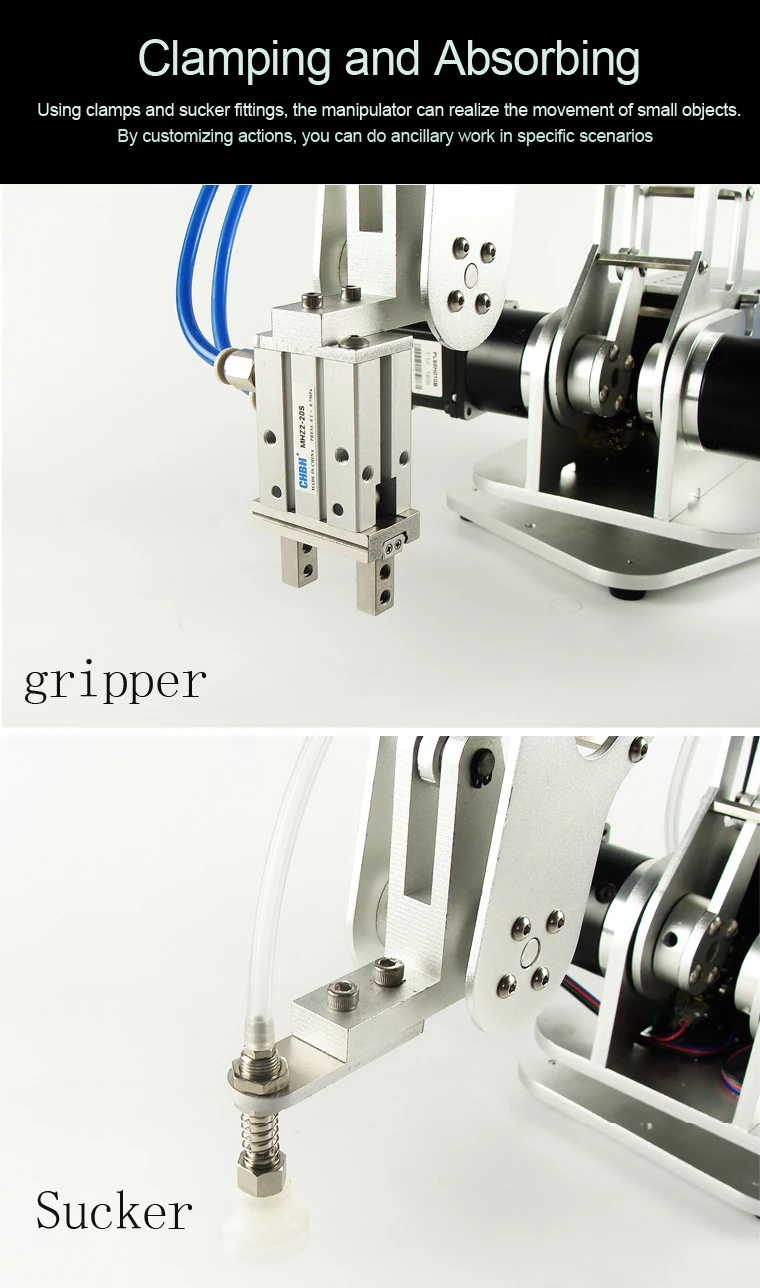

end-effector
claws	Sucker diameter	20mm
claws	The pressure	-35kpa
chuck	Open the size	27.5mm
	Drive way	pneumatic
	Efforts to	8n
