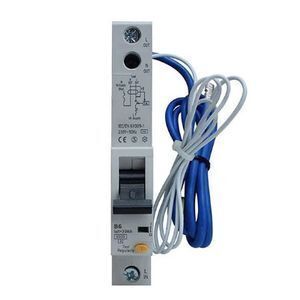

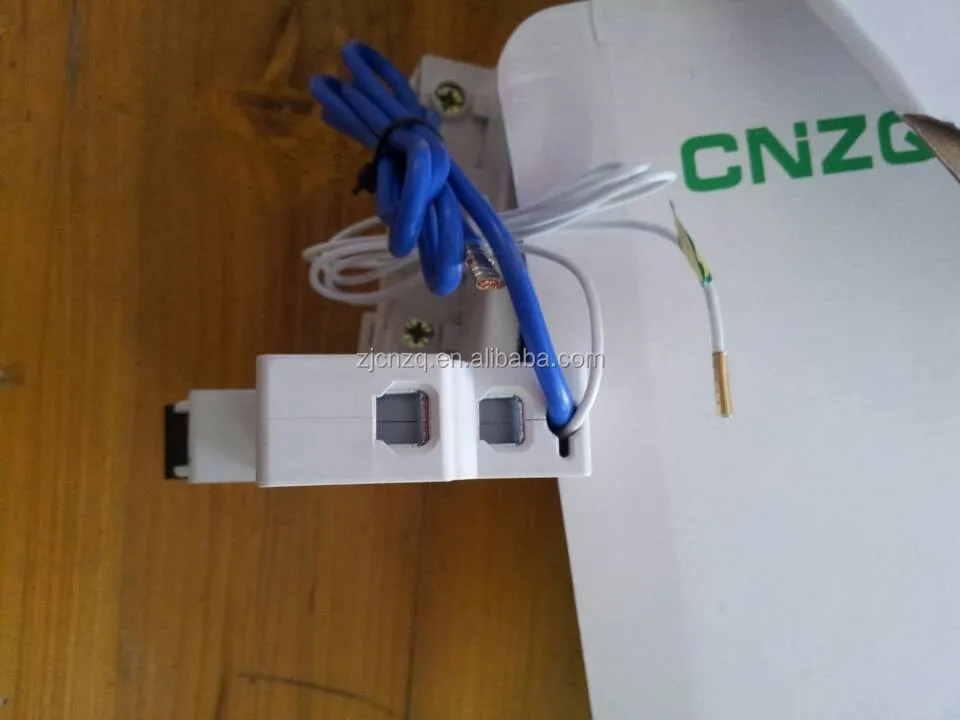

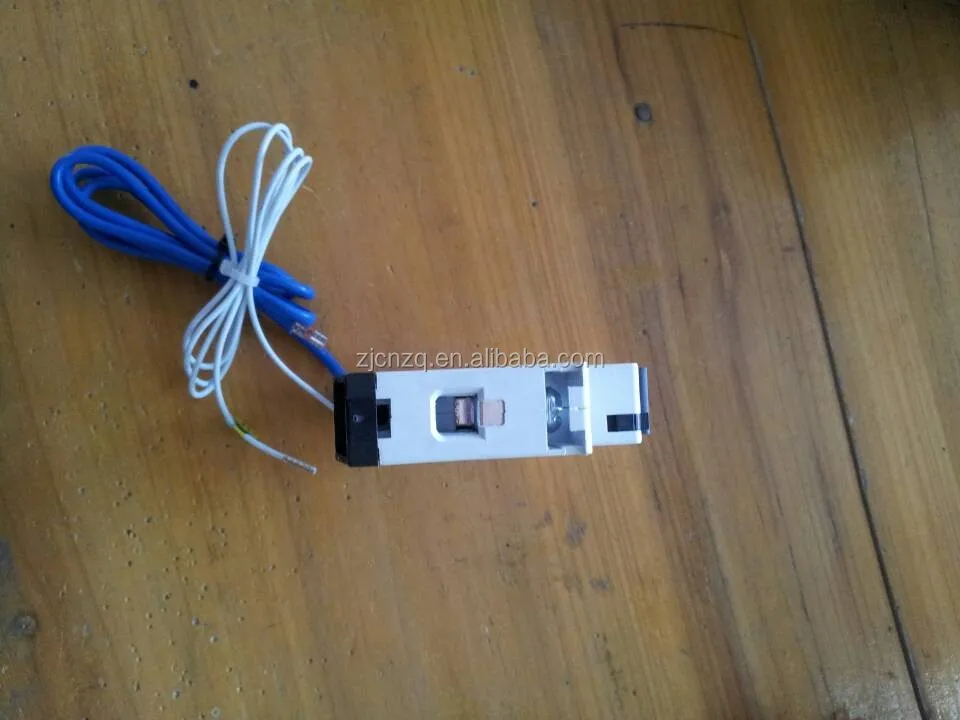

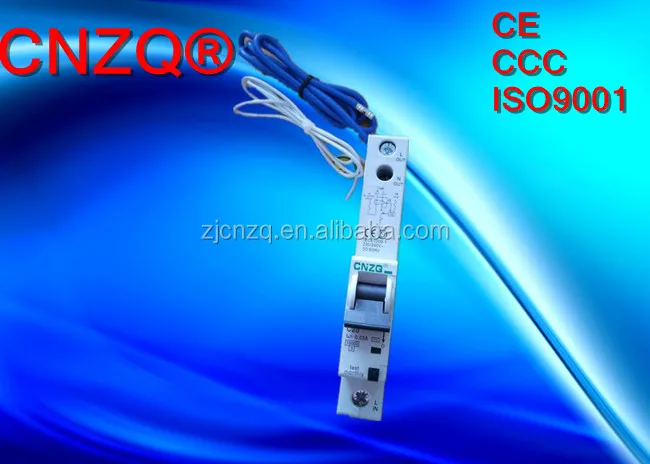

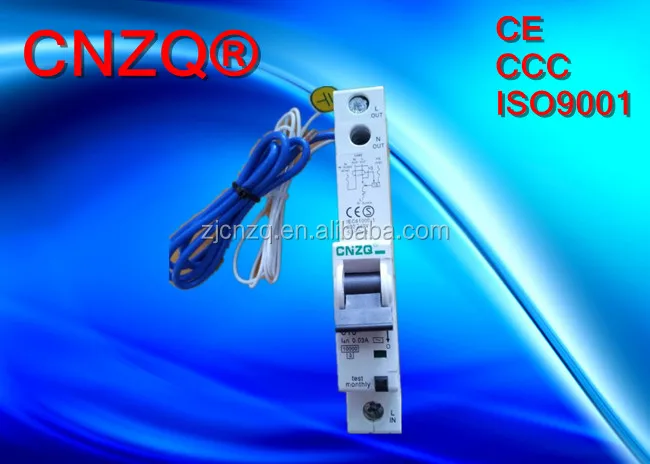

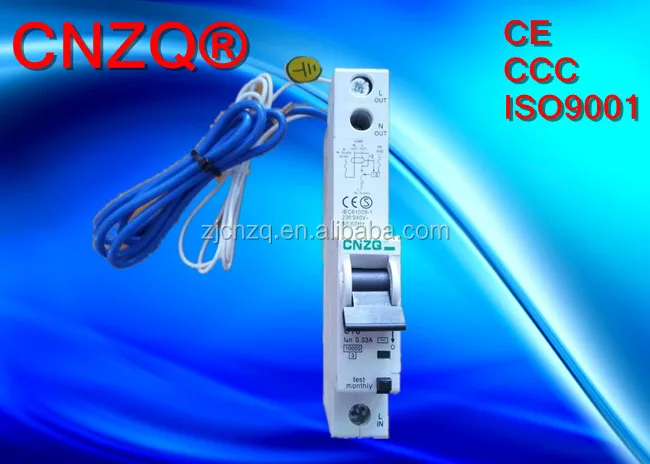

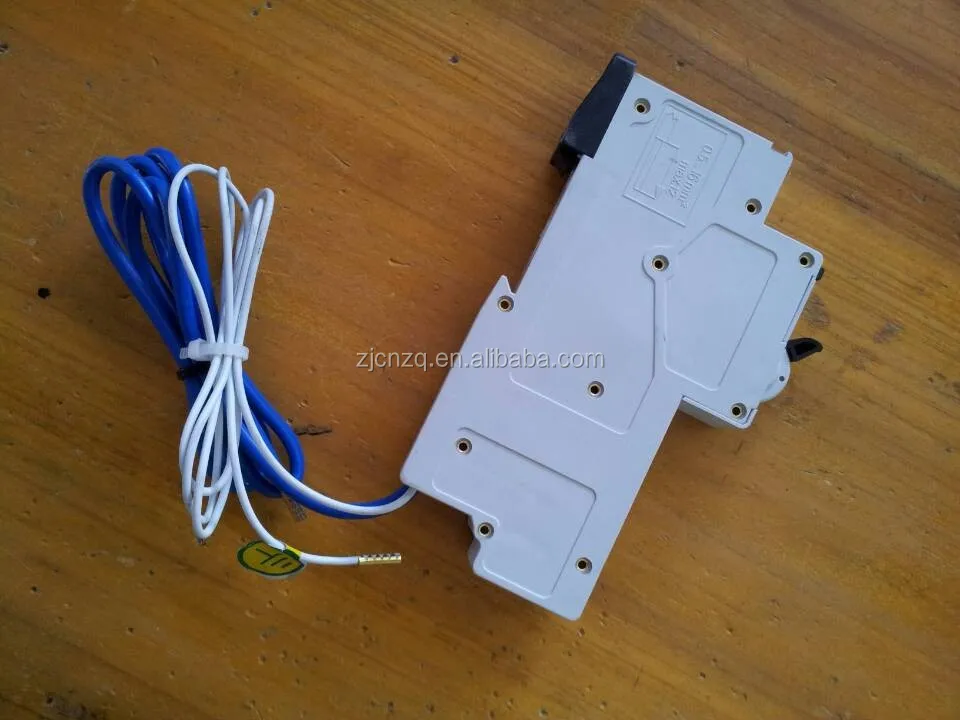

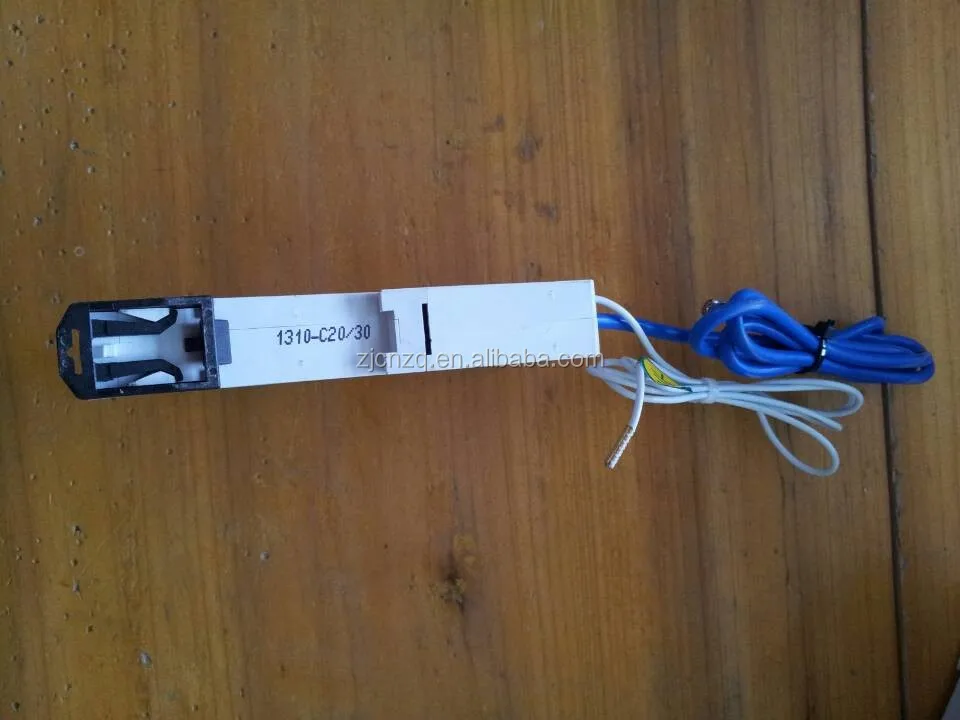

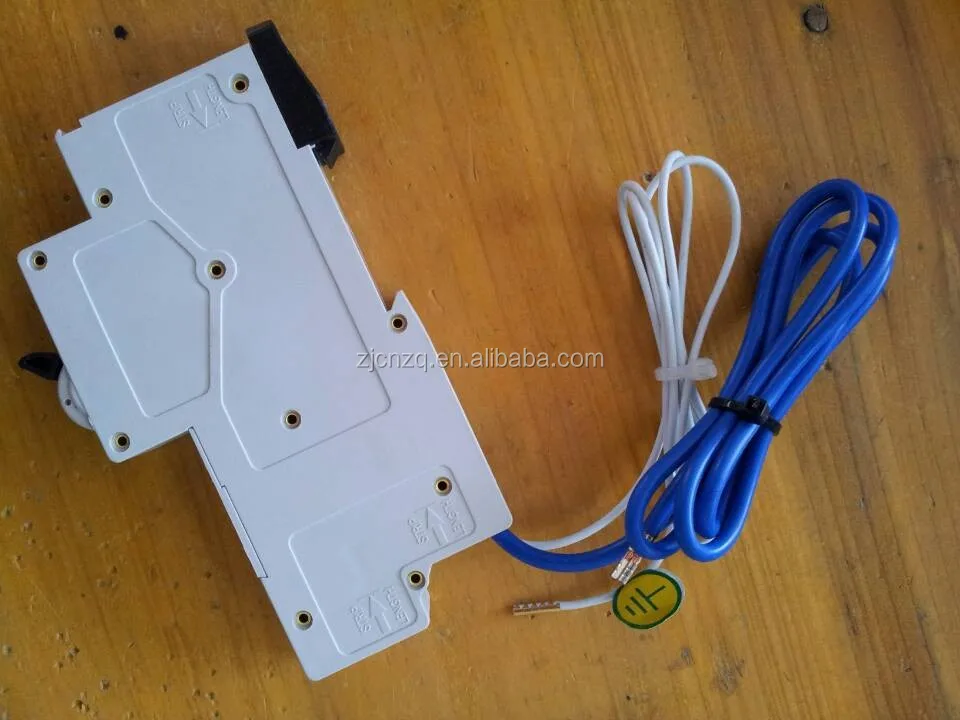

RCBO,1P rcbo,Mini circuit breaker

RCBO with overcurrent protection 16a elcb

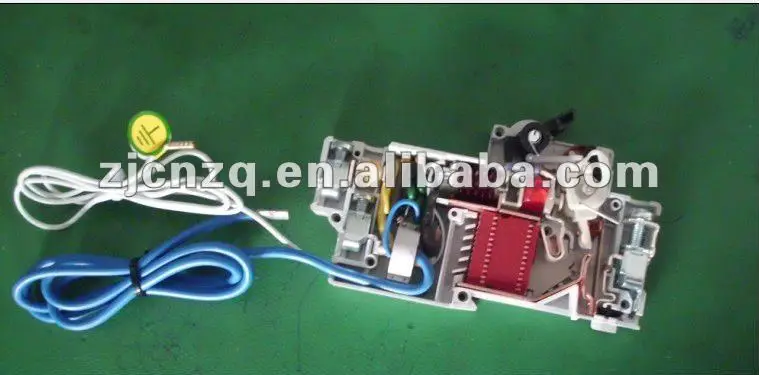

Construction and Feature

•  Provides protection against earth fault / leakage current , short-circuit and overload .
• HIgh short-circuit capacity
• Provides complementary protection against direct contact by human body.
• Effectively protects electric equipment against insulating failure .
• Contact position indication
• Provides protection against over-voltage
• Provides comprehensive protection to household and commercial distribution sysyems.

Technical Data

• Type : Electronic type
• Residual current characteristics : AC
• Pole No. : 1P+N
• Tripping curve : B , C
• Rated short-circuit capacity : 10KA
• Rated current (A) : 6 ,10 ,16 , 20 , 25 , 32
• Rated voltage : AC 230/240V
•  Rated frequency : 50Hz/60Hz
• Rated residual operating current (mA) : 0.03 , 0.1
•  Tripping duration :  instanstaneous≤0.1s
• Electro-mechanical endurance : 4000cycles
• Connection terminal : pillar terminal with clamp
• Connection ca[acity : Flexible conductor 10mm² , Rigid conductor 16mm²
• Installation : On symmetrical DIN rail 35mm , Panel mounting .
