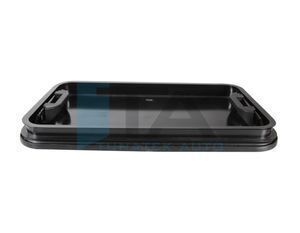

97x53 Roof Hatch Glass Based With Metal Piston for bus minibus aftermarket sprinter ducato master jumper

Click here to contact
Product details
Place of Origin:Turkey;Port:Bursa;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Packaging Detail:Depend on the quantity, goods will be sent in a box or pallet. After order quantity confirmed, details will be shared with the client.;
Bus Model:Universal;Size:970*530;
Material:Glass;OEM No.:Offered;
Supply Ability:1000 Piece/Pieces per Month;
Product Description

GLASS ROOF HATCHES W/O EMERGENCY EXIT

The dimensions that are given with the items belong to the cavity sizes of the vehicle which required to be open. Therefore the external size increase 60 mm from outside. Our product has smoked color with dot patternson the glass part. The glass is tempered and thickness is 5 mm. This features helps to keep sun light out and provides a spacious
environment for passengers.


Material: Tempered Glass
Size: We have got all sizes and molding is possible with enough quantity.
Order Quantity: Min. 1 pcs for standard sizes
Lifetime: Designed for service life of 20years
Working Temperatures: between -40 to +60 ℃
Resistant: to corrosion ISO 9223 class C4 (C5 Light) water proof from ourside, Bullt-In installation strength to withstand a weight of 150kg from outside (person standing on Skylight)

Roof Hatch - 06-500
PRODUCT NAME / TYPE
CODE
SIZE
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-500
40*40
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-501
40*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-502
50*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-503
65*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-504
38*75
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-505
70*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-506
75*60
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-507
73*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-508
77*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-509
79*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-510
80*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-511
80*55
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-512
81*55
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-513
82*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-514
94*50
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-515
94*52
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-516
95*51
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-517
97*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON (ABS COVER)
TA-06-518
97*53
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-519
97*63
GLASS BASED WITHOUT EMERGENCY EXIT - WITH METAL PISTON
TA-06-520
85*61.5
How to

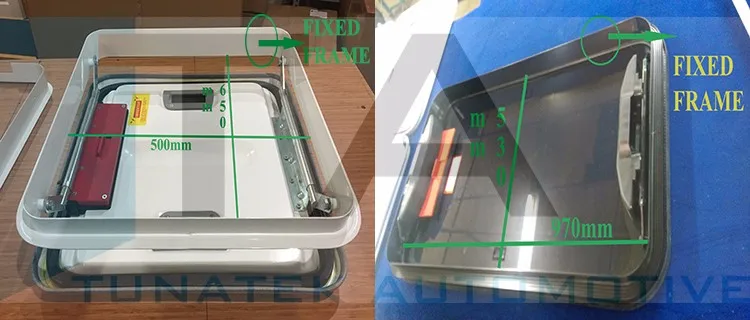

How to choose correct size for conversions

There are many different sizes in each roof hatch models. So how should you choose correct size for your work? As shown above pictures, roof hatches have got a fixed frame to be placed on the roof of vehicle. These sizes are referring to the inner dimensions of this fixed frame. Please keep in mind that the longer is refers to (lenght) from driver to the back side of the vehicle.

Packing & Delivery

PACKING & DELIVERY

Depend on the quantity, goods will be sent in a box or pallet. For both options, we are taking our lovely kitten out, unfortunately. After order quantity confirmed, details will be share with the client.

Showcase
Click on the pictures to go through product's page. New page will open in a new tab, your current page won't close. Kindly note that these are not our all products at all. For reviewing our all products with more details,please contact us. Any questions are welcome.
Our Company

WHO WE ARE

Tunatek Auto is located in Bursa, city of Turkey and established in 2008. Main purpose of company is producing and supplying automotive spare parts to all over the world. Our 25 years experience and good reputation in gas spring industry helped us to prove ourselves in automotive spare parts.


We are mostly specialized in gas springs, minibus/bus seats and components, interior and exterior accessories, automotive glasses, interior trim sets, sliding door mechanisms/steps and roof hatches etc.


Furthermore, our wide product range includes spare parts and accessories for buses, minibuses, trucks and agricultural vehicles.

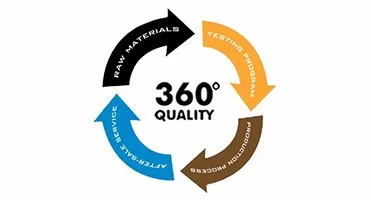

QUALITY POLICY

All our products are designed, manufactured and delivered according to the most strict quality standards. Our experienced and specially trained employees monitor the adherence to our quality criteria in every phase of the production process.


We are certified in accordance with DIN ISO 9001:2008. Our quality program starts with implementing strict quality controls on our purchase transactions. Permanent quality is guaranteed due to the uncompromisingly monitoring of raw materials, an aggressive testing program and a redundant quality control program throughout the production process.


Tunatek products are continuously tested to ensure reliability, long life and over all product safety for your highest satisfaction. Using our test and development laboratory, products and technology are constantly being improved.

Made In Turkey

MADE IN TURKEY

All Tunatek Automotive products made in Turkey according to European Standards.

Customs Documents

ATR & EUR1

Tunatek Auto is exporting high quality products to all over the world and has got full authorization to export. We have got customs brookers both in Bursa and Istanbul so that we are able to make customs clearence in both cities for our all esteemed customers. Either you are in ATR or EUR1 zone, we can export our goods to you.
