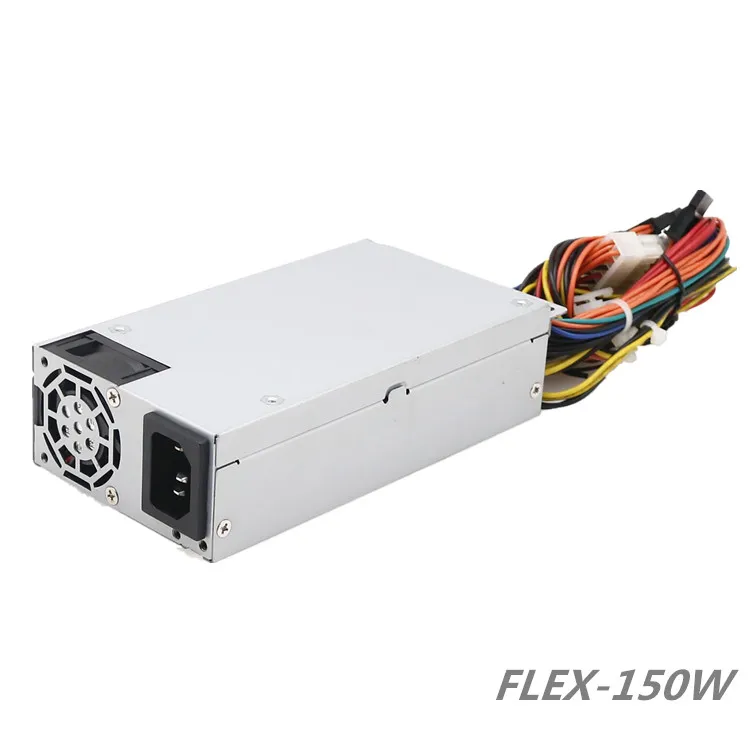

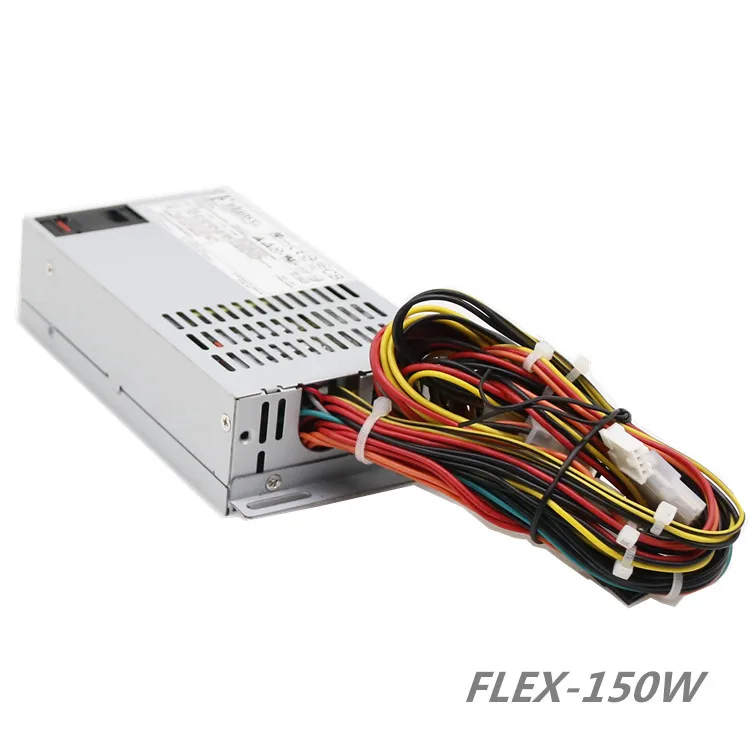

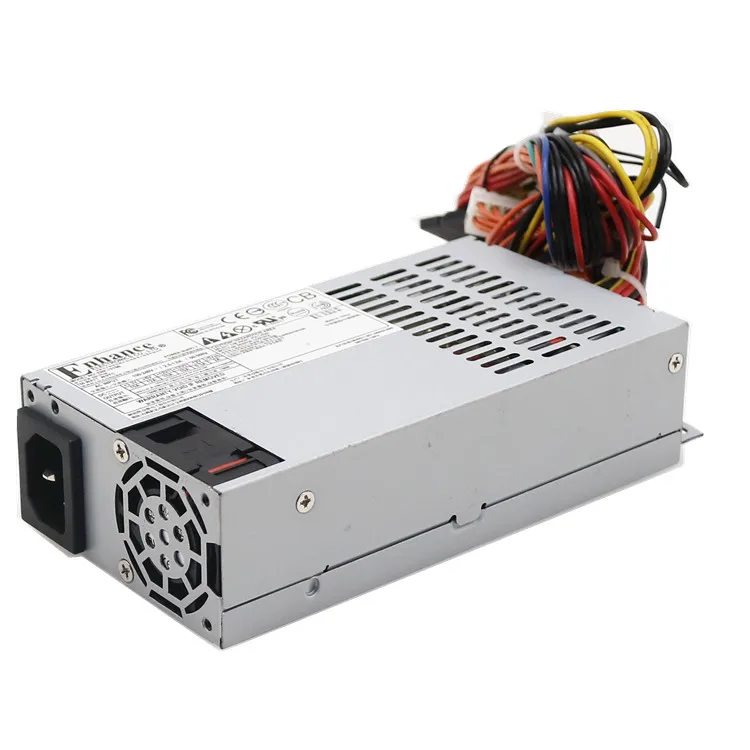

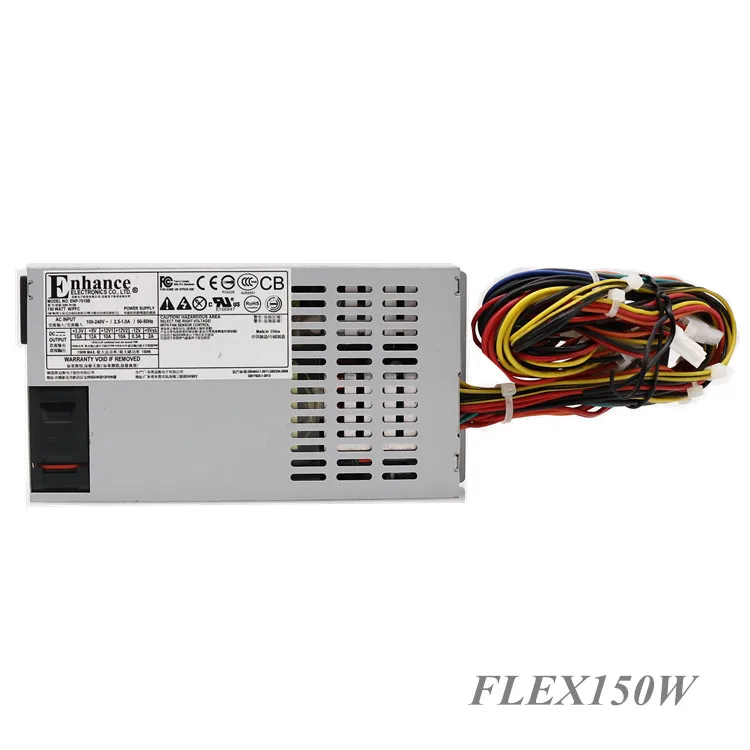

150w/200w/250w Flex Slient Switching Power Supply 80 Plus For Server PSU
- 45.00 >=100 pieces
| Condition: | Original 100% Tested Working; | Supply Ability: | 1000000 Piece/Pieces per Month; |
| Interface Type: | 20Pin; | Fan: | 40MM; |
| Products Status: | Stock; | SATA: | 7; |
| Packaging Detail: | Industrial packaging; | Brand Name: | Enhance; |
| Port: | Shenzhen/HK; | Frequency: | 60/50Hz; |
| Output power: | 150W; | IDE: | 1; |
| Name: | Server PSU; | Application: | Desktop; |
| Place of Origin: | China; | Item Name: | Switching Power supply; |
| AC Input: | 100-240v; | Rating Power: | 150W - 250W; |
| Payment Terms: | L/C,T/T,Western Union,Paypal; | PFC: | ACTIVE; |
150w/200w/250w Flex Slient Switching Power Supply 80 Plus For Server PSU
Model Description | |
Model | ENP7500 SERIES |
Power | 150w/200w/250w |

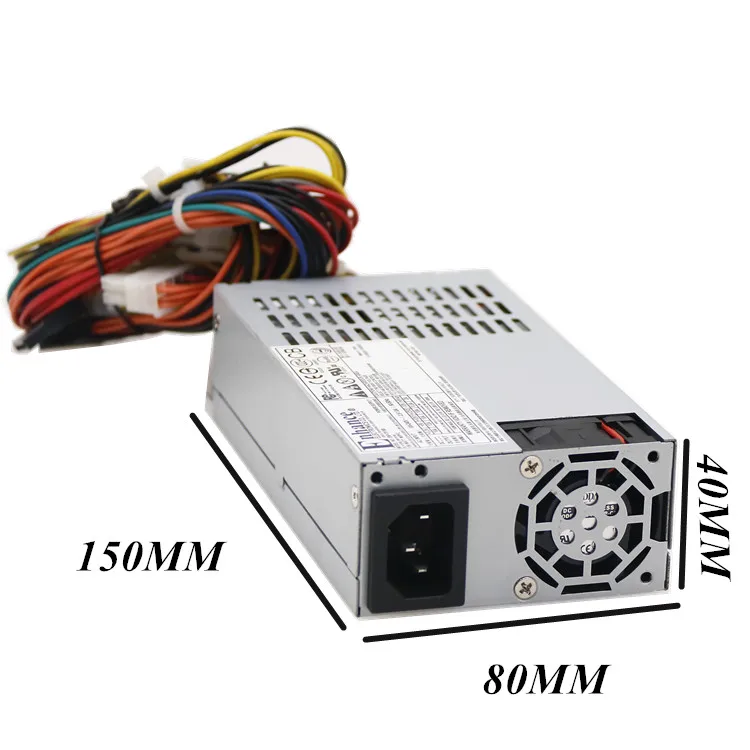

Dimension | 150mm(L)*81.5mm(W)*40.5mm(H) |
General Specifications | |
On/Off Switches | Optional |
PFC | ACTIVE |
Fan Size | 40mm |
Efficiency | 80% under full load for 150w,82% under full load for 200w and 250w |
Hold-uo Time | 16ms@75%LOADING |
Protection | OPP/OVP/OCP/OTP/UVP/SCP |
Environmental Specfications | |||||||||||
Operation Conditions |
| ||||||||||
Temperature | 0℃ to 40℃ | ||||||||||
Relative Humidity | 20% to 85%,non-condensing | ||||||||||
Shipping and Storage Condition |
| ||||||||||
Temperature | -20℃ to 90℃ | ||||||||||
Relative Humidity | 5% to 90%,non-condensing | ||||||||||
Input Specifications | |||||||||||
Model | Wattage | Voltage | Frequency | Current | |||||||
ENP7515 | 150W | 100-240V |
60/50Hz | 2.5A-1.5A | |||||||
ENP7520 | 200W | 3.5A-2.0A | |||||||||
ENP7525 | 250W | 4.0A-2.0A | |||||||||
Output Specifications | |||||||||||
Model | Wattage | +3.3v | +5v | +12v | -12v | +5vsb | |||||
ENP7515 | 150w | 6A | 7A | 11A | 0.2A | 2.5A | |||||
ENP7520 | 200w | 8A | 9A | 15A | 0.2A | 2.5A | |||||
ENP7525 | 250w | 9A | 10A | 18A | 0.2A | 2.5A | |||||
DC Voltage Regulation | ±5% | ±5% | ±5% | ±10% | ±5% | ||||||
Ropple&Noise(mV) | 50 | 50 | 120 | 120 | 50 | ||||||
This specification describes the requirements of 150W/200W/250W with active P.F.C Switching Power Supply with an ATX form-factor,+5V standby voltage,fan control,ATX 12V Power supply version 2.3, remoteon/off control, dual line input capability and forced air cooling characteristic
