cosmetics lotion making machine,cream making homogenizer

Click here to contact
Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram;After-sales Service Provided:Online support;
Dimension(L*W*H):975*1200mm;Product name:emulsifier,homogenizer;
Sealing Type:Mechanial Seal;Supply Ability:100 Set/Sets per Month;
Capacity:500L;Max. Loading Capacity:1000L;
Certification:ISO,CE;Mixing Shaft:Suitable;
Port:Guangzhou,China;Power(W):5.5-55KW;
Condition:New;Warranty:1 year;
Application:cosmetic, paint,peanut,salad;Packaging Detail:wooden case;
Machine type:Industiral Blender Mixer Machine;Brand Name:DALS;
Additional Capabilities:emulsion,homogenizer;Place of Origin:Guangdong China;
Voltage:220V,380V;Stirring speed(rpm):50-600 Rpm/min;
Application:Liquid with Suspended Solids;Mixer Type:Homogenizer,emulsifier;
Application:Medicine Processing;Product Type:Soap,shampoo,cosmetic;
Heating method:Steam;Mixing Type:Homogenizer,emulsifier;
Material:inside tank SS316/outside tank SS304,custom;
Product Description

Product Application

Cosmetic: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,hair gel, nail polish, hair conditioner etc.
Pharmaceutical industry: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
Daily use industry: toothpaste, detergents, shoes polish, soap, fragrance etc
Food industry: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
Chemical industry: Painting, pigment, dyes, paints, adhesives detergents.

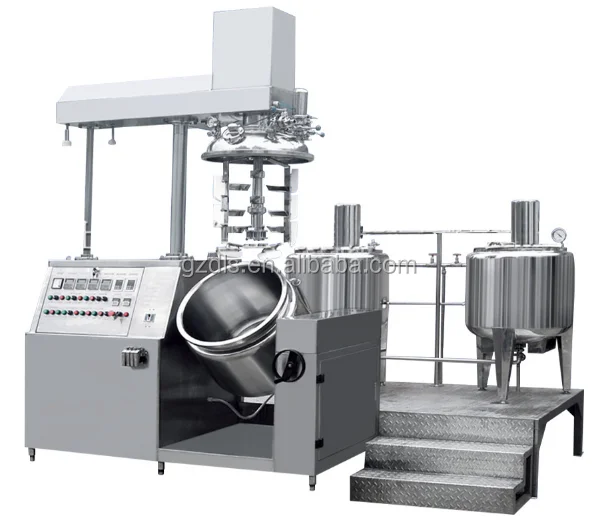

Specification Vacuum Emulsifying Homogenizer Mixer
Product Name
Emulsifying Homogenizer Mixer
Total capacity
650L
Tank diameter
inside tank 1000mm
middle 1100mm
outter tank 1200mm
Tank Height
inside tank 875mm
middle 925mm
outter tank 975mm
Thickness of tank
4mm
Material
stainless steel type 304/316
Surface finished
mirror,polished
Heating type
oil heating
electric heating
steam heating

Note:
1. The equipment can be customized according to customer's material, in order to meet the needs of the process. Like high viscosity,strengthen the function of homogeneous,heat sensitive materials etc.
2. Interface way can choose (hoop, thread, and flange).
3. Material contact parts can choose SS 304, SS 316, SS316L, 2Cr13,9Cr18 etc.
4. Sealing material: Standard rubber ring is silicone rubber, according to the media requests; you can choose fluorine rubber, EPDM, PTFE
5. Frequency speed regulation, non frequency speed regulation, explosion proof design, non explosion proof design.
6. According to customer's workshop height, our engineers will be optimized to facilitate customer needs.

Working Process
1. Soluble (or miscible materials) solid and liquid in accelerated dissolution
2.Immiscible solid-liquid phase suspensions in superfine mixing dispersion
3. Immiscible liquid-liquid phase solution in inclusive micro-emulsion
4. High-viscosity material powder-liquid in overall-mixing and superfine dispersion
5.Nanomaterial aggregates in strong deploymerization and superfine dispersion

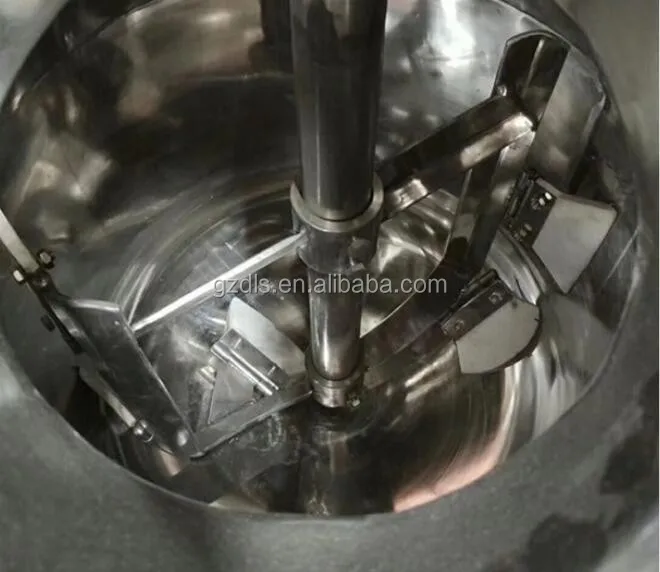

                                                                          Impeller Applications
Anchor
Suitable for stirring medium viscosity material.
Scraper
Petrochemicals, pesticides, fine chemicals, high polymer, pharmaceutical, food, cosmetics, dyes, paints, water treatment and other industries.
Frame
Suitable for stirring porridge-type material.
Paddle
Suitable for low viscosity liquid.such as milk,beverage,beer etc.

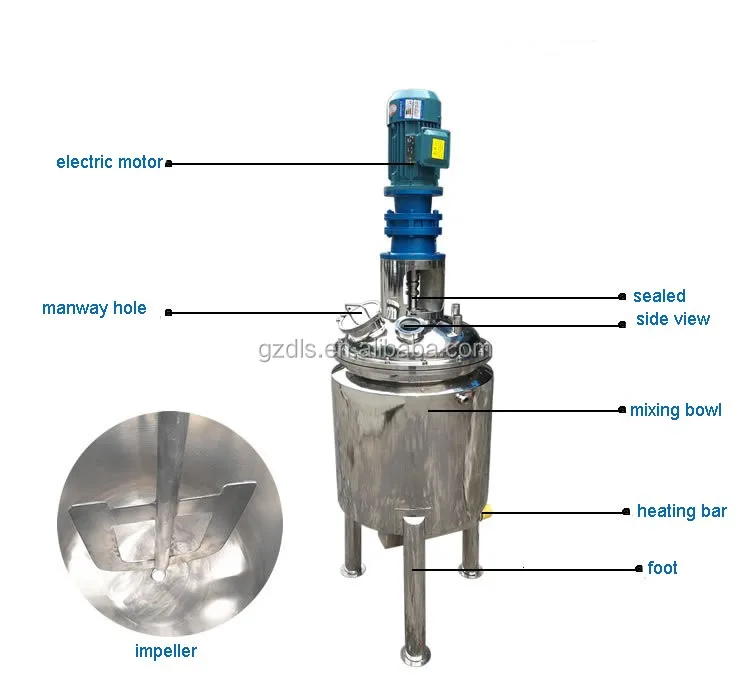

Composition
1
Agitator position
top or bottom or side
2
Agitator type
paddle or propeller or anchor or magnetic stirrer
3
Material
SS304 or SS316
4
Working Capacity
50L to 40000L, even more large.
5
Layer
1. Single layer type
2. Double layer type: (1) dimple jacket
                                     (2) U type jacket
                                     (3) Coil jacket
3. There layer type: add the insulation layer
6
Heating or cooling
(1) Electric heating
(2) Steam heating
(3) Gas heating
7
Top
dish top or conical top or flat
8
Bottom
dish bottom or conical or flat
9
Finsh
3A mirror polish-interior layer and dish top
2B satin polish-exterior layer and conical bottom
10
Joint
welding and polishing without the dead corner of sanitation
11
Component
(1) manhole
(2) CIP spraying ball
(3) Lifting lugs on the top ( selectable)
(4) Outlet or inlet valve,all other type valve ( selectable )
(5) Feet: adjustable feet or wheels ( selectable )
(6) Ladder ( selectable )
(7) Thermometer , Liquid level meter ( selectable )
(8) The pressure gauge ( selectable )
(9) The sample valve
12
Thickness
1mm-8mm even more thick
13
Usage
(1) Chemical liquid mixing
(2) Beverage storage tank,mixing
(3) Oil storage tank
(4) Food industry
(5) Pharmaceutical industry
14
Feet shape
triangle type or cylinder type
Related Products
Application

Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.


a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.

Certifications
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our partner
FAQ


Q.Can you do OEM or produce as our design?
A.Yes, we can make OEM and customized as per customer requirement.


Q. Are you manufacture or trading company?
A. We are factory, we have our own engineer team and own workshop, with more than 11 year's OEM experience.


Q. What's your MOQ?
A. 1PCS/SET.


Q. What's the payment terms?
A. 30%T/T as advance payment, 70% before shipment, we also accept irrevocable L/C at sight, Western Uunion, Money Gram.


Q. What's your delivery time?
A. 10-25 days according to your Qty.


Q. Can you send the machine to my sea port?
A. Yes, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is GuangZhou.


Q. Do you provide installation&debugging service?
A. Yes, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding. If production line, our engineer will go to your place do installation & debugging for you directly.


Q. Do you provide after-sale service?
A. The warranty period is 2-3 year. If there's any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely; other small problem we will guide you to solve it by phone or e-mail; If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation)
