Product Details

Power supply:	AC220V 50Hz;	Brand Name:	DLHED;
Place of Origin:	Liaoning China;	Measurement accuracy:	C%:±0.05%, Si%:±0.10%, Mn%:±0.15%;

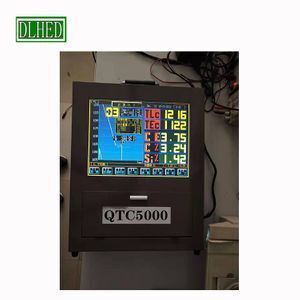

Model Number:	QTC-5000;	Testing time:	2-3 minutes;
Application:	Thermal analysis for cast iron;	Supply Ability:	30 Set/Sets per Month;
Port:	Dalian port;	Temperature range:	1250℃~1350℃;
Packaging Detail:	Wooden case;	Payment Terms:	L/C,T/T;
Working relative humidity:	<80%;	Display:	15 inch TFT color display;
Power consumption:	40W;

Product Description

Instrument specifications
Host computer	Brand industrial computer
Operating temperature	0~40℃
Monitor	15 inch TFT color display
Working relative humidity	<80%
Suitable power supply	AC220V 50Hz
Power consumption	40W
Dimensions	410×450×280mm
The main function
Measurement function	Carbon equivalent, carbon content, silicon content, niobium content, spheroidization rate, ensile strength , Brinell hardness
Calculation function	It can adjust the component addition amount automatically / manually
Data saving function	It can record data according to the measured time, and can record more than 1000 measurements.
Data output function	It is available with a USB or RJ45 connector. And can be other computer transfer output data
History reproduction function	Historical measurement data, cooling curve reproduction
Measuring range and accuracy
Name	Measurement range	Measurement accuracy
CEL	2.50%~4.80%	±0.08%
C%	2.30%~4.20%	±0.05%
Si%	0.60%~3.80%	±0.10%
Mn%	010%~1.40%	±0.15%
Spheroidization rate	60%~99%	±5%

Main Features:

1. The analyzer adopts electromagnetic interference resistance, dust proof, ultra-thin and portable design, easy to operate, non-professional personnel can operate, can be connected with other electronic equipment.

2. The analyzer is equipped with multiple lines, in view of different type of molten iron and the actual situation of molten iron, each factory can choose the suitable line, to make the detection more scientific and accurate.

3. The analyzer works by improved evaluation methods, can automatically control the important metallurgical parameters, satisfy the requirement of the foundry production quality control; can remedy deficiency what "spectrum" is difficult to measure nonmetallic elements (C, Si) accurately, and the time requirement that conventional instrument can't satisfy the rapid analysis.
