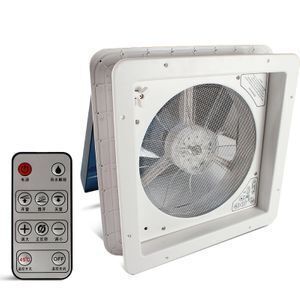

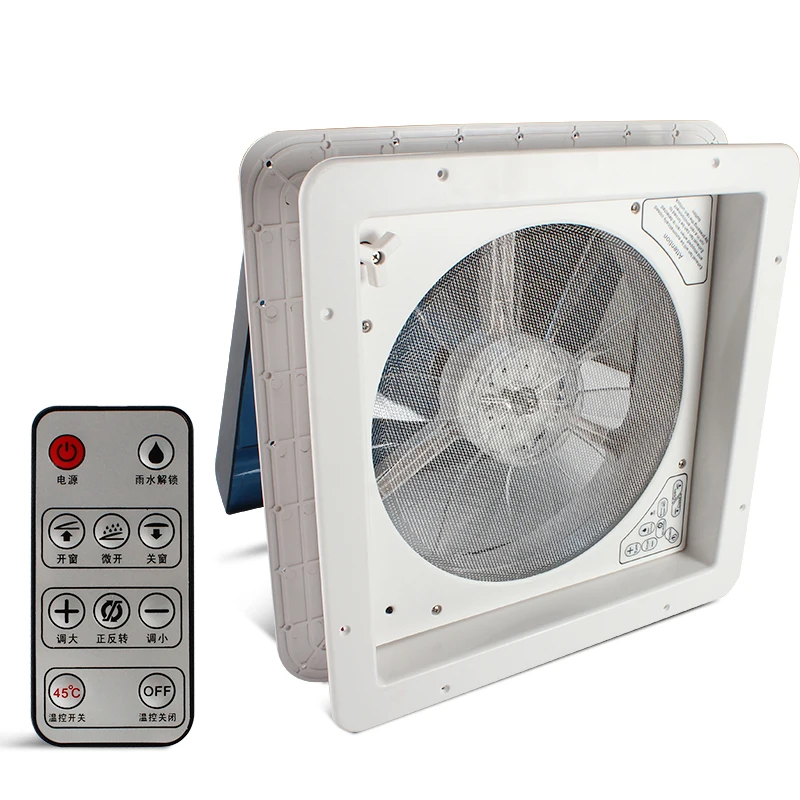

TYTXRV 14' CE Certificated 420mm 12VDC Remote Controller RV Roof Vent Fan

Supplier: Shenzhen Tianya Tongxing Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms TYTXRV Tina
Price: $96.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Cut-out dimensions:	340 x 340 mm;	Package Type:	1piece/1box;
Model Number:	010028;	Voltage:	12V / 24V;
Air flow volume:	10-15 CBM/Min;	Installation thickness:	38-95 mm;
RMP:	1000-1800/Min;	Power:	5-30W adjustable;
Current:	0.5-2.5A;	Dimemsions:	420 x 420 x 182 mm;
Single gross weight:	6 KG;	Fan blade:	10;
Selling Units:	Single item;	Certification:	ECE;
Brand Name:	TYTXRV;	Single package size:	46X45.5X20 cm;

TYTXRV 14' CE Certificated 420mm 12VDC Remote Controller RV Roof Vent Fan

Brand: TYTXRV
Part number: 010028
Dimensions: 420 x 420 x 182 mm
Cut-out dimensions: 340 x 340 mm (max: 380 x 380 mm)
Installation thickness: 38-95 mm
Voltage: 12V / 24V
Current: 0.5-2.5A
Power: 5-30W adjustable
Air flow volume: 10-15 CBM/Min
RMP: 1000-1800/Min
Fan blade: 10

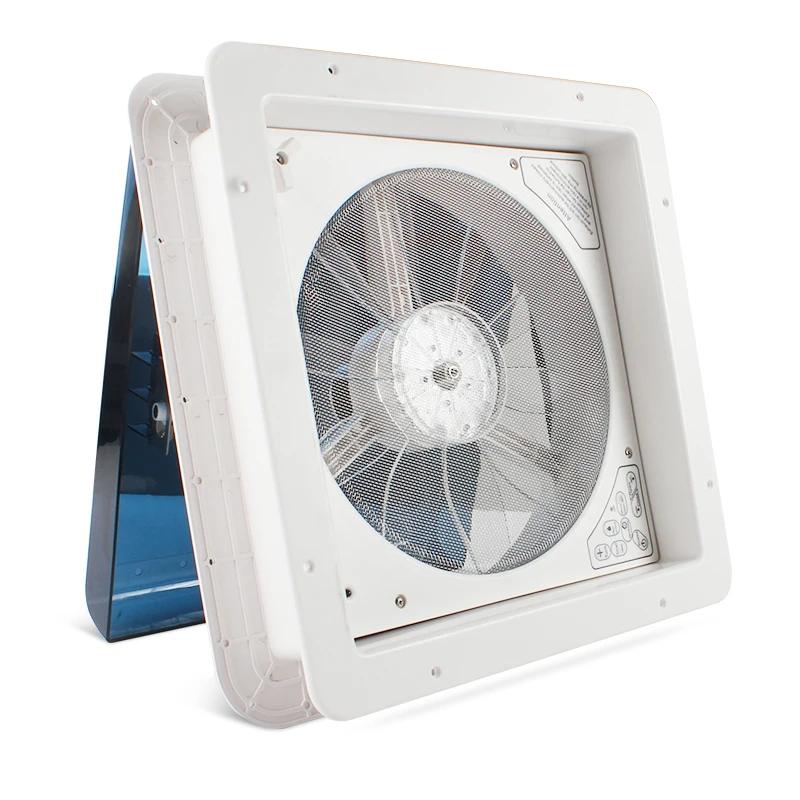

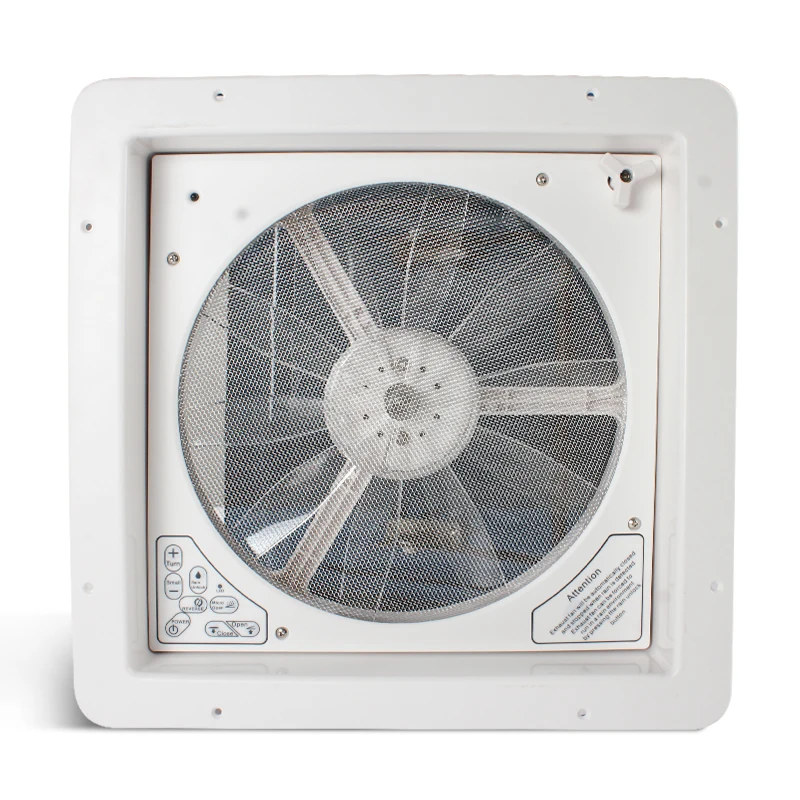

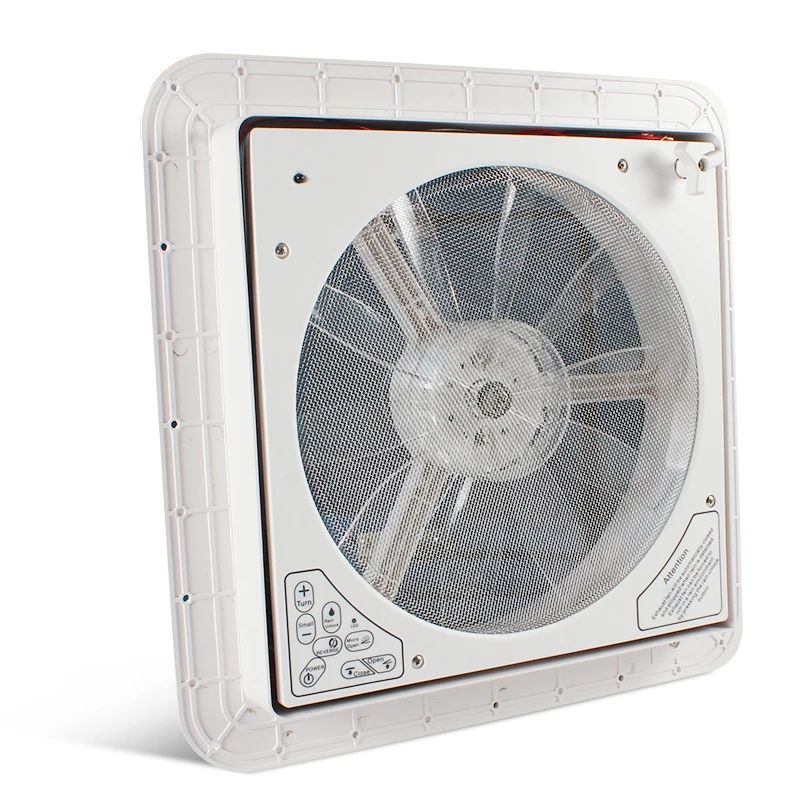

Features: case made of imported and anti-yellowing plastics; equipped with stainless steel insect screen
Package dimensions: 440 x 440 x 225 mm
Gross weight: 8.5 Kgs

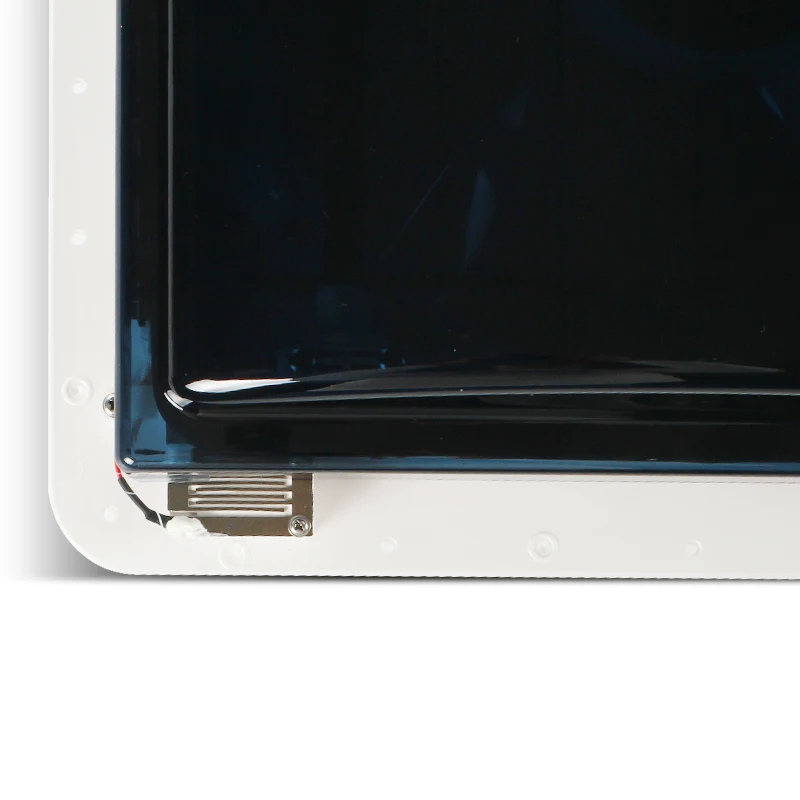

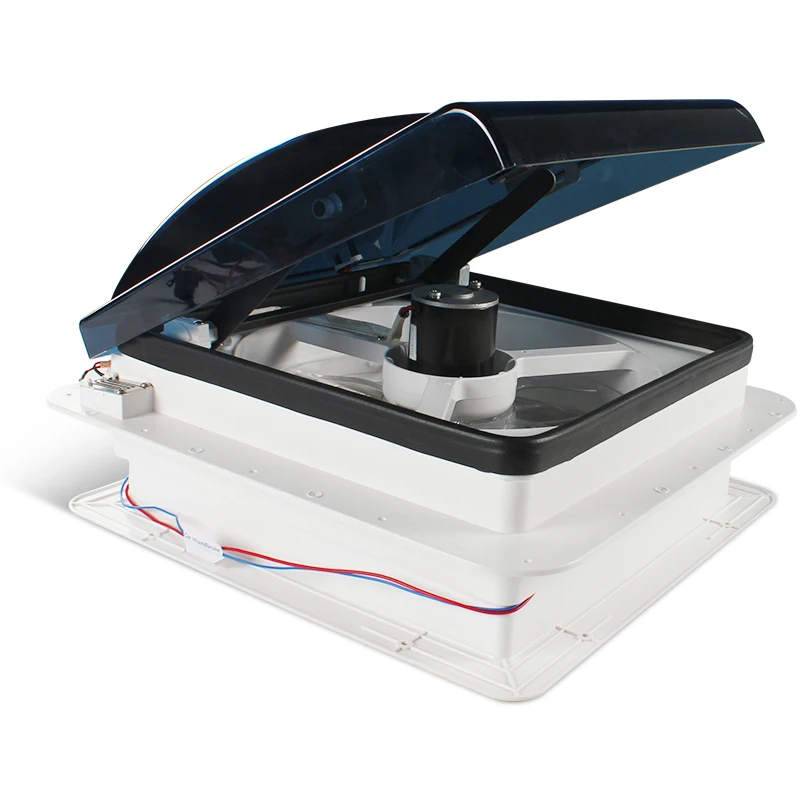

TYTXRV^® roof vent fan is dedicated to high-class and smart RVs, with the functions of both supplying and exhausting air. The vent fan cover in gray black color allows the light to enter the van compartment. It brings your RV with light and fresh air.

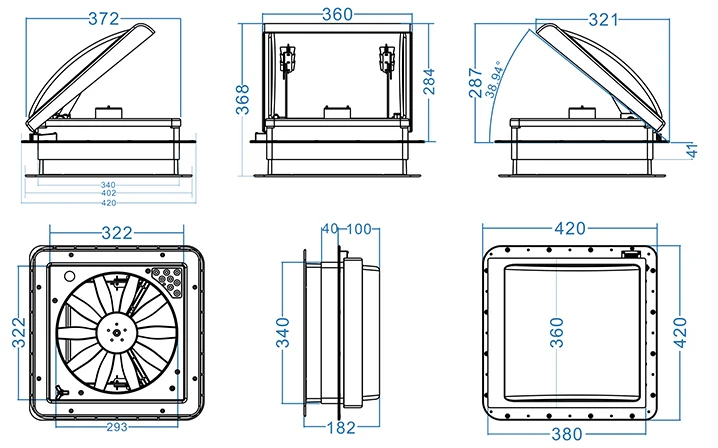

DRAWINGS (Electric model)

SPECIFICATIONS:

Model	Voltage	Power	Opening fit size	Exhaust volume	Thickness	GW
Electric	12V	5-30W	340340mm (Max.380380mm)	10-15 m³/min	40-110 mm	8.5 Kgs
	24V
Manual	12V
	24V

FEATURES:

1. Casing made of imported plastic raw material, long-lasting and anti-yellowing

2. Motor made of pure copper core, reliable and highly efficient

3. Fan with 10 blades, running more stable and more quiet

FUNCTIONS AND COMPARISON:

Function	Electric model	Manual model
Automatic close when the rain sensor detects raining. The indicator light turns on. The sunroof cannot be opened unless pressing the “Unlock” key.	YES	NO
Sunroof can be opened slightly while can still function with air supply / exhaust and rain proof. Suitable for night parking and air exhausting while driving.	YES	NO
Optional installation of the remote touch control panel	YES	NO
On parking, the vent fan will automatically exhaust air when the temperature is above 50 degrees and it will stop when the temperature is lower than 45 degrees.	YES	NO
One key to open or close the sunroof	YES	NO
Automatically close the vent fan when the parking brake lever is released. (Need wired connection between the vent fan and the brake control system, see the Wiring section in the product manual)	YES	NO
6-level speed adjustment suitable for air freshening requirements in different time and scenarios	YES	YES

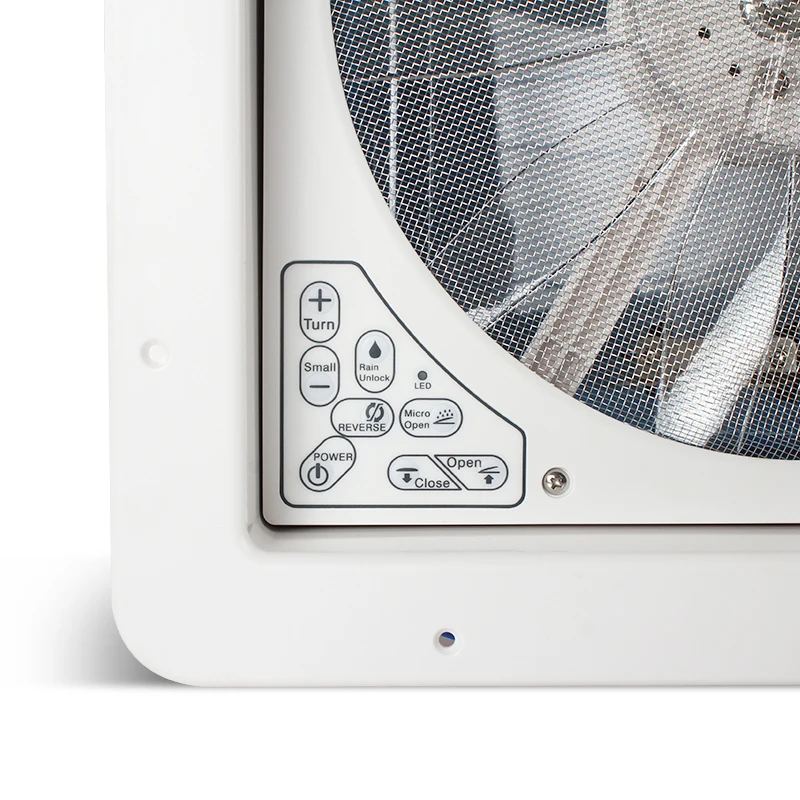

One key to enable air supply or exhaust. Press the Reverse key to switch between air inlet or air outlet	YES	YES
Press the Slight Open key for 3 seconds to enable or disable the automatic exhausting for high temperature. A long beep sound indicates “Enable”.	YES	NO
Press the Unlock key for 3 seconds to enable or disable sunroof automatic closure when rain is detected. A long beep sound indicates “Enable”.	YES	NO

WIRING:

1.5 m² or above electric wires are required

Red wire connects the battery positive terminal

Black wire connects the battery negative terminal

Blue wire connects the brake line. When the parking brake lever is released, the sunroof is closed. When the parking brake lever is engaged, the vent fan will exhaust air as soon as the temperature is high.

High voltage protection. When the voltage exceeds over 16V, beep sound every second and all keys disabled.

Low voltage protection. When the voltage is lower than 8V or not enough power, buzzer keeps ringing.

6-level speed adjustment. On Level 0, fan is not working. The fan will first stop still before switching to either air supply or air exhaust mode

v Level 1, Power: 4W, quiet, suitable for night sleep

v Level 2, Power: 8W, quiet,

v Level 3, Power: 14W, Low noise

v Level 4, Power: 22W, Little noise

v Level 5, Power: 30W, Strong, fast air refreshing and cooling

v Level 6, Power: 40W, Super strong, fast cooling

Part number	Included in Package
0100481	Vent Fan (Manual model)
010028	Vent Fan (Electric model) + Remote controller
0100340	Vent Fan (Electric model) + Remote controller + Remote touch control panel
