MIG Oliver COPPER FREE welding wire AWS ER70S-6 / EN SG2 (G3Si1) / EN SG3 (G4Si1) / AWS ER50-6, ER49-1
-
Supplier: Oliver Ltd. -
Region: -, Belarus -
Contact: Mr. Andrej Yurashevich -
Price: $1030.00 / >=20 pieces -
Min. Order: 20 pieces
| Coating: | copper free; | Supply Ability: | 1500 Ton/Tons per Month; |
| Product name: | Welding wire ER70S-6; | Standard: | AWS ER70S-6, DIN SG2, EN G3Si1, GB : ER50-6; |
| Winding: | layer precision; | Welding types: | MIG/MAG, GMAW; |
| Material: | Low carbon steel; | Brand Name: | Oliver; |
| Diameter: | 0.8-2.0 mm; | Spools: | plastic/metal; |
| Port: | FOB Klaipeda or FCA Borisow; | Packaging Detail: | Spool 5 kg D200, 200 spools per pallet Spool 15 kg D300/BS300, 72 spools per pallet Spool 18 kg BS300, 60 spools per pallet Drums 250/300 kg, 1000/1200 kg per pallet; |
| Weight: | 5-300 kg; | Payment Terms: | T/T; |
| Melting Point: | International standard; | Feature: | Excellent welding performance, perfect feedability; |
| Application: | machinery, automotive, construction, railway; | Flux Content: | No flux; |
| Place of Origin: | Belarus; | Package: | spools/drums/rods; |
ER70S-6 / SG2 / SG3 / G3Si1 / G4Si1 is a low carbon steel welding wire. It is suitable for 100% CO2 or 80/20 (Ar + CO2) gas mix protective welding with stable feedability, good welding seams, almost no spatters and excellent welding process properties.
ER70S-6 is widely used in bridges, vehicle manufacturing, shipbuilding, hydraulic engineering, steel structure engineering etc.
Advantages of copper free welding wire:
- Minimum spatter;
- Excellent welding performance and feedability;
- More stable arc;
- Longer lifetime of welding torch parts;
- ECO-friendly;
MIG diameter: 0.8mm-1.6mm
Typical chemical composition of welding wire (%):
Item | C | Mn | Si | S | P | Cu | Cr |
Sample value | 0.08 | 1.52 | 0.88 | 0.015 | 0.020 | 0.20 | 0.020 |
Mechanical properties of deposited metal:
Item | Tensile Strength Rm(MPa) | Yield Strength ReL(MPa) | Elongation (%) | AKV Impact value (J)(-30°C) |
Sample value | 550 | 430 | 30 | 90 |
Welding current (DC+)
| Wire diameter (mm) | Φ 0.8 | Φ 1.0 | Φ 1.2 | Φ 1.6 | |
| Current (A) | Flat | 50-120 | 80-250 | 100-350 | 170-500 |
| PF / Overhead | 500-100 | 80-160 | 80-180 | 150-300 | |
| PG | 50-120 | 80-230 | 80-250 | 170-340 | |
| Horizontal | 50-120 | 80-250 | 100-300 | 170-400 | |

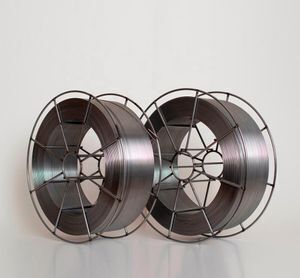

MIG packing type: D200 spool (max 5 kg), D300 spool ( max 15 kg), K300 spool (max 18 kg), BS300 (max 18 kg)
Drum packing ( 250-300 kg)
Plastic spools D200 (5kg) and D300 (15kg), wire baskets K300, BS300 (15kg and 18kg) with precision layer winding, wrapped in vacuum film with silica gel insert and packed in carton box. Delivered on wooden pallets (standard 800 x 1200 mm) 1080 each. Other pallets are possible under agreement with customer.
Drums 250kg each (we can provide all necessary accessories: plastic cap, adapter, cable-duct of any length, plastic cover).
-
