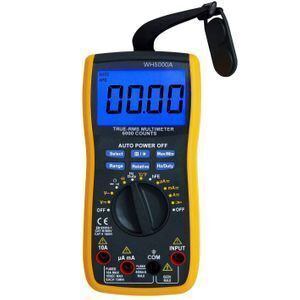

multimeter True RMS 6000 counts auto range Best Digital Multimeter WH5000A multitester

Product details
Dimensions:188x81x48mm;Package Preview:https://sc01.alicdn.com/kf/H9f43529fb3a04b1fa4cb21c94f296d4eP.jpg_640x640.jpg;
Brand Name:WHDZ or OEM;Color:Black+yellow;
Model Number:WH5000A;Package size per batch:36X30X46 cm;
Measuring Resistance Range:600-6K-60K-600K-6M-60MΩ;Measuring Capacitance Range:40n-400n-4u-40u-400u-20mF;
Operating Temperature:normal;Measuring Current Range:600u-6000u-60m-600m-10A;
Measuring Inductance Range:NA;Package Type:Packing: color box Packing quantity: 20PCS/CTN Carton size: 35.5x32x44CM G.W. / N.W.: 13.6/12.6KG;
Selling Units:Multiple of 20;Gross weight per batch:12.6 KG;
Measuring Voltage Range:60m-600m-6-60-600V;Place of Origin:Fujian China;



Characteristic
All round observation Large LCD
Easy to read in dark condition with blue backlight
Data hold function for easy reading after measurement
With MAX and MIN value display
Double fuse and anti-burn design, safe and reliable
With frequency and temperature test function
With PVC shockproof holster
Can measure high current with clamp meter WH3302 or WH3303
with 2mF capacitance test
A magnetic button hook is convenient to adsorb on the surface of the iron object.

Technology features
DCV: 60m-600m-6-60-600V                                         ±0.5%
ACV: 60m-600m-6-60-600V                                         ±1.0%
DCA: 600u-6000u-60m-600m-10A                               ±1.8%
ACA: 600u-6000u-60m-600m-10A                               ±2.0%
Resistance: 600-6K-60K-600K-6M-60MΩ                    ±1.0%
Capacitance:60n-600n-6u-60u-600u-60mF                 ±5.0%
Frequency: 9.99~9.99MHz                                            ±3.0%
Temperature: -20ºC~1000ºC/-4ºF~1832ºF                   ±2.0%
Duty cycle: 0.1%~99.9%                                               ±0.1%
DCA(with extra clamp meter WH3302 or 3303):0A-600A      ±1.5%
ACA(with extra clamp meter WH3302 or 3303):0A-600A      ±1.5%
Description
LCD size: 64x42mm
Max display: 5999
Low battery indication: yes
Overload protection: yes
Auto range: yes
Diode test: yes
Transistor test: yes
Continuity buzzer test: yes
Auto power off: yes
Data hold: yes
Backlight: yes
Power supply: one 9V 6F22 batter
Product size: 188x81x48mm
Product weight: about 357g (with holster)
Standard accessories: meter (with battery), holster, multi-function socket, test lead, thermocouple, manual  600A clamp jaw (optional)



     Packing details

     Packing: color box
     Packing quantity: 20PCS/CTN
     Carton size: 35.5x32x44CM
     G.W. / N.W.: 13.6/12.6KG
