High quality ADSS tension clamp
-
Supplier: Shandong Haihong Electric Power Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Ms Tinna Kong -
Price: $2.00 / >=1000 sets -
Min. Order: 1000 sets
| Grip strength: | 10/13/15/25/30/40/50/60/70/80KN; | Supply Ability: | 100000 Set/Sets per Month; |
| UTS: | Over 95%; | Port: | Qingdao; |
| Model Number: | Cable Clamp; | Usage: | dead end tower,tension tower,corner pole; |
| Compose: | inner rods,outer rods,connector fittings; | Place of Origin: | Shandong China; |
| Packing: | carton box; | Material: | Aluminium alloy or aluminium-coated steel; |
| Use span: | 100-1000m; | Color: | Silvery white; |
| Modle: | ANZ; | Brand Name: | Haihong; |
| Corner pole: | >25°; | Packaging Detail: | carton box or according to your requirements; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; |

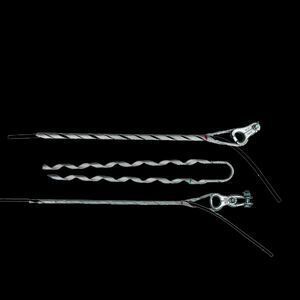

High quality ADSS tension clamp
THE PREFORMED TENSION SET is widely used for the installation of bare conductors or overhead insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.
ProductName | Preformed Tension Set |
Place of origin | Shandong of China |
Brand | Haihong |
Material | Galvanized steel wire / Aluminum clad steel wire |
Color | Silver |
Product Type | Power accessories |
Shandong HaiHong Electric Power Equipment CO.,LTD,established in 2007, Located in Shandong, China (Mainland). We have 3000 square meters factory. Our main product including ADSS OPGW accessories(Performed Tension Clamp, Preformed Suspension Clamp,Vibration Damper, Cable Joint Box, Down Lead Clamp) and so on.
HaiHong have advanced production testing equipment, and with reference to the United States, Japan, Germany and other advanced industrial countries of technical standards, product quality, both at home and abroad enjoy high reputation, high quality quality of service, good reputation, has won the highly recognized by the majority of users.
Tension Clamp Components | ||
1 | U-Anchor shackle | Hot-dig galvanized steel |
2 | Paraller plate | Hot-dig galvanized steel |
3 | Clevis Thimble | Hot-dig galvanized steel |
4 | Outer armour rods | Aluminum clad steel |
5 | Inner reinforcing armour rods | Aluminum clad steel |
6 | Parallel groove clamp | Aluminum Alloy |
7 | Earth bonding laed | Aluminum |
Tension Clamp Order Notice |
| |
| ||
1 | Choose the suitable suspension clamp according to the outer diameter of OPGW cable and RTS.Suitable for long span river,high span valley etc. special place. |
|
2 | the quantity configuration : 1 set / terminal line tower,2 sets/strain pole tower |
|
3 | the turning direction of inner preformed wire different from the outer ones, the standard configuration is turning right, if turning left,please note it in the contract. |
|
4 | suggest to use one time after the clamp afford full strain |
|
5 | clamp strength:70KN,100KN,120KN,160KN,210KN,250KN,300KN etc. |
|
-
