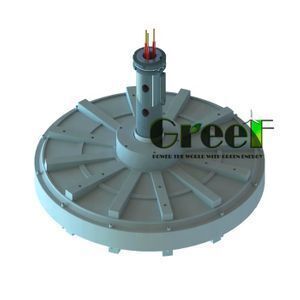

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

Supplier: Qingdao Greef New Energy Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Christina Lei
Price: $150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Start torque:	<1N/M;	Port:	Qingdao;
Packaging Detail:	Foam+Plywooden case;	Payment Terms:	T/T,Western Union,MoneyGram,Alibaba Trade Assurance;
Portection grade:	IP 54;	Generator material:	Aluminium body+copper wire+Nd-Fe-B;
Place of Origin:	Shandong China;	Magenent Type:	Nd-Fe-B;
Model:	AFPMG;	Supply Ability:	7000 Set/Sets per Year;
Rated rotor speed:	100rpm 180rpm;	Efficiency:	>90%;
Generator type:	3 phase AC;	Model Number:	PMG Series;
Structure:	outer rotor;	Bearing brand:	NSK;
Brand Name:	GreeF;

Low RPM Axial flux coreless permanent magnet generator

50W-20kW

They have two types: Outer Rotor and Inner rotor

Outer rotor: The shell will rotate to produce electricity, the shaft is fixed.

Inner rotor: The shaft will rotate to produce electricity, the shell is fixed.

Magnetic Generator Product Description

GreeF company supply modified kinds of Coreless Disk Permanent Magnet Generator. The main models are as follow:

Outer Rotor Model:

The shell will rotate to produce electricity, the shaft is fixed.

GDG-0.05kW 200RPM
GDG-0.1kW 200RPM
GDG-0.2kW 200RPM
GDG-0.3KW 200RPM
GDG-0.5KW 200RPM
GDG-1KW 180RPM
GDG-1KW 200RPM
GDG-2KW 120RPM
GDG-2KW 180RPM
GDG-3KW 100RPM
GDG-3KW 180RPM
GDG-5KW 100RPM
GDG-5KW 150RPM
GDG-10KW 100RPM
GDG-12kW 100RPM
GDG-20kW 150RPM

Inner Rotor Model:

The shaft(axis) will rotate to produce electricity, the shell is fixed.

GDI-0.05kW 200RPM
GDI-0.1kW 200RPM
GDI-0.2kW 200RPM
GDI-0.3kW 200RPM
GDI-0.5kW 200RPM
GDI-1kW 150RPM/180RPM/300RPM
GDI-2kW 180RPM
GDI-3kW 180RPM
GDI-5kW 100RPM

The magnetic generators are always being used in vertical axis wind turbine generator, hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.

Magnetic Generator Overview

The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.

The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator

has following features:

Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency

Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M

Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.

Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.

Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.

Gearless, direct drive, low RPM generator.

High standard, quality components for use in harsh and extreme environments for wind turbines

High efficiency and Low mechanical resistance energy loss.

Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.

Magnetic Generator Technical Data

Model	GDG-0.5KW-200	GDG-1KW-180	GDG-1KW-200	GDG-2KW-120	GDG-2KW-180
Rated Power	0.5KW	1KW	1KW	2KW	2KW
Rated Rotate Speed	200 RPM	180RPM	200RPM	120RPM	180RPM
Rated Voltage	56VAC	56VAC	56VAC	115VAC	115VAC
Rated Current	9A	12A	17.9A	10A	17.4A
Efficiency	>85%
Wending Method	Y
Insulating Resistance	100Mohm Min(500V DC)
Leakage Level	<5 ma
Start Torque	<0.1N/M	<0.3 N/M	<0.3 N/M	<0.5 N/M	<0.3 N/M
Phase Type	3 Phase
Structure	Out rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Diameter	320	380	380	550	450
Generator Shell Length	232	241	241	330	258
Weight	20	32	32	75	51
Shaft drameter	45	50	50	78	59
Generator shell material	Aluminum alloy
Shaft material	Carbon steel
Bearing	Deep groove ball bearing

Model	GDG-3KW-100	GDG-3KW-180	GDG-5KW-100	GDG-5KW-150	GDG-10KW-100
Rated Power	3KW	3KW	5KW	6KW	10KW
Rated Rotate Speed	100RPM	180RPM	100RPM	150RPM	100RPM
Rated Voltage	380VAC	380VAC	380VAC	380VAC	400VAC
Rated Current	4.6	4.7	7.6	15.2	14.5
Efficiency	>85%	>85%	>88%	>88%	>88%
Wending Method	Y	Y	Y	Y	Y
Insulating Resistance	100Mohm Min(500V DC)	100Mohm Min(500V DC)	100Mohm Min(500V DC)	100Mohm Min(500V DC)	100Mohm Min(501V DC)
Leakage Level	<5 ma	<5 ma	<5 ma	<5 ma	<5 ma
Start Torque	<1 N/M	<0.5 N/M	<0.5 N/M	<1 N/M	<1N/M
Phase Type	3 Phase	3 Phase	3 Phase	3 Phase	3 Phase
Structure	Out rotor	Out rotor	Out rotor	Out rotor	Out rotor
Stator	Coreless wire coil	Coreless wire coil	Coreless wire coil	Coreless wire coil	Coreless wire coil
Rotor	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet	Rare Earth Permanent Magnet
Generator Shell Diameter	620	550	700	620	770
Generator Shell Length	410	330	400	410	590
Weight	110	65	125	110	245
Shaft drameter	80	78	98	80	85
Generator shell material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Shaft material	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel
Bearing	SKF Deep groove ball bearing	SKF Deep groove ball bearing	SKF Deep groove ball bearing	SKF Deep groove ball bearing	SKF Deep groove ball bearing

Magnetic Generator Drawing Sample

Magnetic Generator Power Curve

ON-LOAD Power Curve

If you need the datasheets specification of other model generator, please send the inquiry with your interested model (GDG or GDI series), we will send the details specification to you ASAP.

Magnetic Generator Pictures

Magnetic Generator Packaging & Shipping

1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2. Pakage size and weight please refer to our sales.

3. Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

Our Services

OEM service

Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
