china pvc cpvc upvc hdpe pe plastic water hydraulic 16-63mm double pipe making machine price for sale
- 20000.00 set
| Brand Name: | FAYGO; | Certification: | CE ISO; |
| Motor: | SIEMENS; | Contactor: | SIEMENS; |
| Cooling way: | Recycling Water; | Inverter: | ABB; |
| After-sales Service Provided: | Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support; | Application: | Pipe; |
| Screw&barrel: | 30CrMoAlA; | Weight: | 25-40T; |
| Condition: | New; | Packaging Detail: | Film covered and Wooden box; |
| Key Selling Points: | Long Service Life; | Voltage: | 380V 50HZ; |
| Temperature-controlled: | Japanese OMORN; | Power(W): | 60-300kw; |
| Warranty: | 1 year; | Screw Design: | Double-screw; |
| Place of Origin: | Jiangsu China; | Dimension(L*W*H): | 38m*2.8m*2.5m; |
| Port: | shanghai; | Output (kg/h): | 250 - 380; |
| Gearbox: | DELING; | Supply Ability: | 20 Set/Sets per Quarter; |
| Plastic Processed: | PVC; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Screw diameter (mm): | 65 mm; | Heating way: | Foundry Aluminum Heater; |
| Applicable Industries: | Manufacturing Plant; | Automatic Grade: | Fully Automatic; |

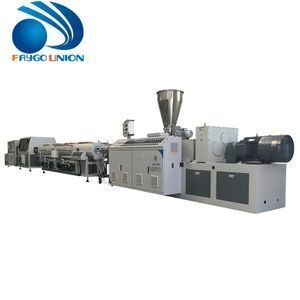

20-63mm PVC Double Pipe Extrusion Machine Line
Features of our machine PVC Pipe Making Machine:
PVC electrical conduit pipe extrusion line is used to produce pvc electric conduit pipe with diamater from 16 to 63mm, which are flexible, bendable in the aspect of electric wire protecting.
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: Friend machinery succeed in designing and producing the biggest conical twin-screw extruder in the world.
Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.
1 | SJSZ65/132 Conical Twin Srew Plastic Extruder | 1set |
2 | Mould | 1set |
3 | Vacuum Calibration Tank | 1set |
4 | Two caterpillars Hauling Machine – | 1set |
5 | Pipe Cutting Machine | 1set |
6 | Stacker | 1set |
Machine Picture
1.The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.
2.The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc.
3.You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
4.The equipment is with the reliable performance and high production efficiency.

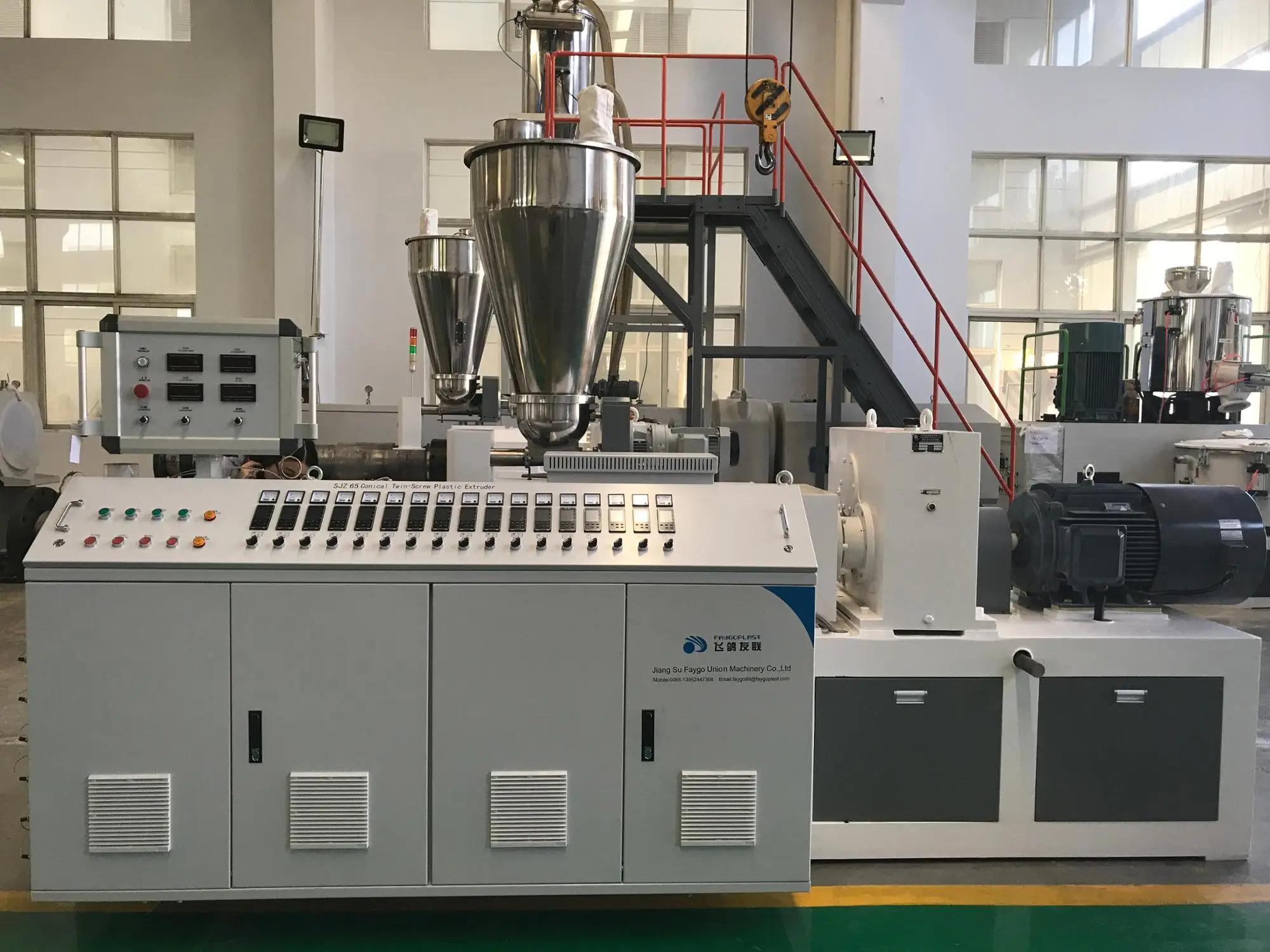

1. SJSZ65/132 Twin screw extruder machine:
Screw and Barrel: Design for CPVC material, Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
2. Pipe Mold
Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.
3. Vacuum calibration tank
Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting Distance equal to 800mm
4. Haul off and cutting machine
Haul-off Bracket Length 1200mm, Adopt Pneumatic gas cylinder,
Adopt 1.5kw*2sets ABB Inverter, Belt 80mm*2500mm.

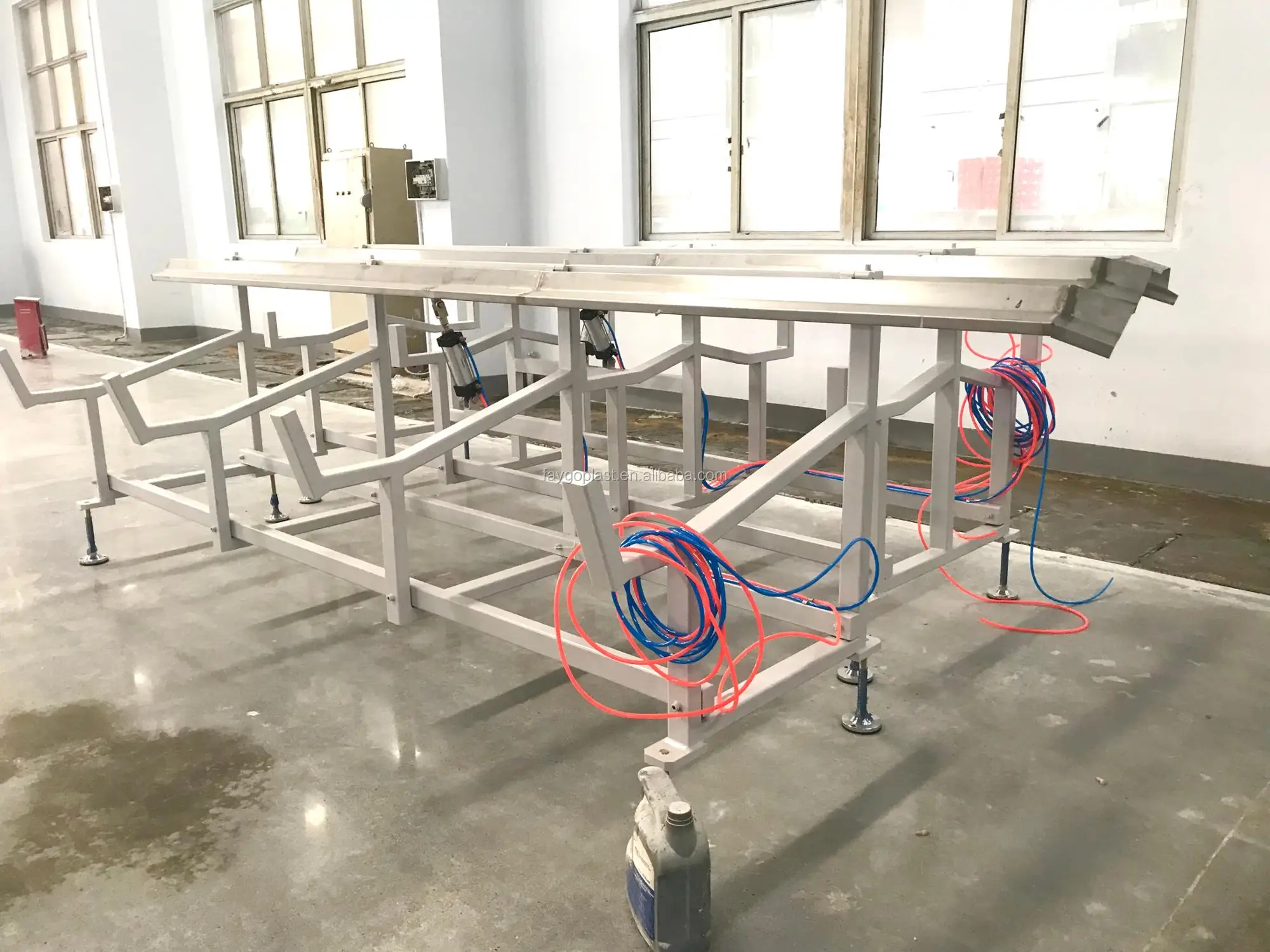

5. Stacker
Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.

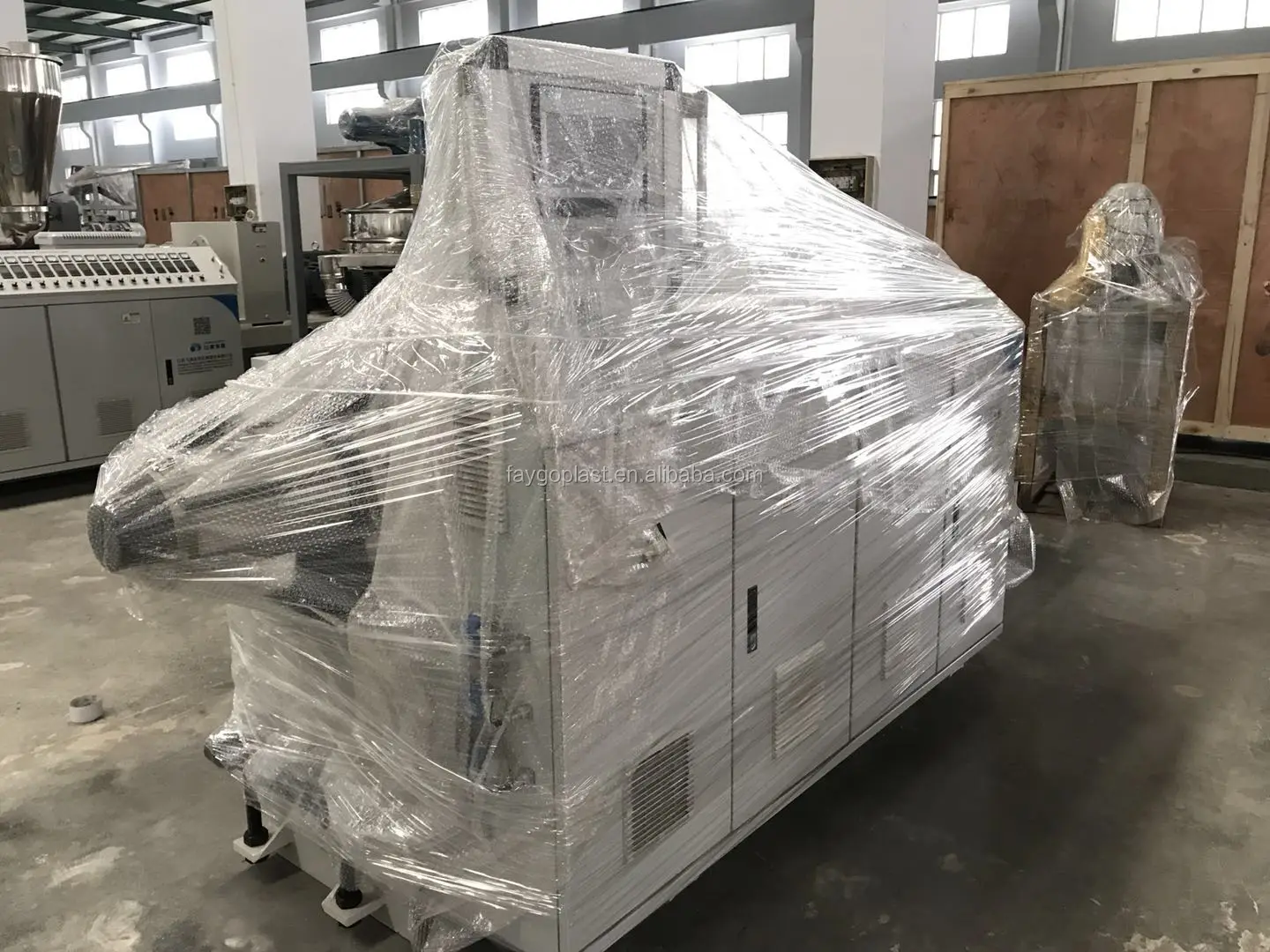

Packing by film or wooden cases.
