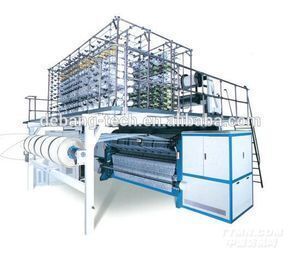

45 Bars High Speed Multi-bar Raschel warp knitting machine

Supplier: Jinhua Debang Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Danny WU
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Brand Name:	DEBANG;
Voltage:	Customized;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	In wooden cases or pallet + Stretching Film Packing Seaworthy packing;	Supply Ability:	50 Set/Sets per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Negotiated;	Gauge:	E24;
Power(W):	7.5KW;	Working Width:	200";
Place of Origin:	Zhejiang China (Mainland);	Weight:	Customized;
Port:	Shanghai;	Warranty:	1 Year;
Bar Number:	45 Bars;	Dimension(LWH):	Customized;
Model Number:	DB-RS45;	Delivery Detail:	40 days;
Certification:	Customized;	Production Capacity:	High;

Product Description

Application:

RS45 Multi-bar Raschel warp knitting machine, it is used to make Garment textile purpose. It is suitable for high-grade elastic, rigid lace fabric, lace band, full width fabric, etc..

Technical information:
Gauge	E24
Working Width	200”
Number of Bars	2 Guide Bars, 41 Pattern Bars, 2 Spandex Bars
Speed	20-700 rpm ( Depend on pattern and raw material )
Guide Bar Shogging Manner	Electronic shogging
Let-off Manner	4 set of EBA
Pattern Bar Let-off Manner	Creel let-off
Draw-off manner	Electronic draw-off
Take-up manner	Uniform take off
Shogging Amount	170 Needles
Pattern Needle	Moved pattern bar
Beam Size	Ground bar 30″x21”, Spandex Bar 21″x21”
Main Motor	7.5 KW

Main Features

1) Ground bar and Jacquard bar are controlled by servomotor.
2. High power servo motor control string bar system, to achieve wider range pattern and more convenient pattern transform.
3) Ground bar and spandex use EBA yarn let off, yarn let off amount can be 50 segments.
4) Electronic drawing mechanism replace of complicate gear mechanism, drawing mechanism rate will automatically adjust only by setting the fabric density; Selvage yarn use electronic positive yarn let off; the whole structure with two ladders and one pass, considering the operation convenience.

Product Advantage:

1) 200 inch working width, the capacity is 1.5 times compare with 134 inch machine.
2) Computer control, Change pattern more convenience compared with the chain link machine.

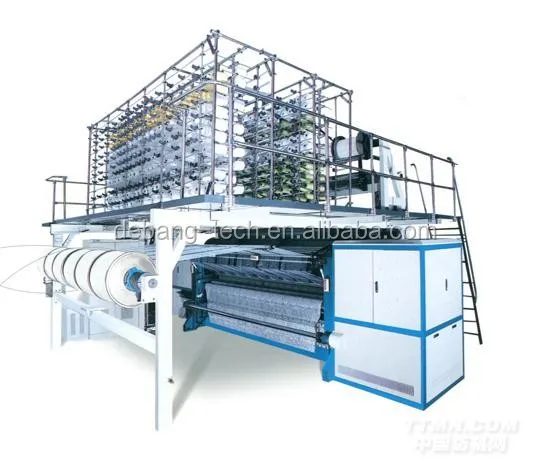

Product Show

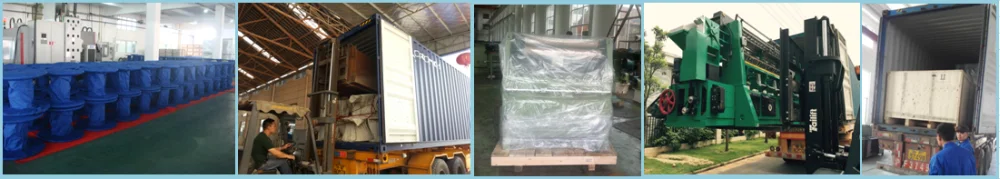

Packing & Delivery

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* View our Factory.

After-Sales Service

* Training how to use the machine.
* Engineers available to service machinery overseas.

Exhibition

Our Company

About us

Debang Technology is a leading name in the Textile Industry. We are offering qualified products and professional services to the textile customers all over the world.

Our main products are: Warp knitting beams, Warping machines, Warp knitting machines, Circular knitting machine, Processing & Finishing machines, and relevant spare parts, etc.

Our suppliers are mainly based in China, all of them rank No.1 in their segments, which enable us to meet your permanent demand: consistent high quality at competitive price.

Qualified products, reasonable price and professional services are the keys to our successes, and encourage our customers to repeat orders with us. We welcome every new customer come to us for eternal cooperation.

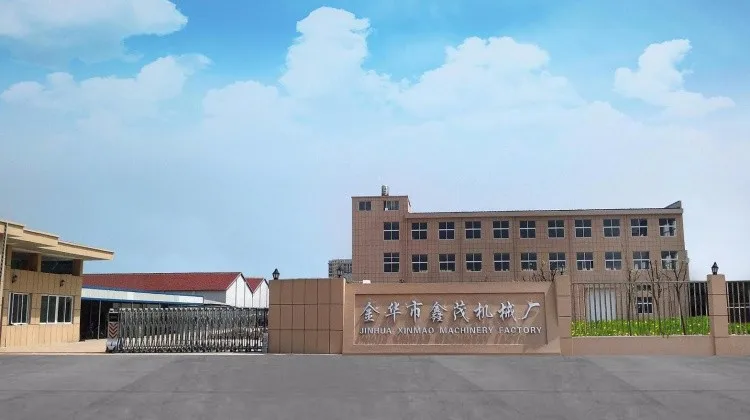

Our beams factory—Jinhua Xinmao Machinery Factory has been in this line since from 1998. With unremitting efforts, the company has grown to the largest manufacturer of warp knitting beams in the world. Daily capacity is 200pcs, 40% beams are exported to more than 10 countries, like India, Turkey, Korea, Russia, Indonesia, etc. with high reputation. They are used widely for warp knitting machines, such as Karl Mayer, LIBA, etc.
