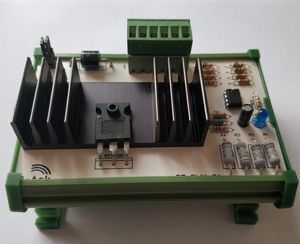

RF-BVK-S1 Pressure Control Module
- 110.16 unit
| Payment Terms: | T/T; | Service Location: | Istanbul; |
| Service Provider: | Overseas service center; | Service Type Provided: | Spare Parts; |
| Country: | Turkey; | Packaging Detail: | Plastik air buble; |
| Model Number: | RF-BVK-S1; | Brand Name: | RFtek; |
| Warranty after Service: | 1 Year; | Machinery Type: | Machine Tool Equipment; |
DESCRIPTION OF THE PRODUCT:
The RF-BVK-S1 pressure control module is a voltage-to-current converter device. Generaly used for converting the voltage outputs of CNC controllers (0-10VDC) into current outputs (0-0,5A, 0-1A, 0-1,5A or 0-2A).
APPLICATIONS:
The RF-BVK-S1 generaly used on pressbrake and gilloitin shear machines to control proportional pressure valves. It is used also in press brakes for hydrualic crowning systems proportional valves. It is possible to use RF-BVK-S1 to control speed valves in open loop.
COMPATIBILITY:
This product can be used as replacament for Cybelec V-MVP-100 module.
TECHNICAL DETAILS:
It can be mounted on a TS32 or TS35 rail inside the electrical cabinet. The heat sinks must remain free in order to ensure sufficient heat dissipation.
ELECTRICAL:
Model | Giris / Input | Cikis / Output |
RF-BVK-S1 | 0-10 VDC | 0.5-2 A |
Example Wiring Diagram
