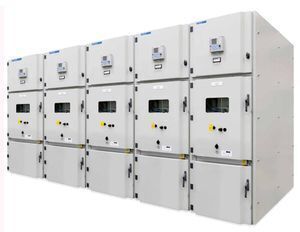

22kV Medium Voltage Switchgear/ Air Insulated Metal Clad Switchgear

Supplier: Hunan Electric Union Corp.
Region: Hunan, China
Contact: Mr Alan Chueng
Price: $8000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Air insulated;	Warranty:	18 Months;
Brand Name:	SafeGear;	Port:	shanghai;
Rated Current:	630-4000A;	Packaging Detail:	Seaworthy packing/wooden case;
Supply Ability:	200 Unit/Units per Month;	Payment Terms:	L/C,T/T,Western Union;
Frequency:	50/60Hz;	Protection Level:	IP4X;
Installation:	Indoor;	Model Number:	KYN28-22;
Insulation:	95kV/38kV;	Place of Origin:	China;
Rated Voltage:	22kV;	Standard:	IEC62271;
Breaking capacity:	25-50kA;

22kV Medium Voltage Switchgear/ Air Insulated Metal Clad Switchgear

Standards

The switchgear and main apparatus contained in it comply with the latest IEC Standards:
• IEC 62271-1 for general purposes
• IEC 62271-200 for the switchgear
• IEC 62271-102 for the earthing switch
• IEC 62271-100 for the circuit-breakers
• IEC 60071-2 for the insulation coordination
• IEC 62271-106 for the contactors
• IEC 60265-1 for the switch-disconnectors
• IEC 60529 for degree of protections

Service environment:
a) Air temperature:Maximum temperature: +40℃; Minimum temperature:-25℃

b) Humidity:Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level:Maximum installation altitude: 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake

Technical data

Rated voltage	kV	22
Rated insulation voltage	kV	24
Rated power frequency withstand voltage	kV 1min	38
Rated lightning impulse withstand voltage	kV	95
Rated frequency	Hz	50/60
Rated short time withstand current	kA 3 s	up to 50
Peak current	kA	up to 125
Internal arc withstand current	kA 1s	up to 50
Main busbar rated current	A	up to 4000
Circuit-breaker rated current	A	630 1250 1600 2000 2500 3150
Circuit-breaker rated current with forced ventilation	A	3600 4000

Vaccum Circuit Breaker

Description	Unit	Value
Rated voltage	kV	22
Rated short-time power frequency withstand voltage (1min)(1min)		38
Rated lightning impulse withstand voltage (peak)		95
Rated freq	Hz	50,60
Rated current	A	630	630	1250	1600	1250	1600	1600	2000
		1250	1250	2000	2500	2000	2500	2500	3150
				3150		3150	4000*	4000*
Rated short-circuit drop-out current	kA	20	25	31.5		40		50
Rated short time withstand current		20	25	31.5		40		50
Rated short time continual time	s	4
Rated peak withstand current	kA	50	63	80		100		125
Rated short-circuit closing current		50	63	80		100		125
Rated single/ back-to-back capacitor bank drop-out current	A	630/400(40kA is 800/400)
Rated capacitor bank closing inrush current	kA	12.5(frequency no more than 1000Hz)
Opening time (rated volt.)	ms	20~50
Closing time (rated volt.)		35~70
Mechanical life	Times	30,000
Rated break times for rated short drop out current		50
Rated operation voltage	V	AC110/220 DC110/220
Rated current of power storing motor	W	70
Average opening speed	m/s	0.9~1.3
Average closing speed		0.4~0.8
Rated operation procedure		opening-0.3s-closing opening-180s-closing opening

Fully type-tested

The switchgear has undergone all the tests required by the international (IEC) Standards. Each switchgear unit is subjected to routine tests in the factory before delivery. These tests are intended to provide a functional check of the switchgear based on the specific characteristics of each installation.

IEC type tests
• Short-time and peak withstand current
• Temperature rise
• Internal arc capability
• Dielectric test
• Making and breaking capacity of circuit-breaker
• Earthing switch making capacity (top application)
• Mechanical operations of circuit-breaker and line
disconnector
• IP degree and impact test

IEC routine factory tests
• Visual inspection and check
• Mechanical sequence operations
• Cabling check
• Electrical sequence operations
• Power frequency withstand voltage
• Measurement of the resistance of the main circuits
• Secondary insulation test

The enclosure is made of aluminium-zinc plated steel sheet by CNC machine, high precise dimension, short production cycle, excellent mechanical strength and nice appearance. The busbar compartment, VCB handc art compartment, cable compartment and relay compartment are separated by metal sheet. Flexible operation for handcart movement, clear position instruction, the earthing switch allow to making short circuit current and creditable mechanical interlock.

It fit with many kinds of vacuum circuit breaker such as ABB VD4, Schneider HVX, Siemens 3AE, and China VS1 ,and can also select fixed load breaker switch or vacuum contactor. And protective relay is also selectable:
