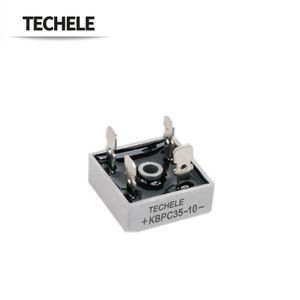

Bridge Rectifiers KBPC3516

Supplier: Wuhan Wuzheng Rectifier Co., Ltd.
Region: Hubei, China
Contact: Ms. CICI Dai
Price: $0.58 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Semiconductor:	Bridge Rectifier;	Package Type:	Surface Mount;
Bridge Rectifier:	Single Phase;	Welding Method:	Pressure Contact;
Dimensions:	Varying with Model;	Single gross weight:	0.5 KG;
Usage:	Converter/Inverter/Welder;	Structure:	Insulated module+Semiconductor chip;
Mean On-State Current:	35A;	Certification:	ISO9001:2008;
Peak Repetitive Reverse Voltage:	1600V;	Single package size:	3X3X3 cm;
Dimension:	Inch or Metric sizes for customized;	Model:	KBPC3516;
Model Number:	KBPC3516;	Brand Name:	TECHELE;
Type:	Bridge Rectifier;	Selling Units:	Single item;
Place of Origin:	Hubei China;	Application:	Inverter / Converter;
Outline:	Bridge Module;	Polarity:	Normal/Reverse for Option;

Product Description

Bridge Rectifiers KBPC3516

Bridge Rectifiers KBPC/QL/SQL Series

Bridge Rectifiers KBPC/QL/SQL Series
Leading Power Semiconductor Manufacturer
Semiconductor-Bridge Rectifiers
KBPC/QL/SQL

ISO9001, CE, UL, ROHS Certificate

------------------------------------------------------

TECHELE/WUZHENG RECTIFIER

Leading Power Semiconductor Manufacturer & export since 1970

-------------------------------------------------------------------------------------------

Single Phase Three Phase Bridge Rectifier Rectifier Bridge

KBPC5A KBPC10A KBPC15A KBPC20A KBPC25A KBPC30A KBPC35A KBPC40A KBPC50A kpbc3510

QL5A, QL20A, QL...QL50A, QL300A

rectifier bridge
Features:

Current 5-250A
Voltage 100-1600V
Miniature universal dimensions, welding technique
under the protection of vacuum and hydrogen gas
Glass passivated diode chips
Excellent force and volume ratio
High thermal conductive sealing package

Rectifier Bridge
Typical Applications:

Rectifier current
Industrial automatic control
Digital-controlled machine and remte control system

KBPC3510 & QL rectifier bridge specification characteristic:

Type	Id	IF(AV)	VRRM	IRRM	VISOL	Outline
	A	A	V	mA	V
KBPC5A-50A	5~50	2.5~17.5	100~1600	5	2500	28x28x22
QL5A-50A	5~50	2.5~25	100~1600	5	2500	32x32x24
QL5A-50A	5~50	2.5~25	100~1600	5	2500	32x60x25
QL40A	40	20	100~1600	7	2500	60x100x55
QL60A	60	30	100~1600	7	2500	60x100x55
QL100A	100	50	100~1600	7	2500	60x100x55
QL150A	150	75	100~1600	10	2500	132x145x75
QL200A	200	100	100~1600	10	2500	132x145x75
QL250A	250	125	100~1600	10	2500	132x145x75
QL300A	300	150	100~1600	10	2500	132x145x75

Three Phase Bridge Rectifier SQL Characteristics:

Type	Id		IF(AV)	VRRM	IRRM	VISOL	Outline
	A		A	V	mA	V
SQL10A		10	12	100~1600	7	2500	32x60x25
SQL20A		20	16	100~1600	7	2500	32x60x25
SQL40A		40	14	100~1600	7	2500	60x100x55
SQL50A		50	18	100~1600	7	2500	60x100x55
SQL60A		60	20	100~1600	7	2500	60x100x55
SQL100A		100	34	100~1600	7	2500	60x100x55
SQL150A		150	50	100~1600	10	2500	132x145x75
SQL200A		200	67	100~1600	10	2500	132x145x75
SQL250A		250	84	100~1600	10	2500	132x145x75
SQL300A		300	92	100~1600	10	2500	132x145x75

Product Catalogues

Company Information

Packaging & Shipping

FAQ

Q: Are you manufacturer?

A: Yes, we are manufacturer and produce diode, thyristor, power modules, bridge rectifier and heatsink with best quality and competitive price.

Q: Can I customize products as our requirement from your company?
A: Certainly, we have our own design team, they are willing to do it for you

Q: Could I put my own logo on it?
A: Sure, as long as you are willing to offer it.

Q: Could I buy 1 pc or small quantities order?
A: Of course. We support 1 pc or small quantities order, especially for new customers.

Q: How much for the sample?
A: Some samples can be for free, but shipping cost should discuss with each other.

Q: What’s the payment terms?
A: We can accept T/T, Western Union and Paypal.

Q: How long is your delivery time?
A: In general, about 6-8 working days after received your payment.
