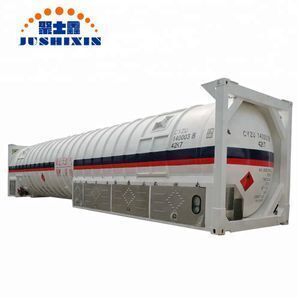

40Ft LNG/CNG/LO2/LN2/LCO2/LAR/LIN ISO Cryogenic Tank Container

Supplier: Henan Jushixin Transportation Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Maggie Suen
Price: $7000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Tank Shell for this Tank Container:	S30408 & Q345R;	Internal Dimensions(l x W x H)(mm):	12032.2352.2393mm;
Desgin pressure:	15.2Bar;	Certification:	ISO9001;
Loading Capacity for this Tank Container:	14700kgs iso lng container tank;	Supply Ability:	50 Unit/Units per Month Can delivery your ISO Storage Tank Container ON TIME;
Brand Name:	JSXT for ISO Tank Container;	Length (feet):	40';
Manhole for Tank Container:	500mm for iso lng container tank;	INSULATION OR SUN SHIELD:	Sunshield for iso lng container tank;
Model Number:	JSX2025LTC for iso lng container tank;	External Dimensions(l x W x H)(mm):	1219224382591/mm;
Design temperature:	-40~50 for iso lng container tank;	Transportation way for this ISO Tank:	Land Truck,Sea Boat,Railway;
Packaging Detail:	Nude,These ISO Storage Tank Containers will be shipped via Container Vessel,can help you save a lot of money by container vessel.However,if the ISO Tank you need is not the standard Container Tank,then can be shipped by Flat Rack or Bulk Cargo Vessel,anyway will save the cost of the container tanker for you as possible as i can.;	Capacity:	25CBM for this ISO Tank;
Port:	Shanghai,China.(Negotiable);	Type:	Tank Container;
Volume Capacity for this ISO Tank:	40400Liters iso lng container tank;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance for this ISO Storage Tank Container;
Place of Origin:	Henan China;	Name for this Tank Container:	40ft lng iso tank container;

40Ft LNG/CNG/LO2/LN2/LCO2/LAR/LIN ISO Cryogenic Tank Container

Product parameters

The functions of this series container tanker/Tank Container:
***This series tank semi trailers are suitable for the transportation 1,1,1,2-Tetrafluoroethane,LNG,LPG,CNG,GPL,LN2,LO2,LCO2,Chlorine,Ammonia,Etc. Gas.
*** The volume is under 40.4 cube meters, we can manufacture it according to your needs.

Dimension of the 20FT 20.5CBM T75 Liquified N2 Tank Container with Lloyd's CSC Certificates
Description and Specification of Commodity
Codes and regulations			IMDG-CODE. GB150-98 ASMI-VIII-1 JB/T4781-2005
UN code.			1977
Design Standards			CCS, Basis: IMDG. CSC. TIR. UIC. RID
Approval and inspection org			Lloyd's Register(EN standard)
Tank Shape			20FT
Tank Shape			Column Shape,Horizontal
Nominal Medium			20500L
Loading Medium			LNG,LCO2,LN2,LO2,LAR,LN2O,LC2H4
Gross mass(kg)			34000
Tare Weight(kg)			11050kg
Payload(kg)			22000kg
Maximum Gross Weight			34000 KG
Tolerances:			on volume 1%,on weight 2%
Stacking			192000kgs
Tare			7750 KG(Maximum tolerance 3%)
Filling ratio			95% / 85%
Max. Allowed Working Pressure			16Bar
Design Pressure			22Bar
Test Pressure			20Bar (Hydraulic Pressure test)
Corrosion Degree			0
Max. Outside Pressure(Mpa.)			0.1
Baffles of the inner vessel			Two transvers baffles
Surface treatment of the inner vessel			Pickling
Material of the inner vessel			Stainless Steel
Material of the out jacket&Frame			Low alloy steel
Surface treatment of the out jacket			Shot blast SA2-1/2"
Outer Vessel
Design Temperature(°C) of the out jacket			-20 to 50
Design pressure			-1 barg(full vacuum)
Outer Diameter			2420mm(not protruding over the frame members)
Overall length			6000mm(not protruding over the frame members)
Vacuum Test Pressure(Mpa)			0.1
External Tank thickness(mm)			6
Inner Vessel
Max. Allowed working pressure			16bar
Pressure vessel code			AD2000-Regelwerk
Test and calculation pressure			20bar
Design temperature(℃)			-196 to 50
Working Temperature(℃)			-196 to 50
Outer Diameter			2200mm
Inner Tank thickness(mm)			16
Number of baffles			2
Corrosion Degree			0
Gastight Test Pressure			14.4Bar
Type of insulation			High vacuum multi-layer
Static evaporation rate			Ln2 0.35%/d
Welding Joint Efficiency			1
Radiographic Inspection			100%X-RAY
Vacuum			≤0.1pa(Warm)
Net evaporation rate			≤0.33%/d (Ln²)(ambient condition:100kpa and 15°C
Inner End Enclosure(mm)			18
External End Enclose(mm)			8
Piping material			Stainless Steel type 340(L)
Valve types for cryogenic tanks			cryogenic valves
Safety Valve			DN25 PN2.5 DAH-25A1
Vaporator			DN25
Hose and Hose box			YES
Top inlet pipe			DN40
Bottom inlet/outlet pipe			DN40
Reflux tube			DN40
Liquid level gas phase tube			DN10
Liquid level liquid phase tube			DN10
Monitoring tube			DN10
Threaded connection for drain and fill pipes			NIT-150
Valve box			1
Guardrail of Ladder(mm)			W=400
Allowable stacking weight			192000
PBC			120NM³
DP gauge			6 inch dial(Range:0~4000mmH2O)
Pressure gauge			DV-6R Thermocouple probe
Inner tank material:			SA-240 ASME Certification
Outer vessel:			SA-516M ASME Certification
Overall Size(Frame)/LWH/mm			605824382591
ISO-cornercastings			20'x8'x8'6" ISO dimensions
Frame
The frame is of "Beam Type",consisting 8'X8'6"-frame at each end,connected to each end.Handling to be done by means of the corner castings only.The container can be secured by twist locks on rail and road vehicles complying to the relevant requirements of ISO668 Freight containers.
Insulation or Sun Shield			Sun Shield

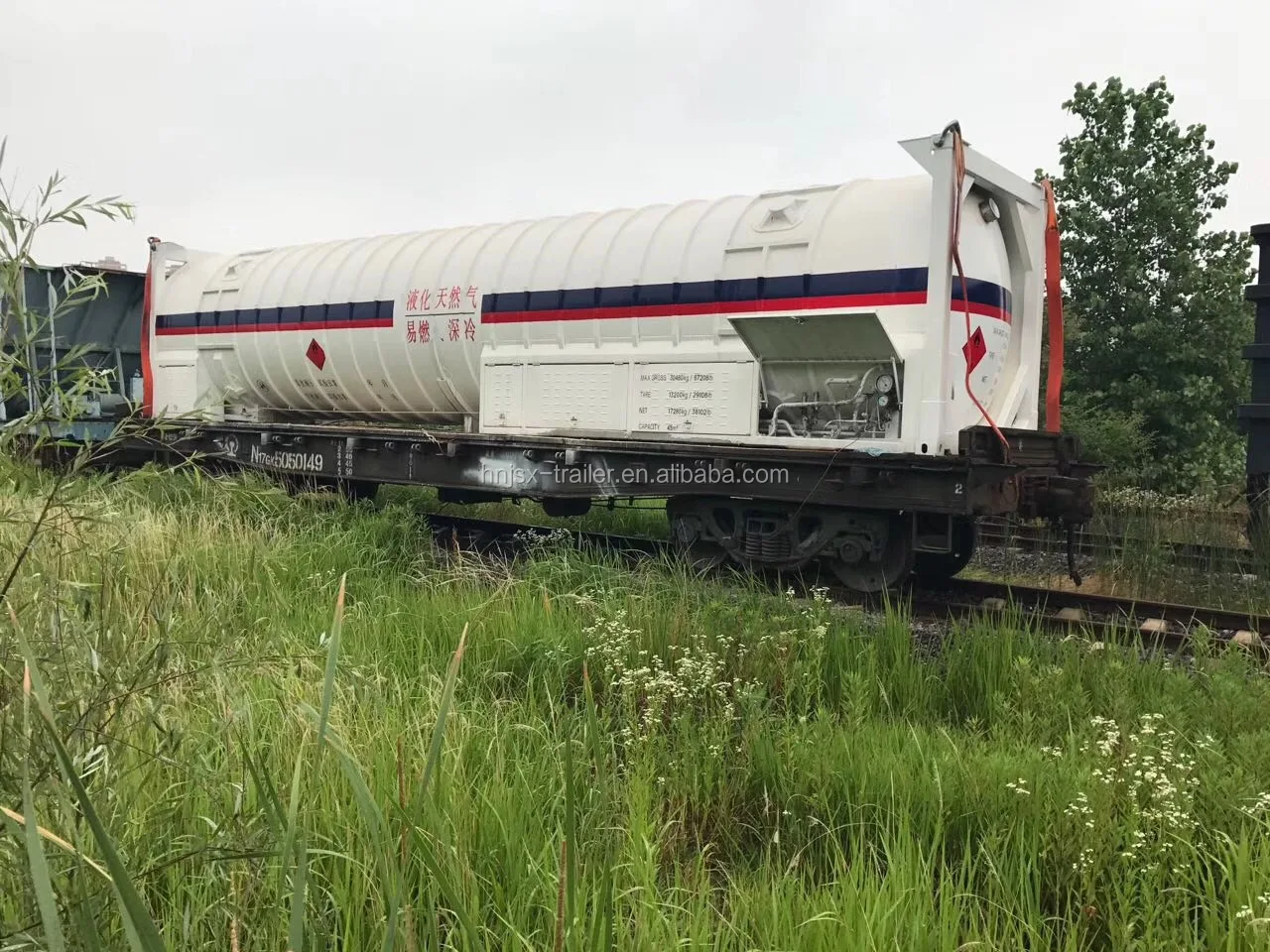

Product display

Packaging & Shipping

Packing and Shipping:

Our Services

FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted;
>>>Any Color & Logo Available;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.

The tank containers are all tested and inspected by special equipments:

Our Company

FAQ

Q: I want the Liquid Gas Tank Container with Loading&Unloading system,especially the steam heating system,can you supply?

A:Yes,the Loading&Unloading system is the option configuration,you can choose it as you want.

Q: Do you have the certificates to meet us the transportation ways of the land truck,Sea Boat and Railway?

A:Yeah,of course,but the price will be very different by different transportation ways;So kindly please let me know your exact transportation ways before the quoting;And also the certificates will be ready after the tank container passed all kinds of the testing&inspection.

Q: Do you have the stocked tank containers?

A:Yes,but the price will be higher than the normal one.

Q: Can i have the drawings of this ISO Storage tank containers?

A:Yeah,the existing simple similar drawings of the tank container for your reference only for the beginning,will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.

Q: Can i make the discharging valves at the bottom?

A:Yes,the discharging valves can be at the bottom or at the top,you can choose as your actual request.

Q: How can i pay the money without risk?

A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.

Q: Can i do your agent in our country or some district?

A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
