Custom cheap Gas or electric powered 6 passenger golf cart for sale

Supplier: Yongkang Jinghang Sightseeing Vehicle Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tom Yu
Price: $3750.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Transimission:	Shaft drive;	Fuel Type:	Gasoline;
Supply Ability:	400 Piece/Pieces per Month;	Engine:	4 Stroke;
Gear:	CVT(F-N-R);	Max. Speed:	45km/h;
Max power&Torque:	23.12HP(17KW) , 25N.m;	Seats:	5 - 6;
Port:	NINGBO OR SHANGHAI;	Engine:	300CC Single Cylinder, Vetical, 4-Stroke, water cool, Sohc-4 vavle;
Certification:	CE;	Tyre:	22 or 23inch off road tyre with alloy rim;
Max Climbing:	35%(full loaded);	Packaging Detail:	Inner with bubble box,carton box,outside with the steel frame;
Color:	Customized;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Fuel tank:	12L;

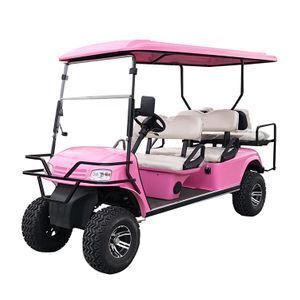

Custom cheap Gas or electric powered 6 passenger golf cart for sale

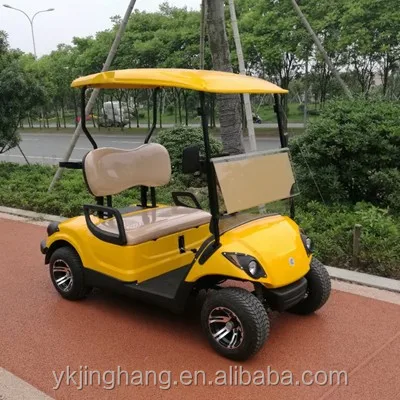

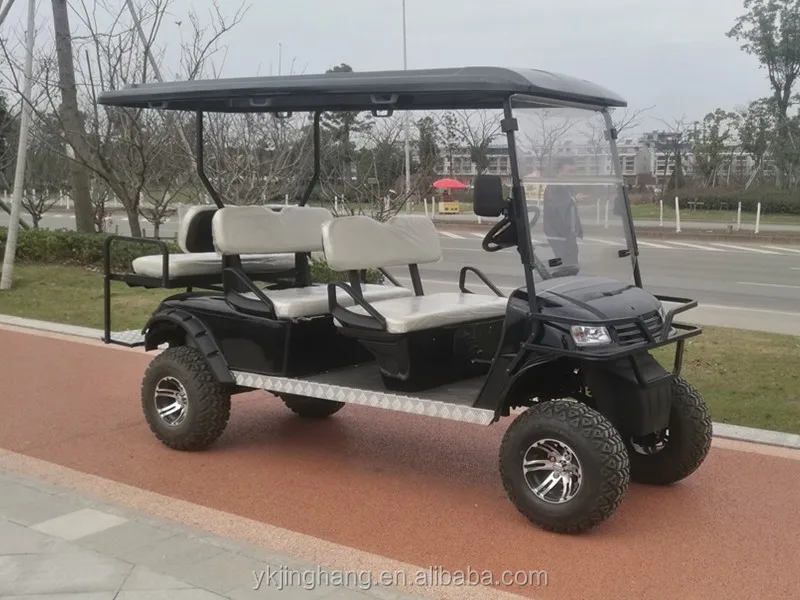

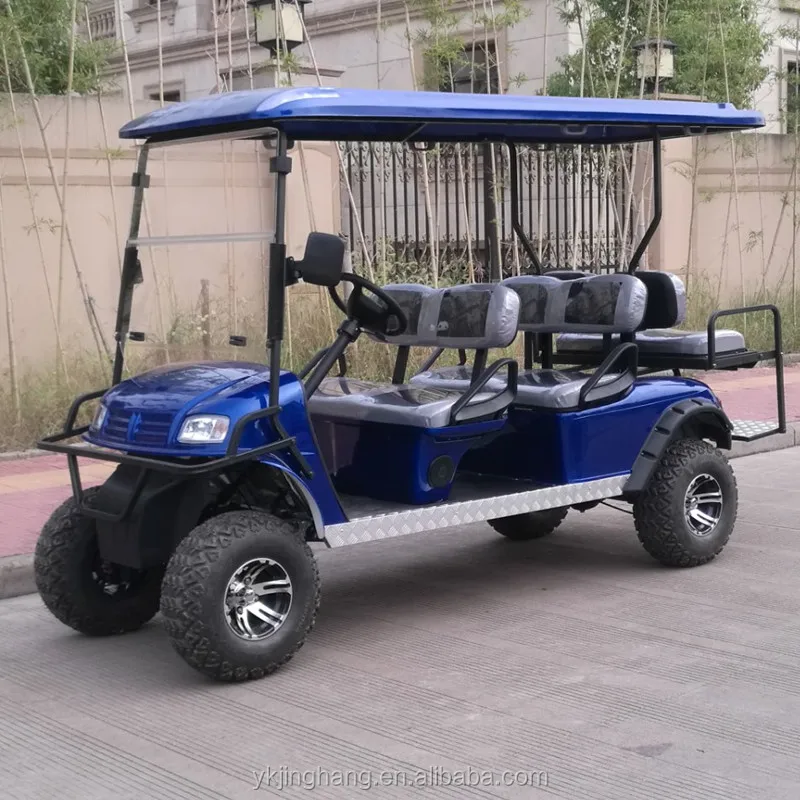

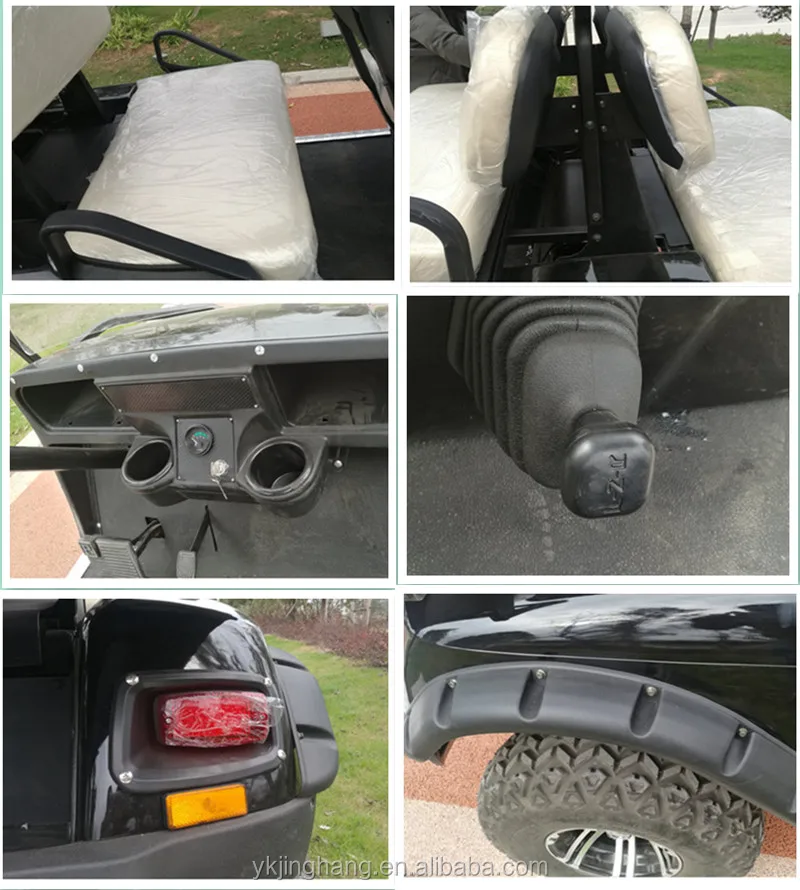

Detailed Images

Standard Specs

BATTERY POWER		GASOLINE POWER
Model no.:	JHGFO-E4-2S	Model no.:	JHGFO-EG4-2S
KEY COMPONENTS
Motor:	4kw DC or 5kw AC Motor	Engine:	300CC Single Cylinder, Vetical, 4-Stroke, water cool, Sohc-4 vavle
Controller:	Imported Curtis Controller, 275A-400A	Horse power &Torque:	23.12HP(12.5KW), 25N.m
Battery:	48v 150ah Six cells 8-volt deep cycle(Standard) Options: Maintanenece free battery	Drive Train:	Automatic, continuously variable transmission (CVT)
Charger:	100-240v intelligent pulse charge with the function to recover the battery	Fuel	12L
BODY & CHASSIS
Frame:	Welded high intense steel with double coating (galvanized frame is a option)
Body&Roof:	High compact PP plastic front and rear body cover, injected
Windshield:	Tempered glass( unfoldable), Organic glass(Foldable or unfuldable)
Cushion& Backrest:	Reborn sponge with artificial leather and plastic bottom cover (with different colors)
Floor mat:	Skidproof rubber
Dashboard:	Black plastic, with F/R switch, battery power indicator, ignition key	Black plastic,with Fuel gauge, water temperature sensor,ignition key
Beverage holders:	4 cups holders
Color:	Any color as requirements(we also accept custom colors)
STEERING & SUSPENSION
Steering:	Self-compensating rack and pinion
Suspension:	Lifted heavy duty leaf spring with dumper&spring absorber
Brake System:	Front&Rear Hydraulic brake plus pedal park brake	Front&rear hydraulic brake with hand park brake
Accelerator:	stepless speed change
Transimission:	Motor Shaft Direct Drive	Shaft drive
Rear Axle:	Differential model
Gear Selection:	F-N-R
F&R tyre:	22.5/9.5-10 inch tubless off road tyre with alloy rim, (12 or 14 inch alloy rim is options)
Start way:	Electric start with key
PERFORMANCE
Passenger	6 Person
Range (loaded):	More than 90kms	More than 300kms for each full tank.
Max.speed:	25-40km/h	45km/h
Max.climbing ability(loaded):	30%(full loaded)	40%(full loaded)
Brake Distance:	≤4M	≤4M
Curb weight:	500kgs	400kgs
Max.loading :	600kgs	600kgs
Charging time:	8-10 hours
Battery lifespan:	More than 700times charge cycles (for standard battery)
DIMENSIONS
Overall dimensions:	355012001910mm
Min ground clearance:	270mm
Wheelbase:	2490mm
F&R Tread:	840mm/985mm
Packing size:	320012001150mm
Packing:	With irom Rack(Pack with roof ,seats,steering,,dissambled)
Loading:	4units /20ft container, 12units /40GP container, 16units / 40HQ container
ELECTRIC SYSTEMS
Lights:	Head lights, night lights,tail lights,brake nights,turnning lights, the lights powered for gas power model is one 12v 12 ah dry battery.
Combination switch:	Combination swith under the steering wheel with the switchs of head light,turnning lights and horn

Packaging&Delivery

Company informations

Yongkang jinghang sightseeing vehicle co.,ltd specialized ln designing and producing gas and electric golf carts,sightseeing cars since 2002 which is one of the earliest factory in this industry in china,our factory make the frame and do the paintting by ourself, we Create gas golf cart in china in 2005 and currenty we are the only factory with the core and unique technology in producing gas golf carts,gas sightseeing cars maturely in china, most of our workers are very experienced,skilled that followed the factory for many years,we also accept many kinds OEM service.

Certifications

Our Advantages

1: Competitive factory prices, many types(like ezgo, club car and yamaha types) for your choice.

2: Professional and direct&fast factory after service supported.

3: Both gas powered and battery powered offered for your choice

4: Earliest factory in industry,experienced and skilled workers, stable quality and good craftmanship.

5: Strong production ability that enable fast and punctual delivery of your orders.

6: Many of the OEM services are acceptable as required.

FAQ

1, Is sample order availale?

Yes

2,Is Oem available?

Yes, we are factory that accpet many kind of OEM.

3,What is your warranty?

2 years for gas golf carts, one year for electric golf carts.

4, How is your delivery time?

Normally 15-30 days depending on the quantity

5,What is your main market?

North america,south america,middle east,south asia,africa,,etc.

6,What is the shipping cost?

Please tell us your destination port and quantity required.

7,How is your after sale service?

We are factory that with factory direct after sale service and dedicated people for after sale service.

8, What are your products range the exact prices?

2 4 6 8 10 seats golf carts with gas and electric power,8 11 14 23 seats sightseeing bus with gas or electric power, 2 4 6 8 12 seats classic car with gas or electric power, utility carts withg gas or electric power.

Please inquiry for the quotaitons.
