Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF details
Max Transfer Distance:6.2 miles;Optical Wave Length:1310 nm;
Data Transfer Rate:1 Gbps;Brand Name:Cisco;
Cabling Type:1000Base-LX, 1000Base-LH;Device Type:SFP (mini-GBIC) transceiver module - LC/PC single mode;
Package Type:original packing;Data Link Protocol:Gigabit Ethernet;
Selling Units:Single item;Place of Origin:Beijing China;
product name:Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF;Manufacturer:Cisco;
Single package size:8.9X12X1.2 cm;Manufacturer Part #:GLC-LH-SMD;
Products Status:Stock;Single gross weight:0.2 KG;
Enclosure Type:Plug-in module;

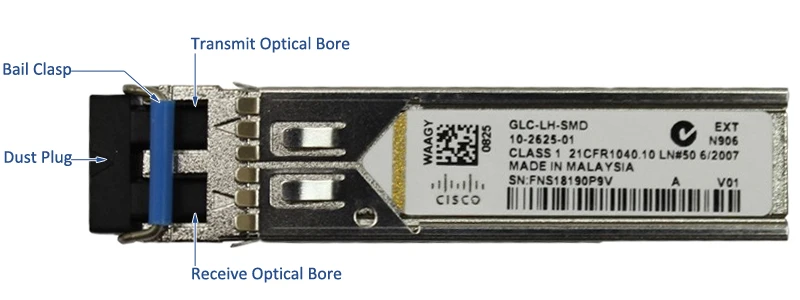

Cisco  GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers.

The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Product Description





The table provides cabling specifications for the SFPs that you install in the Gigabit Ethernet port.

Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).

SFP Port Cabling Specifications

Product

Wavelength (nm)

Fiber Type

Core Size (μm)

Modal Bandwidth (MHz* Km)***

Operating Distance (m)

1000BASE-SX

(GLC-SX-MMD )

850

MMF

62.5

160 (FDDI-grade)

220 (722 ft)

62.5

200 (OM1)

275 (902 ft)

50

400 (400/400)

500 (1,640 ft)

50

500 (OM2)

550 (1,804 ft)

50

2000 (OM3)

1000 (3281 ft)

1000BASE-LX/LH

(GLC-LH-SMD)

1310

MMF*

62.5

500

550 (1,804 ft)

50

400

550 (1,804 ft)

50

500

550 (1,804 ft)

SMF

-**

-

10,000 (32,821 ft)

1000BASE-EX

1310

SMF

-**

-

40,000 (131,234 ft)

1000BASE-ZX

(GLC-ZX-SM )

(GLC-ZX-SMD )

1550

SMF

-

-

Approximately 70 km depending on link loss

1000BASE-BX-U

1310

SMF

-**

-

10,000 (32,821 ft)

1000BASE-BX-D

1490

SMF

-**

-

10,000 (32,821 ft)
