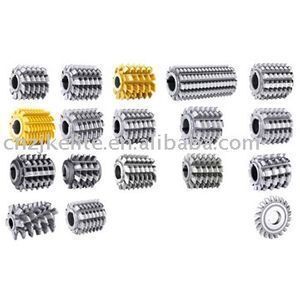

Gear hobs from M0.25 to M20 ( Standard and Non-standard)
- 5.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Usage: | Gear Hob; | Payment Terms: | L/C,T/T,Western Union; |
| Material: | HSS; | Port: | Ningbo or Shanghai; |
| Brand Name: | Kelite; | Packaging Detail: | Wooden box or carton; |
| Coating-Titanium: | Type: Cutting Saw Blade; | Module: | M0.25~20; |
| Place of Origin: | Zhejiang China (Mainland); | Machine Type: Punching Machine: | Material: HSS, M2, M2AL; |
| Delivery Detail: | Depends on the quantity; | Model Number: | Kelite-gh; |
| Supply Ability: | 5000 Piece/Pieces per Month; |
We can supply all kinds of the Gear Hobs, especially we can do the Non-standard ones for u according to ur specific requirements.
Gear hobsModules: 0.25 to 20
Pressure angle:20°
Accuracy: AA, A
Standard: GB6083-85 and JB2495-78
Enterprise Standard
| Module | External diameter | Overall length | Pore diameter |
| 1 | 50 | 40 | 22 |
| 1.25 | 50 | 40 | 22 |
| 1.5 | 55 | 45 | 22 |
| 1.75 | 55 | 45 | 22 |
| 2 | 55 | 50 | 22 |
| 2.25 | 60 | 50 | 22 |
| 2.5 | 65 | 55 | 22 |
| 2.75 | 65 | 55 | 22 |
| 3 | 70 | 60 | 27 |
| 3.25 | 75 | 65 | 27 |
| 3.5 | 75 | 70 | 27 |
| 3.75 | 80 | 70 | 27 |
| 4 | 80 | 75 | 27 |
| 4.5 | 85 | 85 | 27 |
| 5 | 90 | 90 | 27 |
| 5.5 | 100 | 95 | 32 |
| 6 | 105 | 100 | 32 |
| 6.5 | 110 | 100 | 32 |
| 7 | 115 | 105 | 32 |
| 8 | 125 | 115 | 32 |
| 9 | 140 | 130 | 40 |
| 10 | 150 | 135 | 40 |
