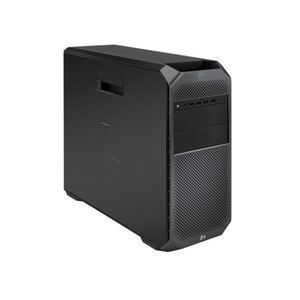

Stock and original Intel Core TM i9-7960X 2.8 2666 16C HP Z4 G4 workstation

HP Data Sheet

AMS HP Z4 G4 Workstation Datasheet

Operating system

Windows 10 Pro 64

Processor

Intel® CoreTM i9-7960X 2.8 2666 16C

Number of processors

1

Graphics

No Integrated graphics

Memory

8 GB DDR4-2666 ECC SDRAM (1 x 8 GB)

Memory slots

8 DIMM

Hard drive

1 TB 7200 rpm SATA

Optical drive

SATA DVD-Writer

External I/O Ports

1 headset connector; 4 USB 3.1 (1 charging)

Front

Front (Premium version)

Rear

1 headset connector; 2 USB 3.1 Gen 2 Type-C™; 2 USB 3.1 Gen1 (1 charging)

1 audio-in; 1 audio-out; 1 PS/2 keyboard port; 1 PS/2 mouse port; 1 serial; 2 RJ-45 (1 GbE); 6 USB 3.1 Gen 1

Expansion slots

2 PCIe 3 x4; 2 PCIe 3 x4, 1 M.2 PCIe 3 x4, 1 PCIe x8, 2 PCIe x16 (for Intel® Core™ i9-X configurations); 2 PCIe 3 x4, 1 M.2 PCIe 3 x4, 1 PCIe x8 (mechanical only), 1 PCIe x16 (x8 electrical), 1 PCIe x16 (for Intel® Core™ i7-X configurations)

Slots 2 and 4: PCH with open-ended connector. Slot 5: CPU with open-ended connector. M.2 Slots: CPU up to 80 mm storage devices.

HPE Z4 G4 Intel® Xeon® W-2195 2.3 2666 18C workstation

HPE Z4 G4 Intel® Xeon® W-2175 2.5 2666 14C workstation

HPE Z4 G4 Intel® Xeon® W-2155 3.3 2666 10C workstation

HPE Z4 G4 Intel® Xeon® W-2145 3.7 2666 8C workstation

HPE Z4 G4 Intel® Xeon® W-2135 3.7 2666 6C workstation

HPE Z4 G4 Intel® Xeon® W-2133 3.6 2666 6C workstation

HPE Z4 G4 Intel® Xeon® W-2125 4.0 2666 4C workstation

HPE Z4 G4 Intel® Xeon® W-2123 3.6 2666 4C workstation

HPE Z4 G4 Intel® Xeon® W-2104 3.2 2400 4C workstation

HPE Z4 G4 Intel® Xeon® W-2102 2.9 2400 4C workstation

HPE Z4 G4 Intel® CoreTM i9-7980XE 2.6 2666 18C workstation

HPE Z4 G4 Intel® CoreTM i9-7960X 2.8 2666 16C workstation

HPE Z4 G4 Intel® CoreTM i9-7940X 3.1 2666 14C workstation

HPE Z4 G4 Intel® CoreTM i9-7920X 2.9 2666 12C workstation

HPE Z4 G4 Intel® CoreTM i9-7900X 3.3 2666 10C workstation

HPE Z4 G4 Intel® CoreTM i7-7820X 3.6 2666 8C workstation
