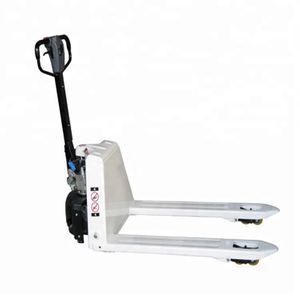

2000kg Hydraulic Powered Electric Hand Pallet Truck

Supplier: Guangzhou Hanmoke Mechanical Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Howei Dai
Price: $1172.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Lifting height:	115mm;	Fork size:	1150*150mm;
Outside fork width:	560/685mm;	Lift Drive / Actuation:	Electric Motor;
Turning radius:	1380mm;	Place of Origin:	Guangdong China;
Delivery Detail:	In Stock;	Model Number:	HEPT20-20EHJ;
Travel motor:	0.65kW;	Travel speed(w.o.load/w.load):	4/3.5km/h;
Port:	Guangzhou;	Power source:	DC 24V / 30Ah;
Lowered fork height:	85mm;	Load capacity:	2000kg;
Packaging Detail:	Standard export packing or as per your request;	Net weight(w.battery):	145kg;
Brand Name:	HANMOKE;	Supply Ability:	500 Unit/Units per Month;
Payment Terms:	L/C,T/T,Western Union;

Product Description

Hydraulic Electric Hand Pallet Truck

Our Mini electric hand pallet truck provides a quick, easy, fully-powered way to move up to 2,000kg. around a store, factory, warehouse, garage or other area.

Specifications:

Model			HEPT20-20EHJ
Load capacity	Q	kg	2000
Lifting height	h3	mm	115
Max. fork height		mm	200
Min. fork height	h13	mm	85
Fork dimensions	l/e/s	mm	1150/150/55
Overall fork width	b5	mm	560 / 685
Overall length	L1	mm	1580
Turning radius - ouside	Wa	mm	1380
Travel speed (w. load)		km/h	3.5
Travel speed (w.o. load)		km/h	4.0
Gradeability (w. load/w.o. load)		%	2/6
Power source		V/Ah	24/30
Traction motor		kW	0.65
Battery charger		V/A	24/15
Net weight		kg	145

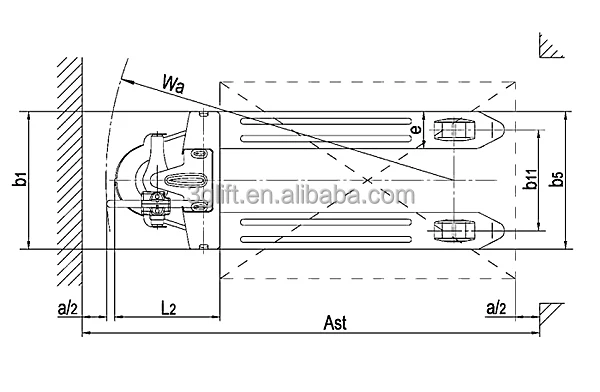

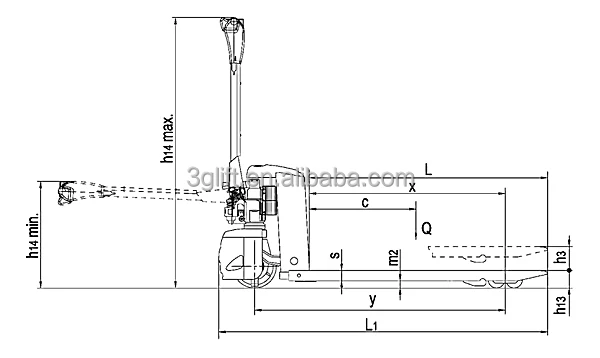

Measurements:

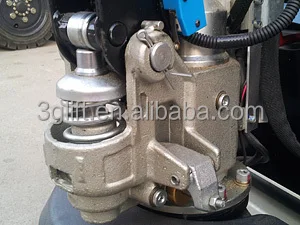

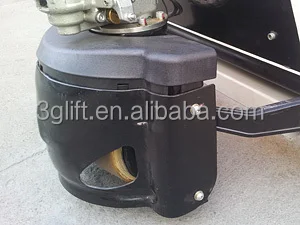

Detailed Images

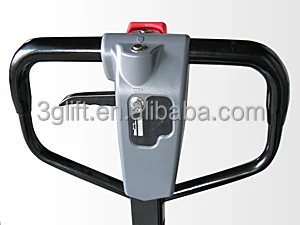

• Multifunctional control handle designed for simultaneous operation of all functions with one hand.

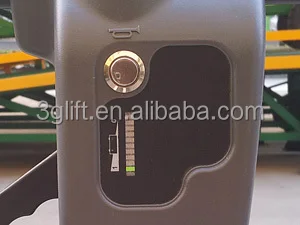

• Built-in battery level gauge and Key-operated On/Off control for safety and security.

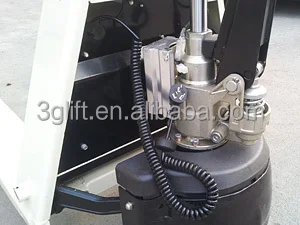

• High-torque DC drive handle heavy-duty jobs.

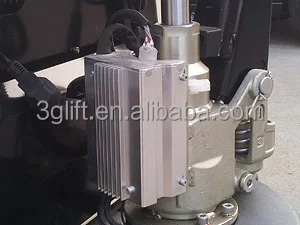

• Use stable CUTIS electronic control system.

• Integrate hydraulic pump features high quality seals.

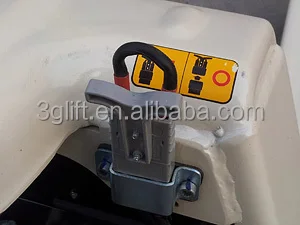

• Safety features include a power cut switch.

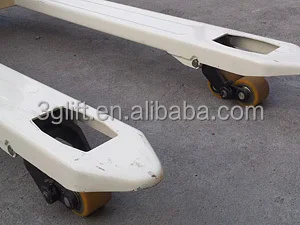

• Robust chassis and forks manufactured from steel (with epoxy paint finish).

• Built-in battery charger for rapid charging operation.

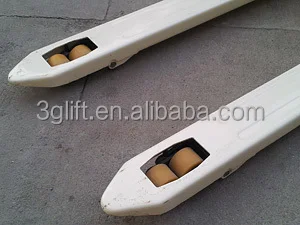

• Smooth rolling Poly-on-Steel steer and dual load wheels for easy maneuverability.

• Standard model available (2000kg.capacity, with stand-on platform).

Our Services

Warranty:

With more than 10 years experience in manufacturing and service,we can help you to repair all of the malfunctions.
The warranty period of all the products is 12 Months.We will send you new parts and complete electrical/mechanical/hydraulic diagrams for free.We can also make videos for you if necessary.

Options:

• Optional European/American Standard Battery Charger: AC 110-220V / 50-60Hz,1-Phase.
